- Outlander 800R EFI, XXC, 2011
07- Front Suspension

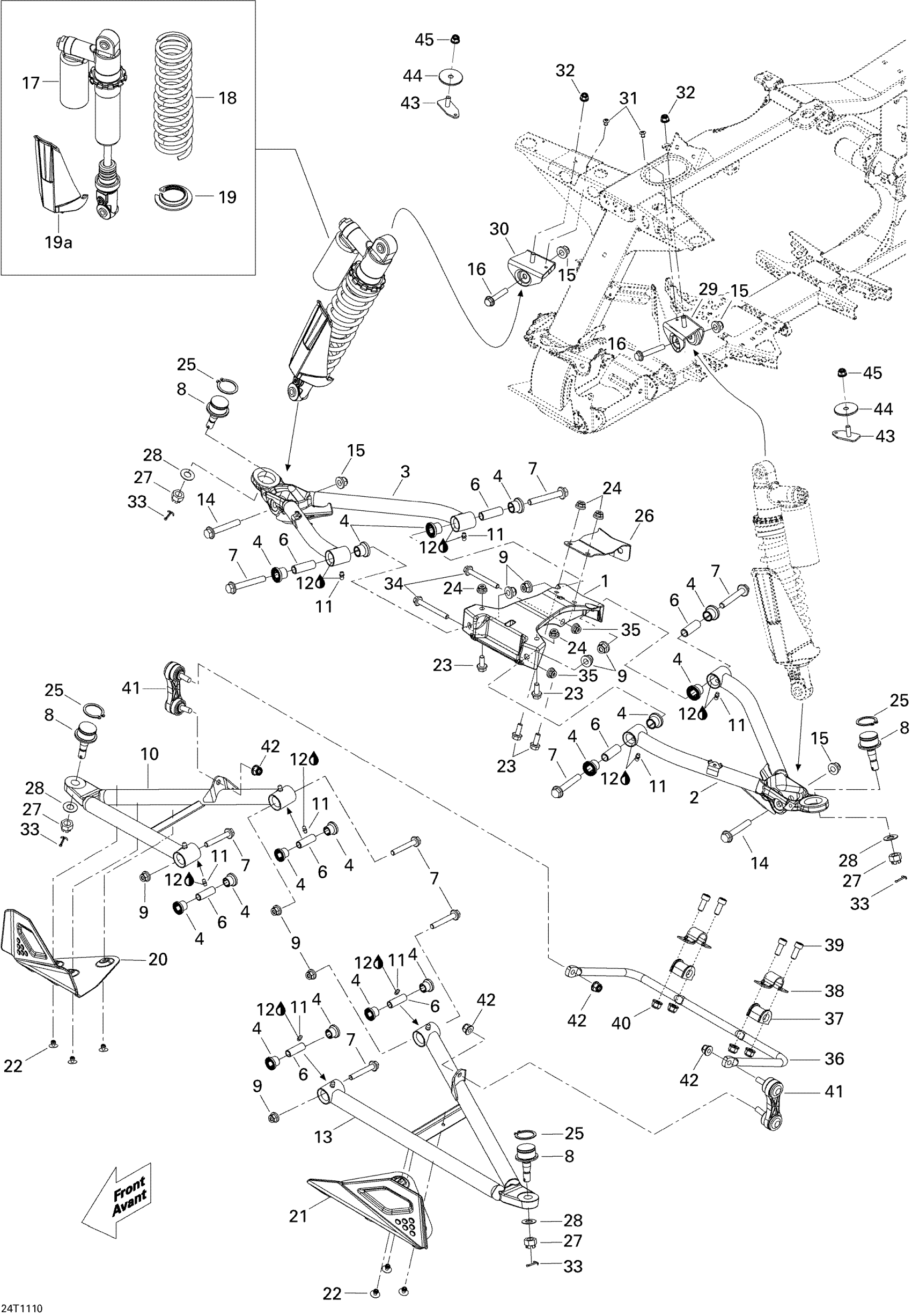

Can-Am Outlander 800R EFI, XXC, 2011 07- Front Suspension Diagram
#
1
Upper Arm Bracket
706201360
Unavailable
2
LH PAINT UPPER ARM - Call your local BRP dealership
706201209
Unavailable
3
RH PAINT UPPER ARM - Call your local BRP dealership
706201212
Unavailable
4
Bushing
706200181
Unavailable
6
Sleeve
706201587
Unavailable
7
Hex. Flange Screw M10 X 70
207607046
Unavailable
8
Ball Joint
706200653
Unavailable
9
Hex. Flange Elastic Nut M10
233201436
Unavailable
10
ARM_SUSPENSION RH ECOAT - Call your local BRP dealership
706201047
Unavailable
11
Grease Fitting
408200700
Unavailable
12
Synthetic Grease, 400 G
293550010
Unavailable
13
ARM_SUSPENSION LH ECOAT - Call your local BRP dealership
706201045
Unavailable
14
Hex. Flange Screw M10 X 65
207606536
Unavailable
15
Hex. Flange Elastic Nut M10
233201436
Unavailable
16
Hex. Flange Screw M10 X 55
207605544
Unavailable
17
FRONT SHOCK - Call your local BRP dealership
706200672
Unavailable
18
SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership
706200827
Unavailable
19
Spring Stopper
706000567
Unavailable
19a
ROD PROTECTOR - Call your local BRP dealership
706201286
Unavailable
20
RH Protector
706201670
Unavailable
21
LH Protector
706201669
Unavailable
22
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
23
Hex. Flange Screw M8 X 20
207682044
Unavailable
24
Hex. Flange Elastic Nut M8
233281414
Unavailable
25
Circlip 32 mm
293370009
Unavailable
26
BRACKET - Call your local BRP dealership
706201014
Unavailable
27
Nut M12
250100099
Unavailable
28
Hardened Washer
706200281
Unavailable
29
LH UPPER ARM BRACKET - Call your local BRP dealership
706201039
Unavailable
30
RH UPPER ARM BRACKET - Call your local BRP dealership
706201040
Unavailable
31
Pop Rivet 3/16"
390402300
Unavailable
32
Hex. Elastic Flange Nut M8
233281416
Unavailable
33
Cotter Pin
211400017
Unavailable
34
Hex. Flange Screw M8 X 70
207687044
Unavailable
35
Hex. Flange Elastic Nut M8
233281414
Unavailable
36
SWAY BAR - Call your local BRP dealership
706200777
Unavailable
37
BUSHING - Call your local BRP dealership
706201049
Unavailable
38
CLAMP - Call your local BRP dealership
506095800
Unavailable
39
Socket Head Screw M8 X 20
205082044
Unavailable
40
Hex. Flange Elastic Nut M8
233281414
Unavailable
41
BALL JOINT - Call your local BRP dealership
706201077
Unavailable
42
Hex. Flange Elastic Nut M8
233281414
Unavailable
43
Paint Upper Bracket
706201226
Unavailable
44
SPACER - Call your local BRP dealership
706200724
Unavailable
45
Hex. Elastic Flange Nut M8
233281416
Unavailable
