01- Cooling System

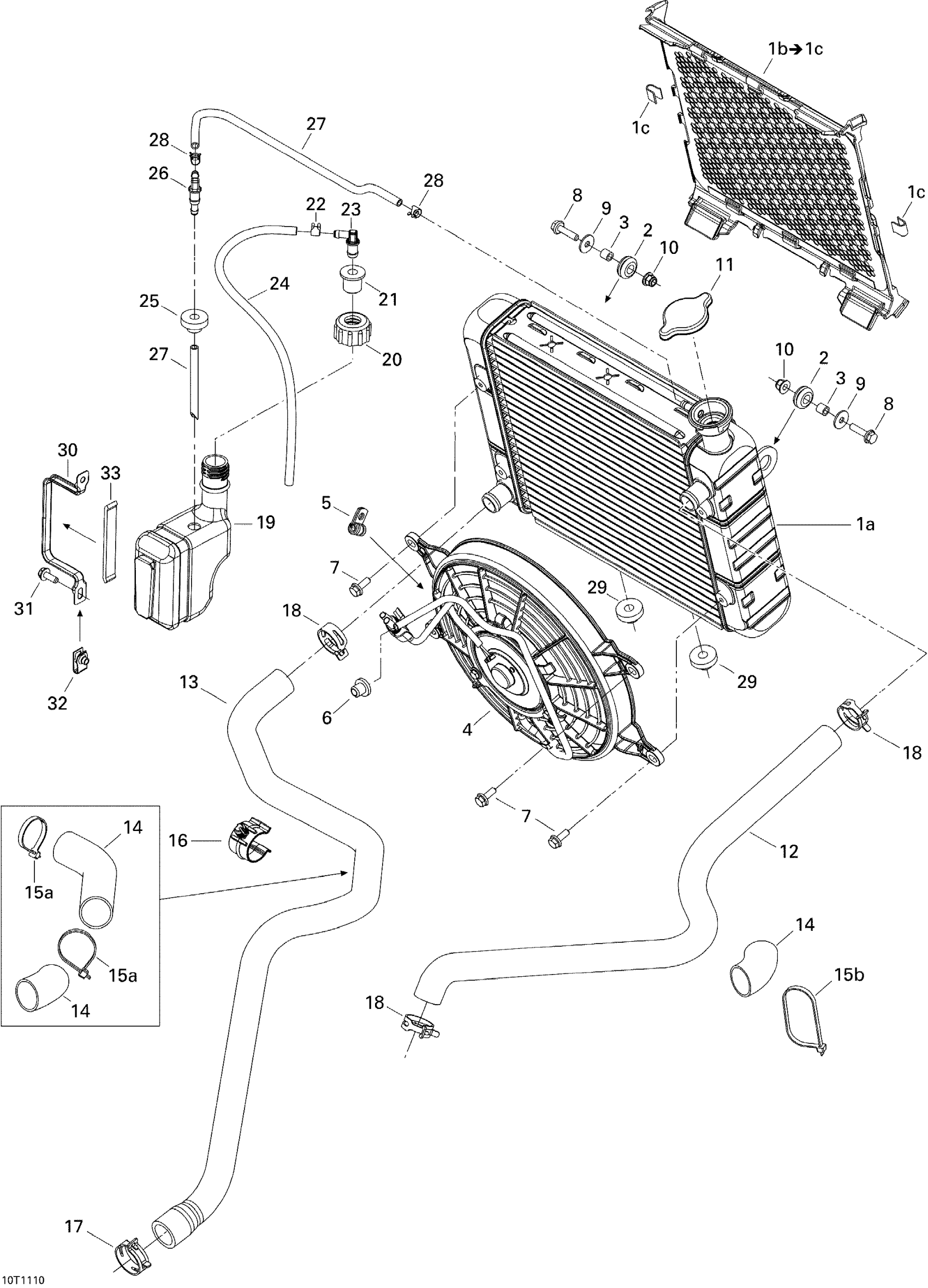

Can-Am Outlander 800R EFI, XXC, 2011 01- Cooling System Diagram
#
1a
RADIATOR - Call your local BRP dealership
709200410
Unavailable
1b
RADIATOR PROTECTOR - Call your local BRP dealership | Includes 34, 35
709200187
Unavailable
1c
Clip
414479100
Unavailable
2
Grommet
709000582
Unavailable
3
Bushing
293900105
Unavailable
4
Fan Ass'y
709200371
Unavailable
5
Clamp
293650256
Unavailable
6
Grommet
293720029
Unavailable
7
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
8
Hex. Flange Screw M6 X 25
207662544
Unavailable
9
Flat Washer
250200082
Unavailable
10
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
11
Radiator Pressure Cap
709200207
Unavailable
12
INLET HOSE - Call your local BRP dealership
709200182
Unavailable
13
HOSE OUTLET - Call your local BRP dealership
709200246
Unavailable
14
Tubing 35 MM 1000MM Long
219704428
Unavailable
15a
Tie-Rap 180 mm
414115200
Unavailable
15b
Tie Wrap 368 mm
293750008
Unavailable
16
Retainer
275500590
Unavailable
17
Norma Spring Clamp
293650108
Unavailable
18
Norma Spring Clamp
293650109
Unavailable
19
COOLANT TANK - Call your local BRP dealership
709200099
Unavailable
20
Cap
709200586
Unavailable
21
Grommet
293830136
Unavailable
22
Spring Clamp
414554800
Unavailable
23
Male Connector
414580700
Unavailable
24
Polyurethane Hose 10000Mm Long
219704410
Unavailable
25
Grommet
709200285
Unavailable
26
Elbow Male Connector
414580600
Unavailable
27
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
28
Spring Clamp
414554800
Unavailable
29
Grommet
709200285
Unavailable
30
TANK ANCHOR - Call your local BRP dealership
709200080
Unavailable
31
Hex. Flange Screw M6 X 16
210261650
Unavailable
32
Panel Nut M6 X 1.0
250100198
Unavailable
33
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
