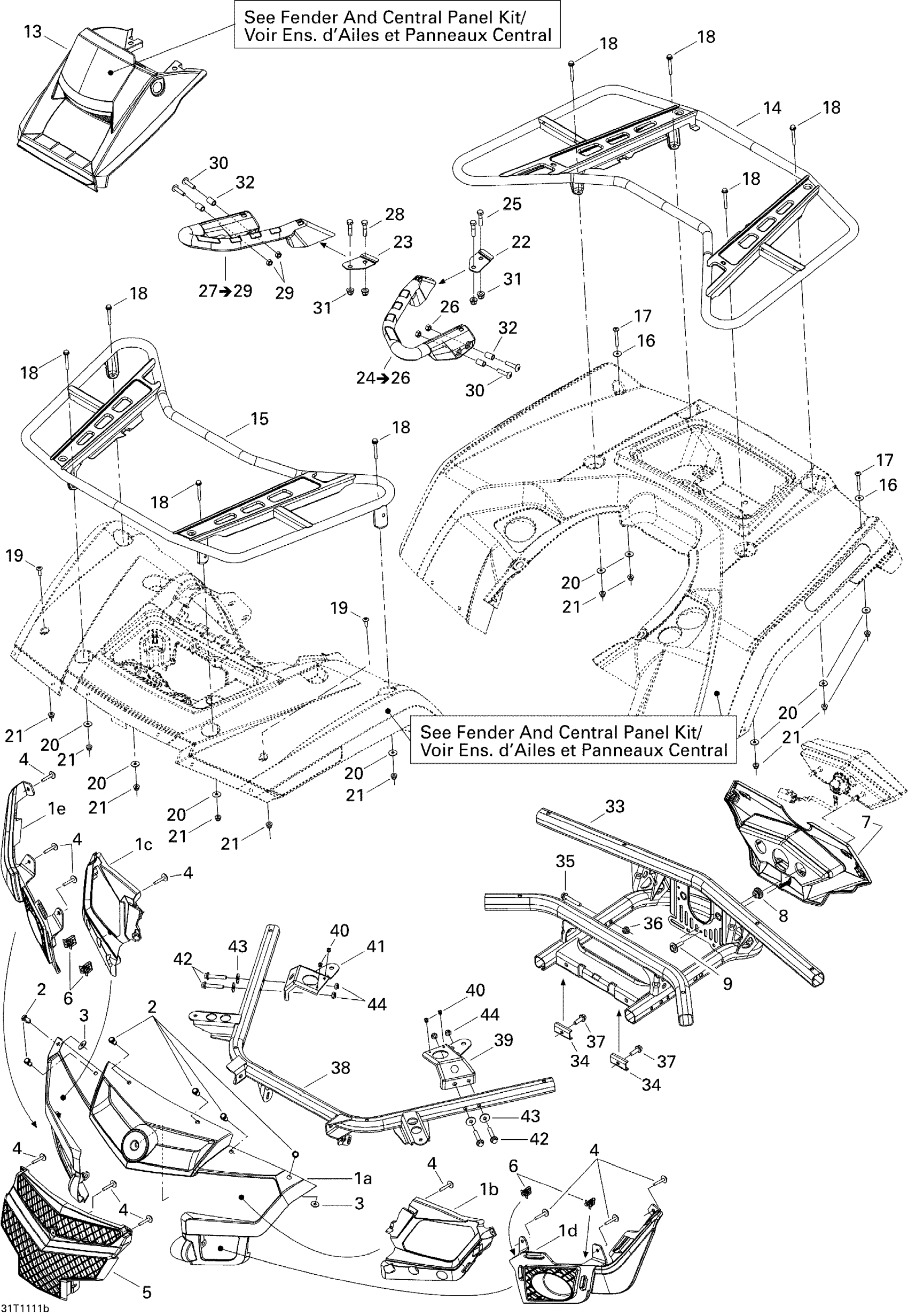

Can-Am Outlander 800R EFI, XMR, 2011 09- Body And Accessories 2 Diagram

#

Description
Price

1a

BLACK FRONT FASCIA - Call your local BRP dealership | Black

705003077

Unavailable

1b

LH Head Lamp Support

705002825

Unavailable

1c

RH Head Lamp Support

705002826

Unavailable

1d

LH LOWER FRONT FACIA - Call your local BRP dealership

705002780

Unavailable

1e

RH LOWER FRONT FACIA - Call your local BRP dealership

705002781

Unavailable

2

Tuflok Plastic Rivet

293150230

Unavailable

3

Washer

506151252

Unavailable

4

Plastite Screw Type K-40, M4 X 25

250000101

Unavailable

5

UPPER GRILL - Call your local BRP dealership

705002779

Unavailable

6

Edge Clip

517302785

Unavailable

7

Rear Facia

705003840

Unavailable

8

Stopper Rubber

705014429

Unavailable

9

Screw M4 X 16

250000725

Unavailable

13

DASHBOARD - Call your local BRP dealership

705004342

Unavailable

14

Rear Luggage Rack

705002617

Unavailable

15

Front Luggage Rack

705002616

Unavailable

16

Flat Washer

250200040

Unavailable

17

Torx Truss Screw M6 X 50

250000749

Unavailable

18

Hex. Screw M6 X 55

207065544

Unavailable

19

Torx Screw M6 x 25

250000284

Unavailable

20

Flat Washer

224061201

Unavailable

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

22

LH FIXATION PLATE - Call your local BRP dealership

705002762

Unavailable

23

RH FIXATION PLATE - Call your local BRP dealership

705002760

Unavailable

24

LH HANDLE - Call your local BRP dealership | Includes 24 to 26

705002700

Unavailable

25

Hex. Screw M8 X 35

207083544

Unavailable

26

HEX. NUT - Call your local BRP dealership

232081494

Unavailable

27

RH HANDLE - Call your local BRP dealership | Includes 27 to 29

705002699

Unavailable

28

Hex. Screw M8 X 35

207083544

Unavailable

29

HEX. NUT - Call your local BRP dealership

232081494

Unavailable

30

TORX SCREW M8 X 35 - Call your local BRP dealership | Max

250000441

Unavailable

31

Hex. Flange Elastic Nut M8

233281414

Unavailable

32

Bushing

705002153

Unavailable

33

Rear Support

705003656

Unavailable

34

U Reinforcement

705003647

Unavailable

35

Hex. Flange Screw M8 X 50

207685044

Unavailable

36

Hex. Flange Elastic Nut M8

233281414

Unavailable

37

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

Unavailable

38

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

39

LH ANCHOR PLATE - Call your local BRP dealership

705002995

Unavailable

40

Pop Rivet 3/16"

390402300

Unavailable

41

RH Anchor Plate

705002997

Unavailable

42

Hex. Flange Screw M8 X 45

207684544

Unavailable

43

Flat Washer 8 mm

234082410

Unavailable

44

Hex. Elastic Stop Nut M8

232581414

Unavailable
