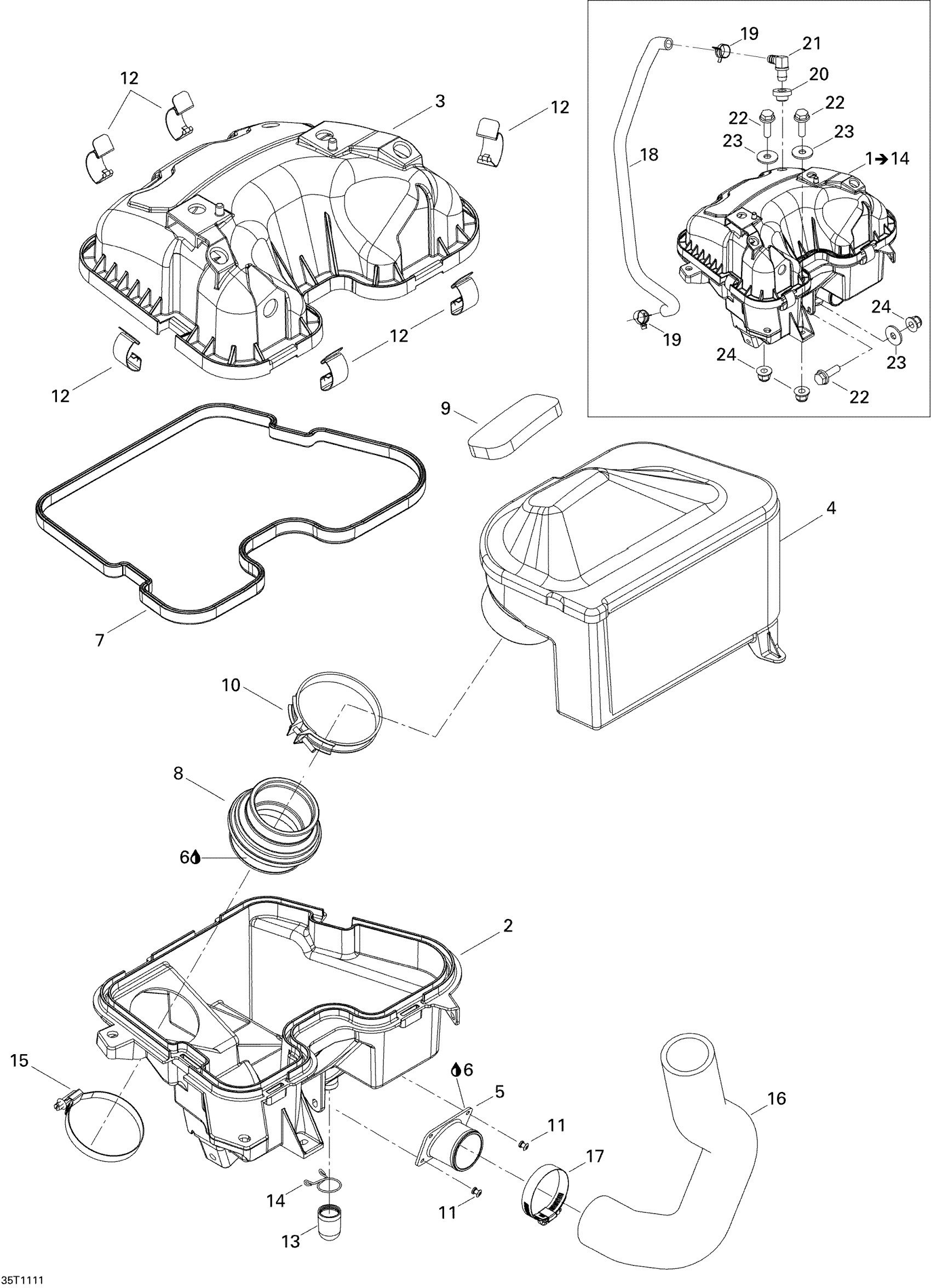

Can-Am Outlander 800R EFI, XMR, 2011 Air Intake Silencer Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

INTAKE SILENCER - Call your local BRP dealership

707800390

Unavailable

3

INTAKE SILENCER COVER - Call your local BRP dealership

707800400

Unavailable

4

Air Filter

707800288

$52.99

5

FRONT INTAKE ADAPTOR - Call your local BRP dealership

707800391

Unavailable

6

Loctite 5910, 300 ml

293800081

$57.99

7

Oil Seal

707800197

$19.99

8

INTAKE ADAPTOR - Call your local BRP dealership

707800289

Unavailable

9

FOAM - Call your local BRP dealership

707800304

Unavailable

10

Norma Clamp

293650091

$11.12

11

Not Available As Spare Part - Friction Washer

Unavailable

12

COVER BRACKET - Call your local BRP dealership

707800231

Unavailable

13

Drain Tube

707800080

$8.29

14

Retainer Clip

707800278

$13.99

15

Norma Clamp

293650091

$11.12

16

VENT HOSE - Call your local BRP dealership

707800392

Unavailable

17

Tridon Clamp

293650035

$7.29

18

VENT HOSE - Call your local BRP dealership

707800428

Unavailable

19

Norma Clamp

293650110

$4.54

20

Grommet | Europe

707800347

$10.49

21

Elbow Fitting

414523600

$4.86

22

Hex. Flange Screw M6 X 25

207662544

$0.64

23

Flat Washer

250200082

$0.42

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
