Description

Price

1

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 to 1088

710002127

Unavailable

188

Tubing 12 mm

409902000

Unavailable

196

Tie Wrap 142 mm

293750002

$1.25

253

Tubing 6 Mm 3000Mm Long

219704425

$13.75

254

Was 409901700 Tubing (9 mm)

219704399

$84.99

255

Was 409901800 Tubing (13 mm)

219704400

$14.49

256

Tubing 16 Mm 1000Mm Long

219704408

$7.49

257

Was 409901600 Tubing 19mm

219704398

$95.99

260

Was 515175319 Tubing 22 mm

219704423

$14.99

301

Diode

409012700

$11.12

641

Male Housing, 2 Circuits

710000667

$8.32

666

Little Fuse, 5 Amperes

710000742

$8.79

667

Little Fuse, 7.5 Amperes

710000743

$8.49

670

Little Fuse, 20 Amperes

710000746

$8.49

672

Diode

710000748

$11.12

769

Bus Bar

278002165

$8.79

778

Bus Bar

278002165

$8.79

889

Seal

710001233

$3.19

890

Terminal

710001229

$3.19

899

Relay, 30 AMP | Obsolete. ATV order 515176774

278002168

Unavailable

983

FUSE LOGO - Call your local BRP dealership

710001567

Unavailable

1002

Terminal

710001630

$2.09

B

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

B

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

B

SEAL - Call your local BRP dealership

515175886

Unavailable

B

Latch

515175883

$9.12

B

LOCK - Call your local BRP dealership

515175884

Unavailable

B

COVER - Call your local BRP dealership

515175885

Unavailable

BD

Female Terminal

409012100

$4.55

BD

Seal

409012300

$4.54

BD

Female Housing, 6 Circuits

710000081

$8.79

BD

Cap

710000840

$5.89

BN1

Terminal

710000913

$5.61

BN2

Terminal

710000913

$5.61

BP

Terminal

710000913

$5.61

CA

HOUSING - Call your local BRP dealership

710001634

Unavailable

CA

LOCK - Call your local BRP dealership

710001633

Unavailable

CA

Terminal Joint

710001905

$2.09

CA

Terminal

710001906

$2.54

CC

Female Terminal

710000274

$9.59

CC

Lock

710000848

$3.19

CC

Male Housing, 6 Circuits

710000849

$9.69

CI

Plug

515175812

$2.19

CI

Female Housing, 24 Circuits

515175801

$9.59

CI

Retainer Block

515175802

$11.49

CI

Wire Seal

515175803

$2.99

CI

Female Terminal

515175806

$0.99

CI

Female Housing

710000399

$16.49

CI

Female Terminal

710001131

$8.89

CV

Male Terminal

278000631

$4.39

CV

Male Lock, 3 Circuits

409207600

$3.19

CV

Male Housing

515175666

$15.49

DB

Sealing Cap

293000052

$3.19

DB

Male Wedge, 6 Circuits

515175678

$5.39

DB

Female Terminal

278001665

$4.55

DB

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

DC1

Female Terminal

710000038

$4.55

DC2

Female Terminal

710000038

$4.55

DC3

Female Terminal

515175231

$4.39

DC3

Female Housing, 2 Circuits

515175658

$16.18

DC3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

DPS-1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

DPS-1

Housing

710001161

$11.12

DPS-1

Lock

710001162

$3.19

DPS-1

Wire Seal

710001163

$7.69

DPS-1

Female Terminal

710001164

$8.89

DPS-1

Cap

710001114

$18.49

DPS-1

Cap

710001225

$9.19

DPS-2

Fuse Holder

278001325

$8.79

DPS-2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

DPS-2

Female Terminal

710000357

$7.69

DPS-3

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

DPS-3

HOUSING - Call your local BRP dealership

710001315

Unavailable

DPS-3

Wire Seal

710001159

$6.35

DPS-3

Female Terminal

710001160

$6.35

DPS-3

Lock

710001323

$7.55

FP

Female Terminal

278001014

$3.28

FP

Female Housing, 4 Circuits

409209700

$16.18

FP

Wire Seal

278001013

$3.28

FRR

Female Terminal

515175231

$4.39

FRR

Female Housing, 2 Circuits

515175658

$16.18

FRR

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FT

Male Terminal

409004300

$5.61

FT

Female Housing, 2 Circuits

278000217

$9.59

FT

Wire Seal

278000218

$4.39

FT

Clip

710000992

$4.29

HIC

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

HIC

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

HIC

Female Terminal

278001665

$4.55

MD

Seal

409012300

$4.54

MD

Male Housing, 4 Circuits

710000329

$15.36

MD

Female Terminal

710000335

$2.29

MD

Cap

710000840

$5.89

MG1

Male Terminal

409011300

$5.93

MG1

Seal

409012300

$4.54

MG1

Wire Seal

710000402

$4.55

MG1

Male Terminal Housing, 6 Circuits

710000835

$17.04

MG1

Cap

710000840

$5.89

MG2

Female Terminal

409012100

$4.55

MG2

Seal

409012300

$4.54

MG2

Female Housing, 6 Circuits

710000081

$8.79

MG2

Wire Seal

710000402

$4.55

PD

Female Terminal

278001014

$3.28

PD

Female Housing, 3 Circuits

409209600

$35.99

PD

Wire Seal

278001013

$3.28

PF1

Wire Seal

278000999

$3.19

PF1

Seal

415128501

$1.89

PF1

Fuse Box Base Ass´y

415129856

$50.99

PF1

Fuse Puller

710000781

$8.09

PF1

Female Terminal

710000836

$5.61

PF1

Female Terminal

710000837

$5.39

PF1

Cap

710000840

$5.89

PF1

Fuse Cover

710001026

$21.99

PF1

Foam

278002172

$5.89

PF2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

PF2

PROTECTOR CAP - Call your local BRP dealership

710000496

Unavailable

PF2

Terminal

710000913

$5.61

PF2

LOCK - Call your local BRP dealership

710001633

Unavailable

PF2

Terminal

710001636

$3.19

PF2

SEAL - Call your local BRP dealership

710001637

Unavailable

PF2

Hex. Flange Elastic Nut M6

233261494

$1.58

PF2

Terminal Joint

710001905

$2.09

PG

Female Terminal

278001014

$3.28

PG

Female Housing, 3 Circuits

409209600

$35.99

PG

Wire Seal

278001013

$3.28

PR

Female Terminal

515175231

$4.39

PR

Female Housing, 3 Circuits

515175495

$16.18

PR

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

RD1

Female Terminal

710000877

$9.12

RD1

Female Housing, 3 Circuits

710000879

$25.99

RD1

Seal

710000881

$17.99

RD1

Cap

710000882

$11.49

RD2

Female Terminal

710000877

$9.12

RD2

Housing, 3 Circuits

710000880

$21.99

RD2

Seal

710000881

$17.99

SS1

Female Terminal

409010300

$4.39

SS2

Female Terminal

409010300

$4.39

SW1

Insulated Sheath

278001007

$3.58

SW1

Female Terminal

710000421

$6.11

SW2

Insulated Sheath

278001008

$3.28

SW2

Female Terminal

278002261

$7.55

SW4

Open Barrel

278000992

$2.21

SW4

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

SWRC

Female Terminal

278000223

$3.19

SWRC

Male Housing, 3 Circuits

278000273

$9.59

SWRC

Wire Seal

710000504

$4.39

SWW

Female Terminal

278000223

$3.19

SWW

Male Housing, 3 Circuits

278000273

$9.59

SWW

Wire Seal

710000504

$4.39

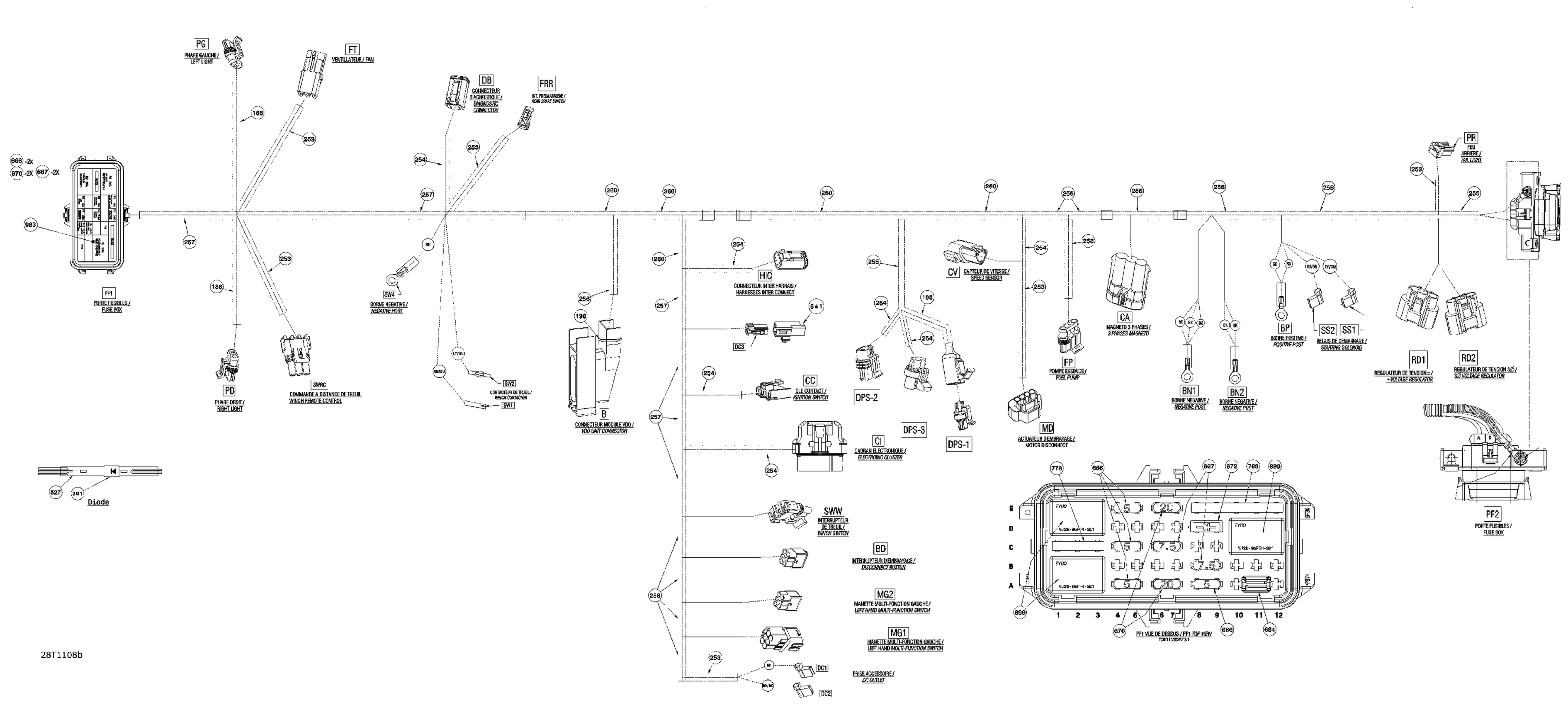

Can-Am Outlander 800R EFI, 2011 Main Harness XT, XTP Diagram
