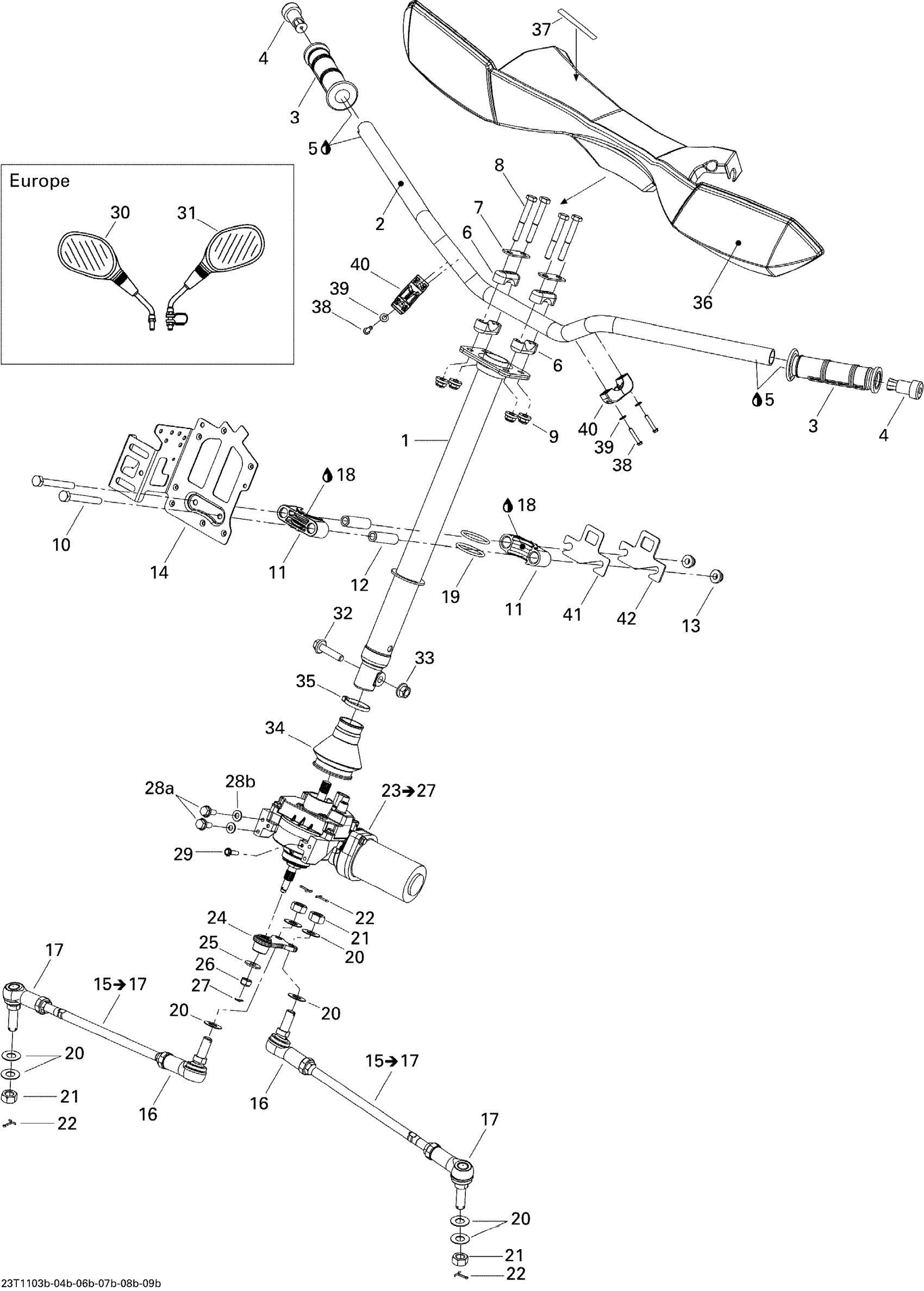

Can-Am Outlander 800R EFI, 2011 Steering XT, XTP Diagram

#

Description
Price

1

Tube-Main

715900573

$129.99

2

Black, Handle Bar

709401240

$69.99

3

Handle Grip

709400493

$14.83

4

End Piece

709400449

$8.49

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Support

709400919

$22.49

7

Stiffner

709400509

$4.79

8

Hex. Screw M8 X 60

207086046

$2.89

9

Hex. Elastic Flange Nut M8

233281416

$1.49

10

Hex. Screw M8 X 70

207087044

$2.29

11

Half Bushing

709400471

$14.30

12

BUSHING - Call your local BRP dealership

709400072

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

$1.49

14

MODULE SUPPORT - Call your local BRP dealership

709400751

Unavailable

15

Tie Rod Ass'y | Includes 21 to 23

709400485

Unavailable

16

LH Ball Joint

709402303

$36.99

17

Ball Joint, RH Threads

709400487

$52.99

18

Synthetic Grease, 400 G

293550010

Unavailable

19

O-Ring

293300068

$7.79

20

Hardened Washer

706200281

$2.89

21

Nut M12

250100099

$2.09

22

Cotter Pin

211400013

$1.49

23

POWER STEERING ASSIST - Call your local BRP dealership

709401001

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Hardened Washer

706200281

$2.89

26

Hex. Flange Elastic Nut M12

250000047

$1.99

27

Cotter Pin

211400013

$1.49

28a

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

28b

Conical Spring Washer M8

234281474

$1.49

29

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

$2.09

30

LH Mirror | Europe

709400406

$33.99

31

RH Mirror | Europe

709400407

$48.99

32

Hex. Flange Screw M8 X 35

207683544

$1.69

33

Hex. Flange Elastic Nut M8

233281414

$1.49

34

Bellows

709400674

$18.99

35

Tie-Rap 180 mm

414115200

$1.49

36

Handle Guard Ass'y, XT

703100352

$98.49

37

Decal "Dynamic Power Steering"

704905284

$14.49

38

Hex. Flange Screw K40 X 25

241142560

$2.69

39

Flat Washer | XT

211200035

$1.49

40

U-Clamp | XT

517303264

$12.49

41

SHIM 2 MM - Call your local BRP dealership

709400734

Unavailable

42

SHIM 1 MM - Call your local BRP dealership

709400735

Unavailable
