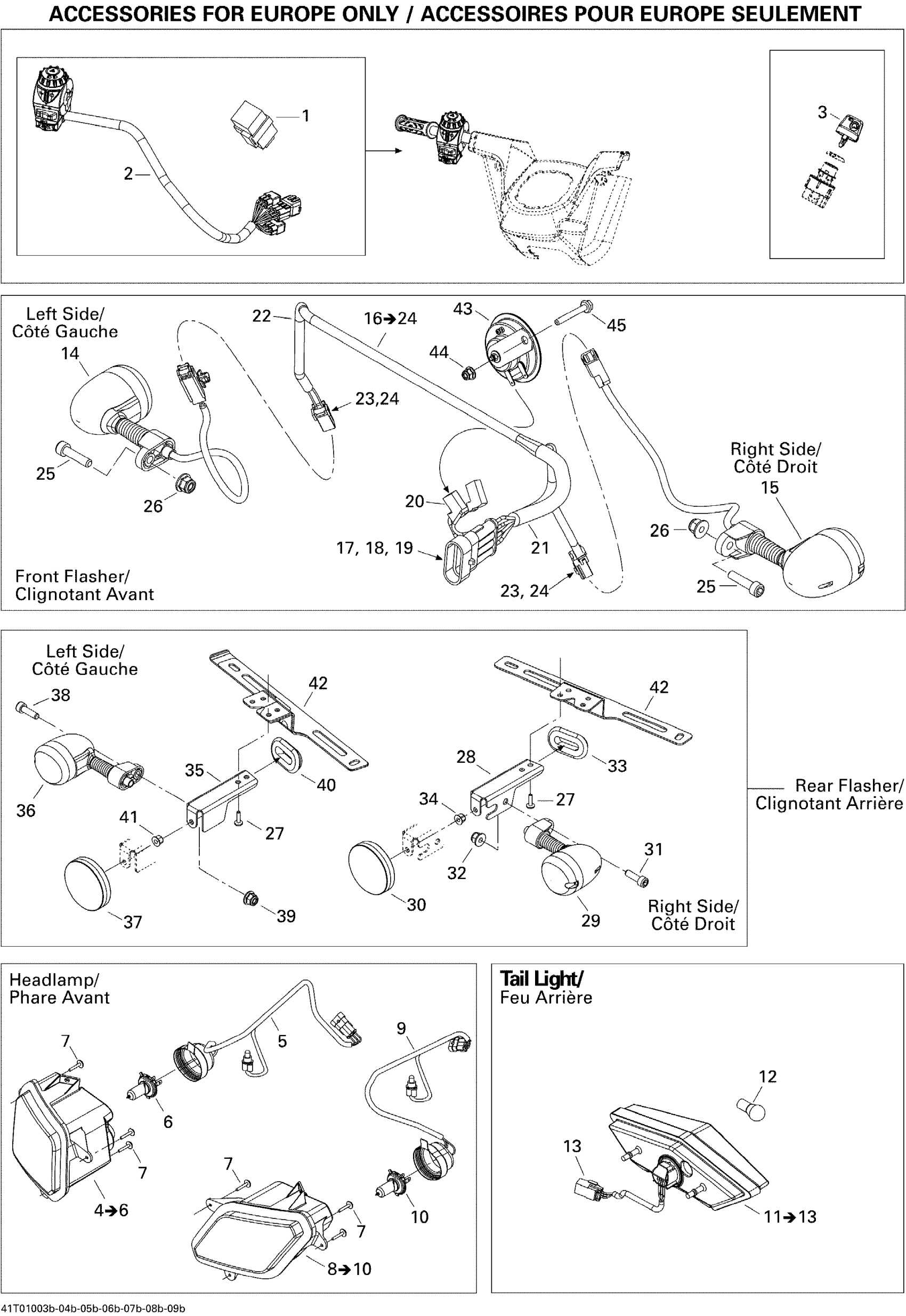

Can-Am Outlander 800R EFI, 2010 10- Electrical Accessories 2, Europe Diagram

#

Description
Price

1

FLASHER UNIT - Call your local BRP dealership

710001447

Unavailable

2

Multi function Handle | Europe

710001428

Unavailable

3

Black, Electronic Key

710000817

Unavailable

4

RH Headlamp Ass'y | Includes 11 to 13

710000861

Unavailable

5

Headlamp Harness

710000923

Unavailable

6

Bulb, 12V 35/35W

710000871

Unavailable

7

Plastite Screw Type K-40, M4 X 25

250000101

Unavailable

8

LH Headlamp Ass'y | Includes 14 to 16

710000862

Unavailable

9

Headlamp Harness

710000923

Unavailable

10

Bulb, 12V 35/35W

710000871

Unavailable

11

Tail Light Housing Ass'y | Includes 17 to 19

710001204

Unavailable

12

Bulb

520000758

Unavailable

13

Male Housing, 3 Circuits

515175494

Unavailable

14

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

15

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

16

FRONT HARNESS ASS'Y - Call your local BRP dealership | Includes 18 to 26

710001495

Unavailable

17

Female Terminal

515175231

Unavailable

18

Male Terminal | Europe Models

409012900

Unavailable

19

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

710000576

Unavailable

20

Wire Seal

278001013

Unavailable

21

Female Terminal

409010300

Unavailable

22

Tubing 6 Mm 3000Mm Long

219704425

Unavailable

23

Was 409901700 Tubing (9 mm)

219704399

Unavailable

24

Female Terminal Housing, 2 Circuits

515176296

Unavailable

25

Socket Head Screw M6 X 25

205062544

Unavailable

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

27

Pop Rivet 3/16"

390402400

Unavailable

28

BRACKET - Call your local BRP dealership

710001329

Unavailable

29

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

Unavailable

30

Red Reflector

705011221

Unavailable

31

Socket Head Screw M6 X 20

205062044

Unavailable

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

33

Oblong Grommet

705003668

Unavailable

34

Hex. Flange Elastic Nut M5

233251414

Unavailable

35

BRACKET - Call your local BRP dealership

710001330

Unavailable

36

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

37

Red Reflector

705011221

Unavailable

38

Socket Head Screw M6 X 20

205062044

Unavailable

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

40

Oblong Grommet

705003668

Unavailable

41

Hex. Flange Elastic Nut M5

233251414

Unavailable

42

BRACKET - Call your local BRP dealership

710001241

Unavailable

43

Horn

710004791

Unavailable

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

45

Hex. Flange Screw M6 X 45

207664544

Unavailable
