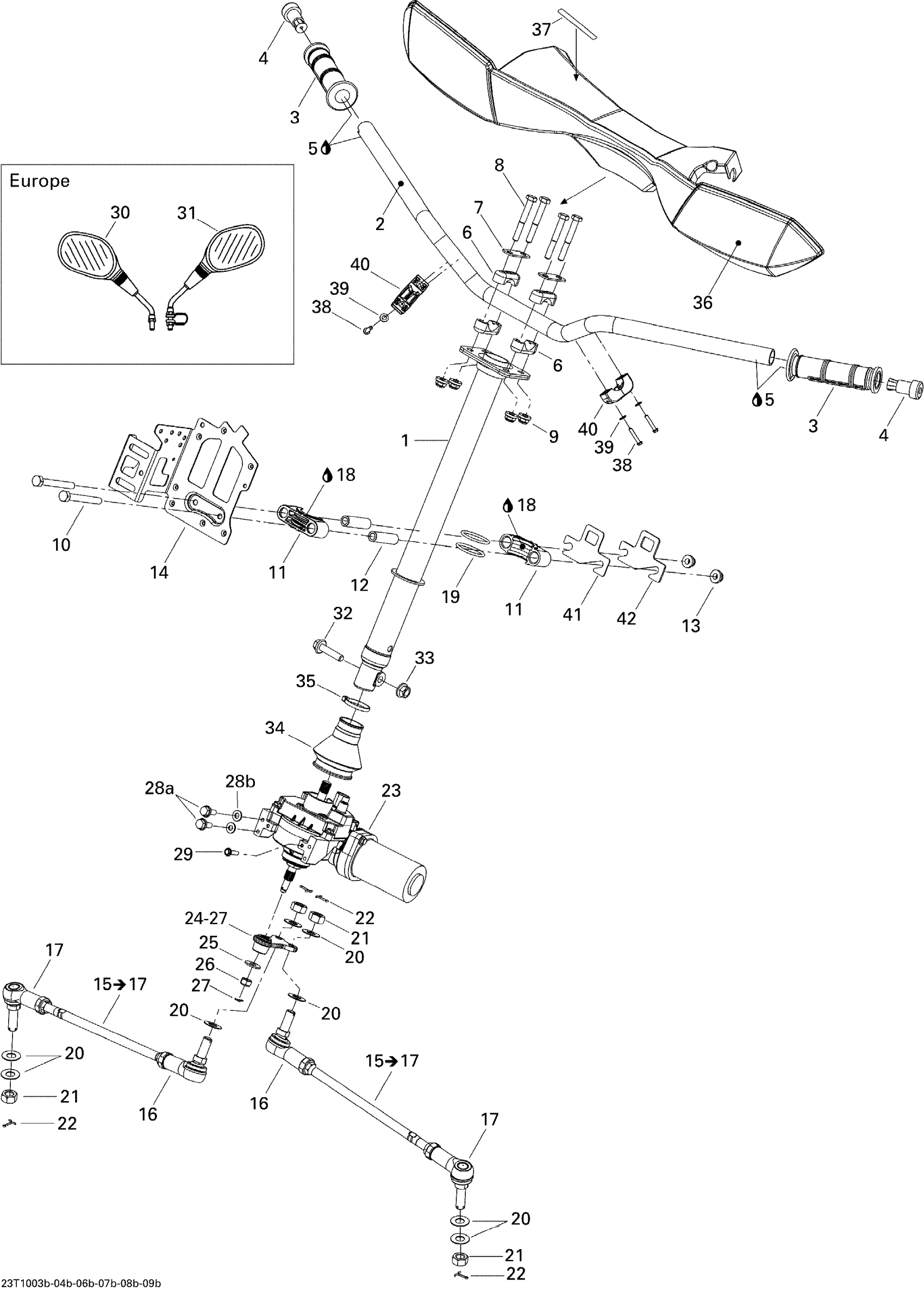

Can-Am Outlander 800R EFI, 2010 Steering XT, XT-P Diagram

#

Description
Price

1

Tube-Main

715900573

$119.97

2

Black, Handle Bar

709401240

$55.35

3

Handle Grip

709400493

$14.75

4

End Piece

709400449

$8.29

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Support

709400919

$20.74

7

Stiffner

709400509

$4.43

8

Hex. Screw M8 X 60

207086046

$2.30

9

Hex. Elastic Flange Nut M8

233281416

$1.25

10

Hex. Screw M8 X 70

207087044

$1.73

11

Half Bushing

709400471

$13.59

12

BUSHING - Call your local BRP dealership

709400072

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

$1.14

14

MODULE SUPPORT - Call your local BRP dealership

709400751

Unavailable

15

Tie Rod Ass'y | Includes 21 to 23

709400485

Unavailable

16

LH Ball Joint

709402303

$35.14

17

Ball Joint, RH Threads

709400487

$50.34

18

Synthetic Grease, 400 G

293550010

Unavailable

19

O-Ring

293300068

$5.29

20

Hardened Washer

706200281

$2.34

21

Nut M12

250100099

$1.64

22

Cotter Pin

211400013

$0.32

23

Power Steering

709401608

$997.49

24

LOWER MAIN TUBE KIT - Call your local BRP dealership | Includes 25 to 27

703500784

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28a

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

28b

Conical Spring Washer M8

234281474

$1.25

29

Screw-Forming Hex.Hd.Fl.Bzn M5 X 20

250000992

$1.64

30

LH Mirror | Europe

709400406

$36.89

31

RH Mirror | Europe

709400407

$46.12

32

Hex. Flange Screw M8 X 35

207683544

$1.39

33

Hex. Flange Elastic Nut M8

233281414

$1.14

34

Bellows

709400674

$16.12

35

Tie-Rap 180 mm

414115200

$0.09

36

Handle Bar Protector | XT

709400822

$87.66

37

Decal "Dynamic Power Steering"

704905284

$11.54

38

Hex. Flange Screw K40 X 25

241142560

$2.17

39

Flat Washer | XT

211200035

$0.46

40

U-Clamp | XT

517303264

$11.43

41

SHIM 2 MM - Call your local BRP dealership

709400734

Unavailable

42

SHIM 1 MM - Call your local BRP dealership

709400735

Unavailable
