- Outlander 800R EFI, 2009
10- Electrical Accessories Euro

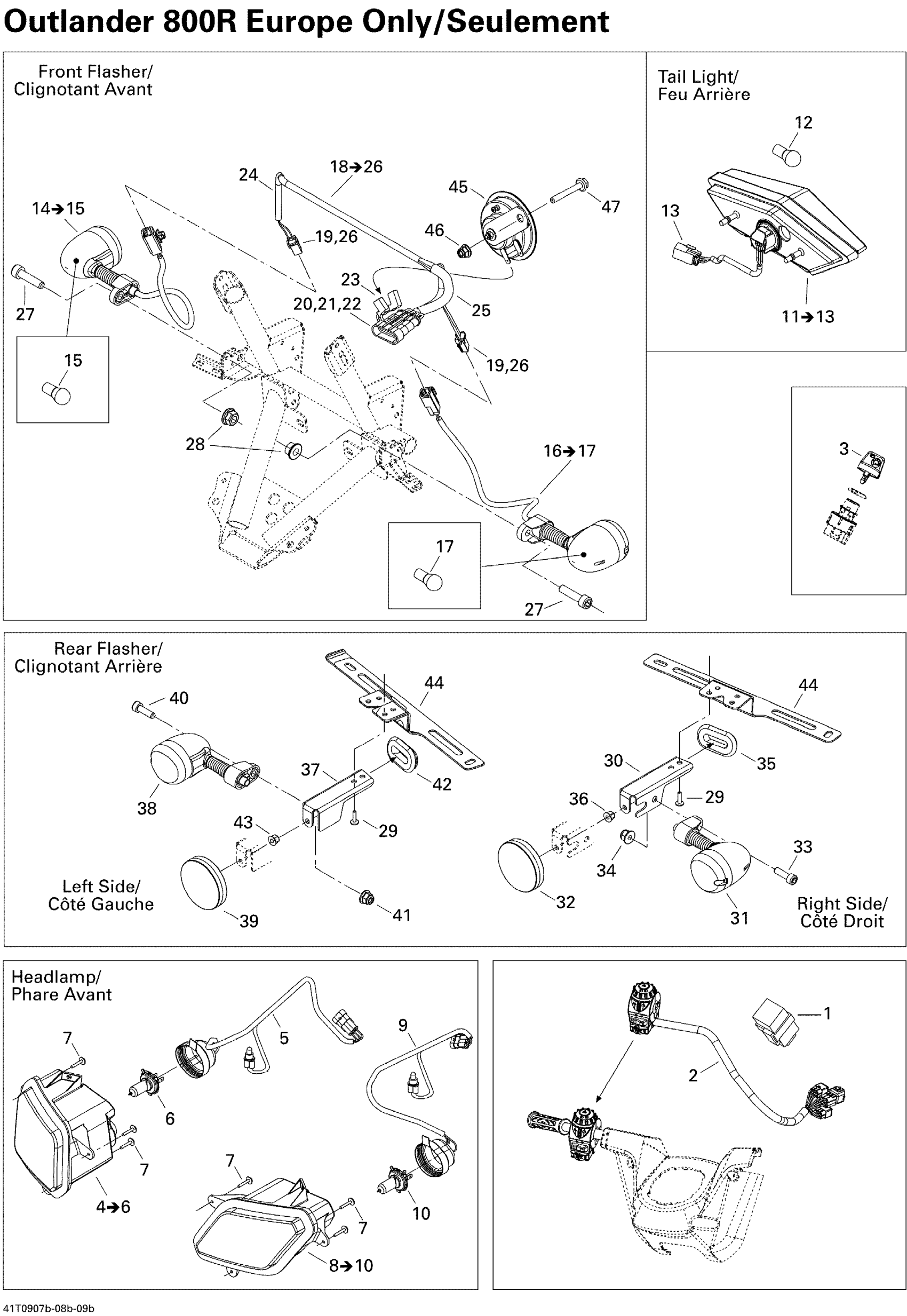

Can-Am Outlander 800R EFI, 2009 10- Electrical Accessories Euro Diagram
#
1
FLASHER UNIT - Call your local BRP dealership
710001447
Unavailable
2
Multi function Handle | Europe
710001428
Unavailable
3
Black, Electronic Key
710000817
Unavailable
4
RH Headlamp Ass'y | Includes 11 to 13
710000861
Unavailable
5
Headlamp Harness
710000923
Unavailable
6
Bulb, 12V 35/35W
710000871
Unavailable
7
Plastite Screw Type K-40, M4 X 25
250000101
Unavailable
8
LH Headlamp Ass'y | Includes 14 to 16
710000862
Unavailable
9
Headlamp Harness
710000923
Unavailable
10
Bulb, 12V 35/35W
710000871
Unavailable
11
Tail Light Housing Ass'y | Includes 17 to 19
710001204
Unavailable
12
Bulb
520000758
Unavailable
13
Male Housing, 3 Circuits
515175494
Unavailable
14
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26
710001079
Unavailable
15
Bulb
415129258
Unavailable
16
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35
710001080
Unavailable
17
Bulb
415129258
Unavailable
18
FRONT HARNESS ASS'Y - Call your local BRP dealership | Includes 18 to 26
710001495
Unavailable
19
Female Terminal
515175231
Unavailable
20
Male Terminal | Europe Models
409012900
Unavailable
21
HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models
710000576
Unavailable
22
Wire Seal
278001013
Unavailable
23
Female Terminal
409010300
Unavailable
24
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
25
Was 409901700 Tubing (9 mm)
219704399
Unavailable
26
Female Terminal Housing, 2 Circuits
515176296
Unavailable
27
Socket Head Screw M6 X 25
205062544
Unavailable
28
Hex. Flange Nut M6
233061414
Unavailable
29
Pop Rivet 3/16"
390402400
Unavailable
30
BRACKET - Call your local BRP dealership
710001329
Unavailable
31
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26
710001079
Unavailable
32
Red Reflector
705011221
Unavailable
33
Socket Head Screw M6 X 20
205062044
Unavailable
34
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
35
Oblong Grommet
705003668
Unavailable
36
Hex. Flange Elastic Nut M5
233251414
Unavailable
37
BRACKET - Call your local BRP dealership
710001330
Unavailable
38
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35
710001080
Unavailable
39
Red Reflector
705011221
Unavailable
40
Socket Head Screw M6 X 20
205062044
Unavailable
41
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
42
Oblong Grommet
705003668
Unavailable
43
Hex. Flange Elastic Nut M5
233251414
Unavailable
44
BRACKET - Call your local BRP dealership
710001241
Unavailable
45
Horn
710004791
Unavailable
46
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
47
Hex. Flange Screw M6 X 45
207664544
Unavailable
