- Outlander 800R EFI, 2009
09- Body And Accessories 3, STD

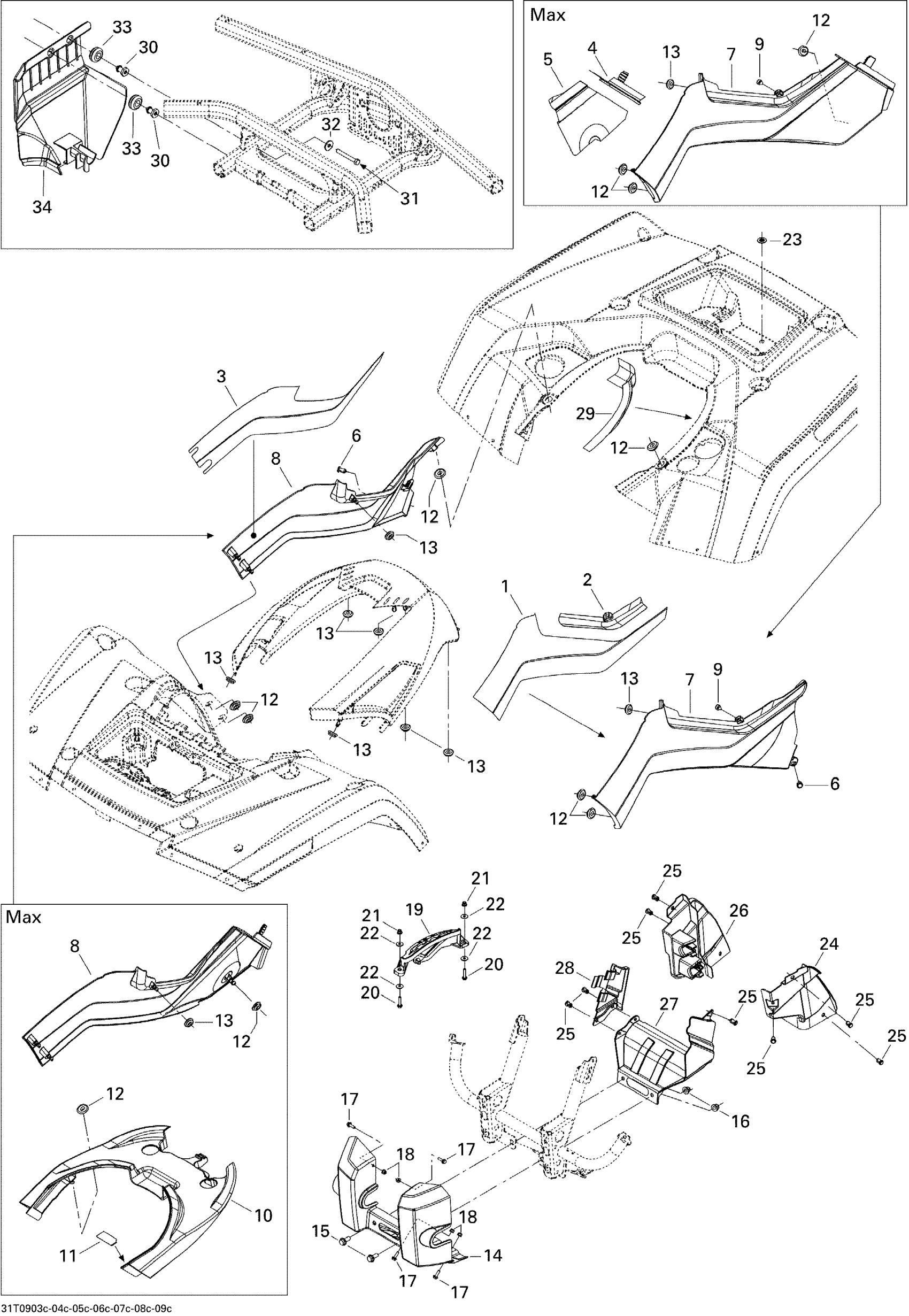

Can-Am Outlander 800R EFI, 2009 09- Body And Accessories 3, STD Diagram
#
1
Reflective Sheet
705005620
Unavailable
2
REFLECTIVE SHEET - Call your local BRP dealership
705005617
Unavailable
3
REFLECTIVE SHEET - Call your local BRP dealership
705005623
Unavailable
4
Not Available As Spare Parts
XXX
Unavailable
5
Not Available As Spare Parts
XXX
Unavailable
6
Tuflok Plastic Rivet
293150230
Unavailable
7
LH LATERAL PANEL, RED - Call your local BRP dealership | Viper Red
705002948
Unavailable
7
PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow
705002946
Unavailable
8
RH LATERAL PANEL, RED - Call your local BRP dealership | Viper Red
705002951
Unavailable
8
PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow
705002949
Unavailable
9
Rubber Bumper
293830005
Unavailable
10
Not Available As Spare Parts
XXX
Unavailable
11
Not Available As Spare Parts
XXX
Unavailable
12
Oval Washer
705005156
Unavailable
13
Grommet
705003264
Unavailable
14
GUARD PLATE - Call your local BRP dealership | STD
705003495
Unavailable
15
Hex. Flange Screw M10 X 25
207602544
Unavailable
16
Hex. Flange Elastic Nut M10
233201414
Unavailable
17
Hex. Flange Screw M6 X 20
207662044
Unavailable
18
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
19
Lever Indicator
705003838
Unavailable
20
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
21
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Flat Washer
224061201
Unavailable
23
CAP - Call your local BRP dealership
414859400
Unavailable
24
LH INNER FENDER - Call your local BRP dealership
705003634
Unavailable
25
Tuflok Plastic Rivet
293150230
Unavailable
26
RH INNER FENDER - Call your local BRP dealership
705002124
Unavailable
27
LH DEFLECTOR - Call your local BRP dealership
705002988
Unavailable
28
RH DEFLECTOR - Call your local BRP dealership
705002135
Unavailable
29
Reflective Sheet
705002085
Unavailable
30
Knob
517303439
Unavailable
31
Hex. Screw K50 X 45
241154540
Unavailable
32
Washer | DS 650 X
391301600
Unavailable
33
Grommet
709000582
Unavailable
34
Thread Cover
705004036
Unavailable
