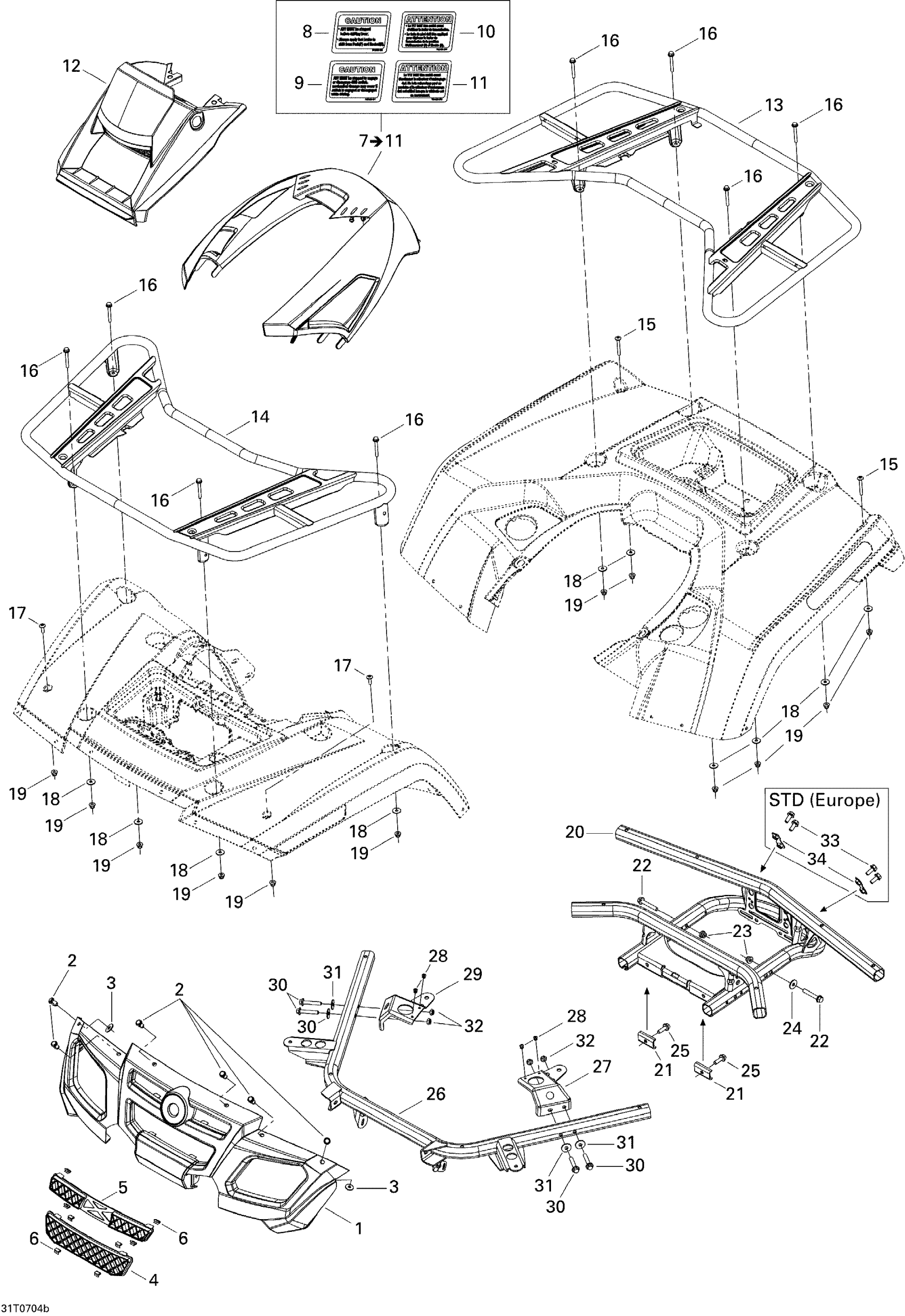

Can-Am Outlander 800 XT 4 X 4, 2007 Body And Accessories 2, XT Diagram

#

Description
Price

1

FRONT FASCIA, RED - Call your local BRP dealership | Viper Red

705001313

Unavailable

1

FRONT FASCIA, YELLOW - Call your local BRP dealership | Yellow

705001991

Unavailable

1

FRONT FASCIA, GREEN - Call your local BRP dealership | Laurentian Green

705001992

Unavailable

1

Front Fascia, Camo | Camo, B-005

705002012

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.39

3

Washer

506151252

$3.01

4

LOWER GRILL - Call your local BRP dealership

705001679

Unavailable

5

UPPER GRILL - Call your local BRP dealership

705001901

Unavailable

6

Clip | Europe Models

517306751

$1.91

7

Central Panel Kit, Red | Includes 7 to 10, Viper Red

703500597

Unavailable

7

Central Panel Kit, Yellow | Includes 7 to 10, Yellow

715001274

$51.46

7

CENTRAL PANEL KIT, GREEN - Call your local BRP dealership | Includes 7 to 10, Laurentian Green

703500599

Unavailable

7

Central Panel Kit, Camo | Includes 28 to 31, Camo, B-005

703500600

Unavailable

8

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

9

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

10

Caution Decal, Shifting Lever | French Version

704900475

Unavailable

11

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

704900476

Unavailable

12

Dashboard

705003490

$41.76

12

Dashboard | Europe

705002210

Unavailable

13

Rear Luggage Rack

705002617

$255.19

14

Front Luggage Rack

705002616

$255.19

15

Torx Truss Screw M6 X 50

250000749

$3.01

16

Hex. Flange Screw M6 X 50

207665044

$3.88

17

Torx Screw M6 X 20

250000722

$1.54

18

Flat Washer

224061201

$1.27

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

20

Rear Support

705003656

$255.94

20

Rear Support | Camo, B-005

705002004

Unavailable

21

U Reinforcement

705003647

$6.72

22

Hex. Flange Screw M8 X 50

207685044

$1.60

23

Hex. Flange Elastic Nut M8

233281414

$1.31

24

Flat Washer 8 mm

234082410

$1.27

25

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.60

26

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

27

LH ANCHOR PLATE - Call your local BRP dealership

705000692

Unavailable

28

Pop Rivet 3/16"

390402300

$0.73

29

RH Anchor Plate

705002997

$16.39

30

Hex. Flange Screw M8 X 45

207684544

$3.57

31

Flat Washer 8 mm

234082410

$1.27

32

Hex. Elastic Stop Nut M8

232581414

$0.54

33

Not Available As Spare Parts

XXX

Unavailable

34

Not Available As Spare Parts

XXX

Unavailable
