10- Electrical Accessories XT

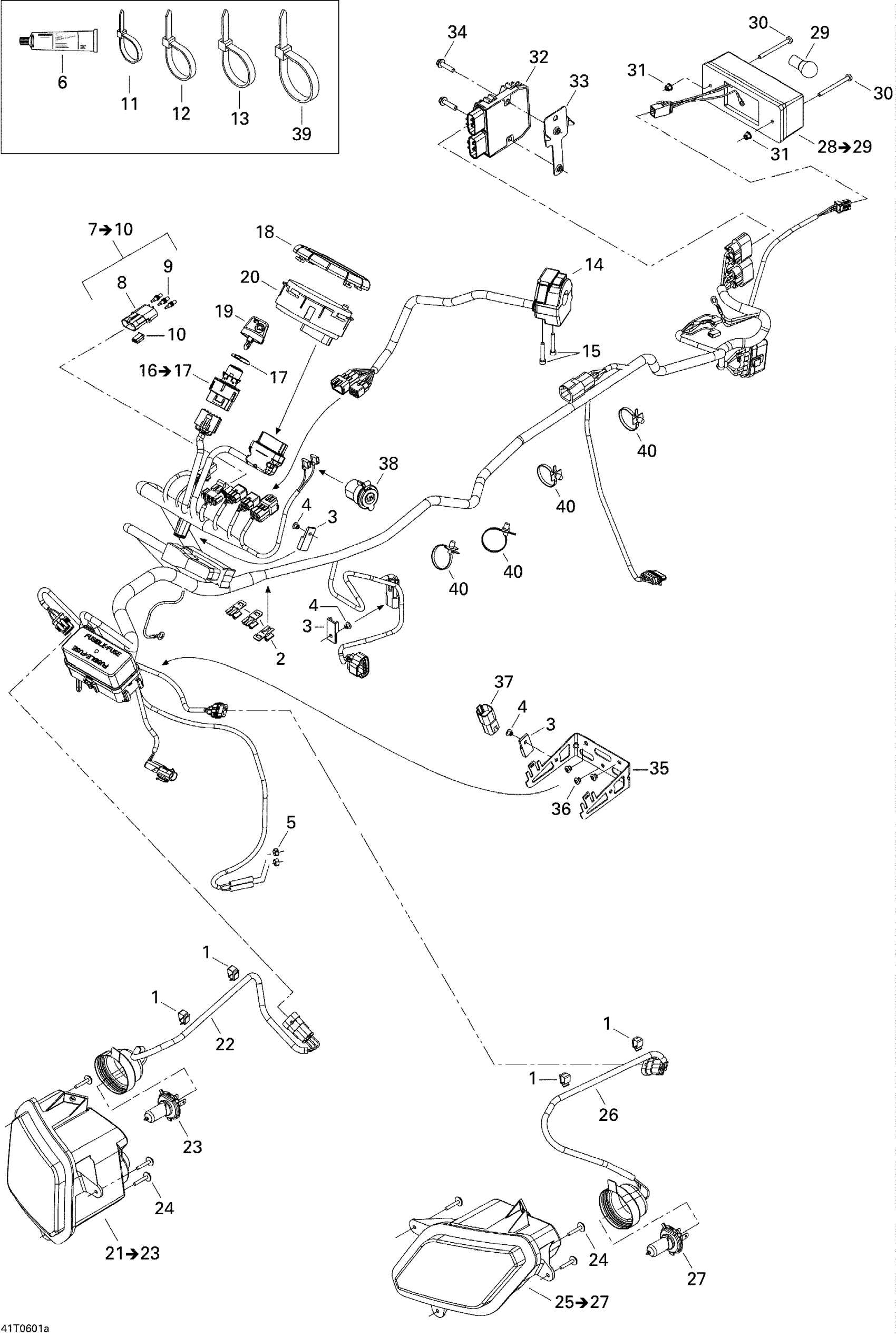

Can-Am Outlander 800 XT 4 X 4, 2006 10- Electrical Accessories XT Diagram
#
1
Clip
414227300
Unavailable
2
Housing Support
515175283
Unavailable
3
Clip
270000141
Unavailable
4
Pop Rivet 3/16"
390402400
Unavailable
5
Oetiker Clamp
293650100
Unavailable
6
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
7
Not Available As Spare Parts
XXX
Unavailable
8
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
9
Wire Seal
278000216
Unavailable
10
CLIP - Call your local BRP dealership
409014200
Unavailable
11
Tie Wrap 94 mm | 4X4
293750001
Unavailable
12
Tie-Rap 180 mm
414115200
Unavailable
13
Tie Wrap 368 mm
293750008
Unavailable
14
Multi-Fonction Handle
710000791
Unavailable
15
Socket Head Screw M5 X 35
205053588
Unavailable
16
Ignition Switch | Includes 16 to 17
710002324
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
TRIM RING - Call your local BRP dealership
710000353
Unavailable
19
Black, Electronic Key
710000817
Unavailable
20
SPEEDOMETER - Call your local BRP dealership
710000919
Unavailable
21
RH Headlamp Ass'y | Includes 20 to 22
710001496
Unavailable
22
LIGHT HARNESS - Call your local BRP dealership
710000828
Unavailable
23
Bulb, 12V 35/35W
710000871
Unavailable
24
Plastite Screw Type K-40, M4 X 25
250000101
Unavailable
25
LH Headlamp Ass'y | Includes 24 to 26
710001497
Unavailable
26
LIGHT HARNESS - Call your local BRP dealership
710000828
Unavailable
27
Bulb, 12V 35/35W
710000871
Unavailable
28
Tail Light Housing Ass'y | Includes 17 to 20
710000711
Unavailable
29
Bulb
520000758
Unavailable
30
PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership
208656091
Unavailable
31
Hex. Flange Elastic Nut M5
233251414
Unavailable
32
Voltage Regulator | For replacement, refer to service bulletin 2005-5
710001103
Unavailable
33
RECTIFIER SUPPORT - Call your local BRP dealership
710001262
Unavailable
34
Hex. Flange Forming Screw M6 X 25
210262580
Unavailable
35
FUSE SUPPORT - Call your local BRP dealership
710002176
Unavailable
36
Pop Rivet 3/16"
390402400
Unavailable
37
Diagnostic Connector
278002704
Unavailable
38
Outlet Power Kit, 12 Volts
861507200
Unavailable
39
Tie-rap 627 mm
293750041
Unavailable
40
Push Mount
293750039
Unavailable
