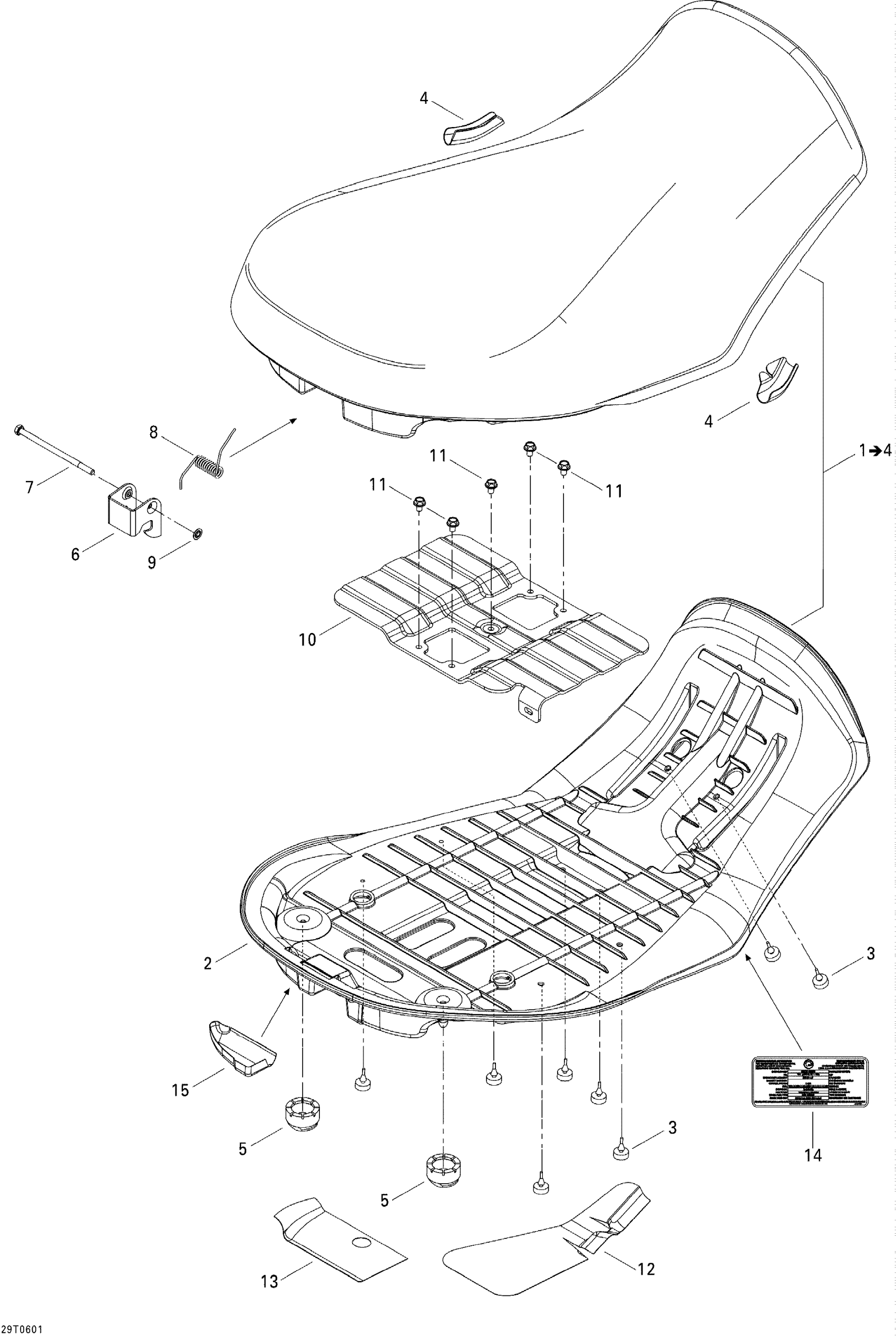

Can-Am Outlander 800 XT 4 X 4, 2006 09- Seat Diagram

#

Description
Price

1

Seat Assembly | Includes 1 to 6

708001649

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rubber Stopper

708000759

Unavailable

4

SEAT CORNER, BLACK - Call your local BRP dealership

708000127

Unavailable

5

Bumper Rubber

708000760

Unavailable

6

Latch, Black

708000144

Unavailable

7

Hex. Screw M6 X 110

230061044

Unavailable

8

Spring

708000369

Unavailable

9

Push Nut

732610072

Unavailable

10

Seat Reinforcement

708000629

Unavailable

11

Hex. Flange Screw M6 X 12

210261250

Unavailable

12

REFLECTING SHEET - Call your local BRP dealership

708000956

Unavailable

13

REFLECTING SHEET - Call your local BRP dealership

708000470

Unavailable

14

Emission Label

704900932

Unavailable

15

HEAT SHIELD - Call your local BRP dealership

708000957

Unavailable
