- Outlander 800 XT 4 X 4, 2006
07- Drive System, Front XT

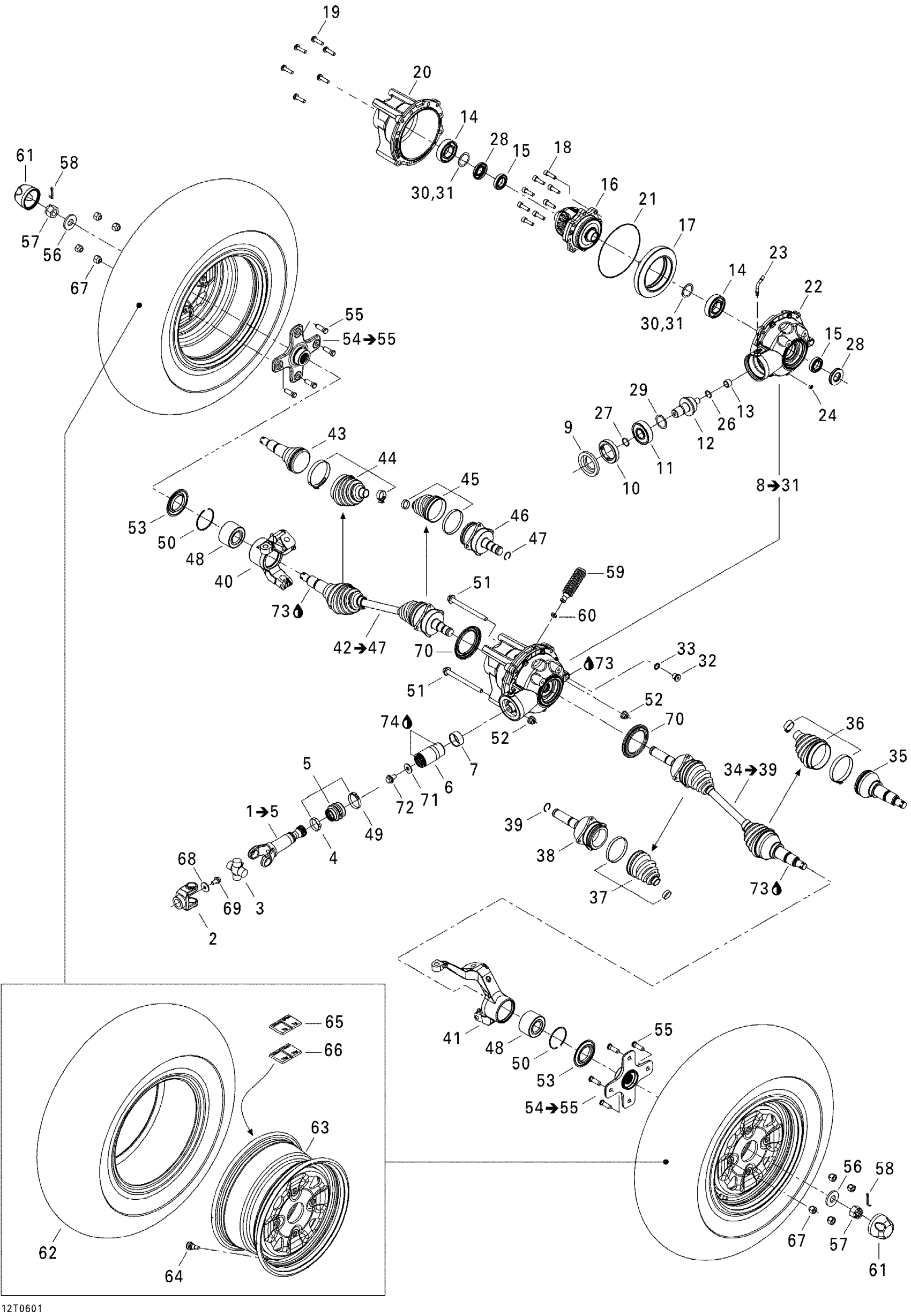

Can-Am Outlander 800 XT 4 X 4, 2006 07- Drive System, Front XT Diagram
#
1
Arbre Assemble *Drive Axle Ass | Includes 1 to 6
705400914
Unavailable
2
YOKE, FIXED JOINT - Call your local BRP dealership
705400391
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Collar | 4X4
705400148
Unavailable
5
Rubber Boot Kit | 4X4 / Includes 3 to 5
703500255
Unavailable
6
Front Bushing Shaft Kit | 4X4
703500678
Unavailable
7
Wear Ring | 4X4
705400036
Unavailable
8
Front Differential | Includes 8 to 31
703500907
Unavailable
9
Oil Seal | 4X4
705401481
Unavailable
10
Nut | 4X4
705401603
Unavailable
11
Ball Bearing | 4X4
705500260
Unavailable
12
GEAR, 10 TEETH - Call your local BRP dealership | 4X4
705500268
Unavailable
13
Needle Bearing | 4X4
705500261
Unavailable
14
Ball Bearing | 4X4
705401606
Unavailable
15
Ball Bearing | 4X4
293350044
Unavailable
16
Ens Differentiel*Differential Kit | 4X4
703500871
Unavailable
17
GEAR, 36 TEETH - Call your local BRP dealership | 4X4
705400192
Unavailable
18
RING GEAR SCREW - Call your local BRP dealership | 4X4
705400101
Unavailable
19
Screw | 4X4
705401601
Unavailable
20
FRONT COVER - Call your local BRP dealership
705400762
Unavailable
21
Seal | 4X4
705500265
Unavailable
22
Front Cover
705400646
Unavailable
23
VENT VALVE - Call your local BRP dealership | 4X4
705500893
Unavailable
24
Drain Plug | 4X4
705500894
Unavailable
26
RETAINING RING - Call your local BRP dealership | 4X4
705500269
Unavailable
27
O-Ring | 4X4
705500267
Unavailable
28
Gasket | 4X4
705401618
Unavailable
29
Pinion Gear Shim 1.67 mm
705502061
Unavailable
30
Shim | 4X4
705401604
Unavailable
31
Shim | 4X4
705401604
Unavailable
32
Fill Level Plug | 4X4
705500504
Unavailable
33
Copper Washer | 4X4
705500506
Unavailable
34
RH Half Shaft | Includes 34 to 39
705401579
Unavailable
35
CV Joint
705500560
Unavailable
36
Wheel Boot Kit
705400511
Unavailable
37
Differential Boot Kit
705400512
Unavailable
38
RH PLUNGING JOINT - Call your local BRP dealership
705400294
Unavailable
39
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
40
LH KNUCKLE - Call your local BRP dealership
709400284
Unavailable
41
RH Knuckle
709400288
Unavailable
42
LH Half Shaft | Includes 42 to 47
705401578
Unavailable
43
CV Joint
705500560
Unavailable
44
Wheel Boot Kit
705400511
Unavailable
45
Differential Boot Kit
705400512
Unavailable
46
LH Plunging Joint
705400295
Unavailable
47
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
48
Ball Bearing
293350150
Unavailable
49
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
50
Circlip
293370019
Unavailable
51
Hex. Flange Screw M10 X 125
230602546
Unavailable
52
Hex. Flange Elastic Nut M10
233201436
Unavailable
53
Wear Sleeve | 4X4
705501121
Unavailable
54
LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66
705501713
Unavailable
55
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
56
Conical Spring Washer M18
250200171
Unavailable
57
Hex. Flange Castellated Nut M18
232291413
Unavailable
58
Cotter Pin
250400036
Unavailable
59
Rubber Bellow | 4X4
705400552
Unavailable
60
Oetiker Clamp
293650042
Unavailable
61
WHEEL CAP - Call your local BRP dealership
705400012
Unavailable
62
Tire | XT
705401333
Unavailable
63
FRONT RIM - Call your local BRP dealership
705400383
Unavailable
63
FRONT RIM - Call your local BRP dealership
705400435
Unavailable
64
Rim Valve With Cap
705400193
Unavailable
65
Self Adhesive Weight, 5G 20mm
705502106
Unavailable
66
ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership
705500824
Unavailable
67
Steel Wheel Nut
250100042
Unavailable
68
Washer
211200041
Unavailable
69
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
70
Wear Sleeve
705400780
Unavailable
71
Flat Washer M10 | 4X4
250200014
Unavailable
72
Flange Screw M10 X 16, Scotch Grip | 4X4
250000060
Unavailable
73
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
Unavailable
74
Synthetic Grease, 400 G
293550010
Unavailable
