- Outlander 800 XT 4 X 4, 2006
05- Transmission

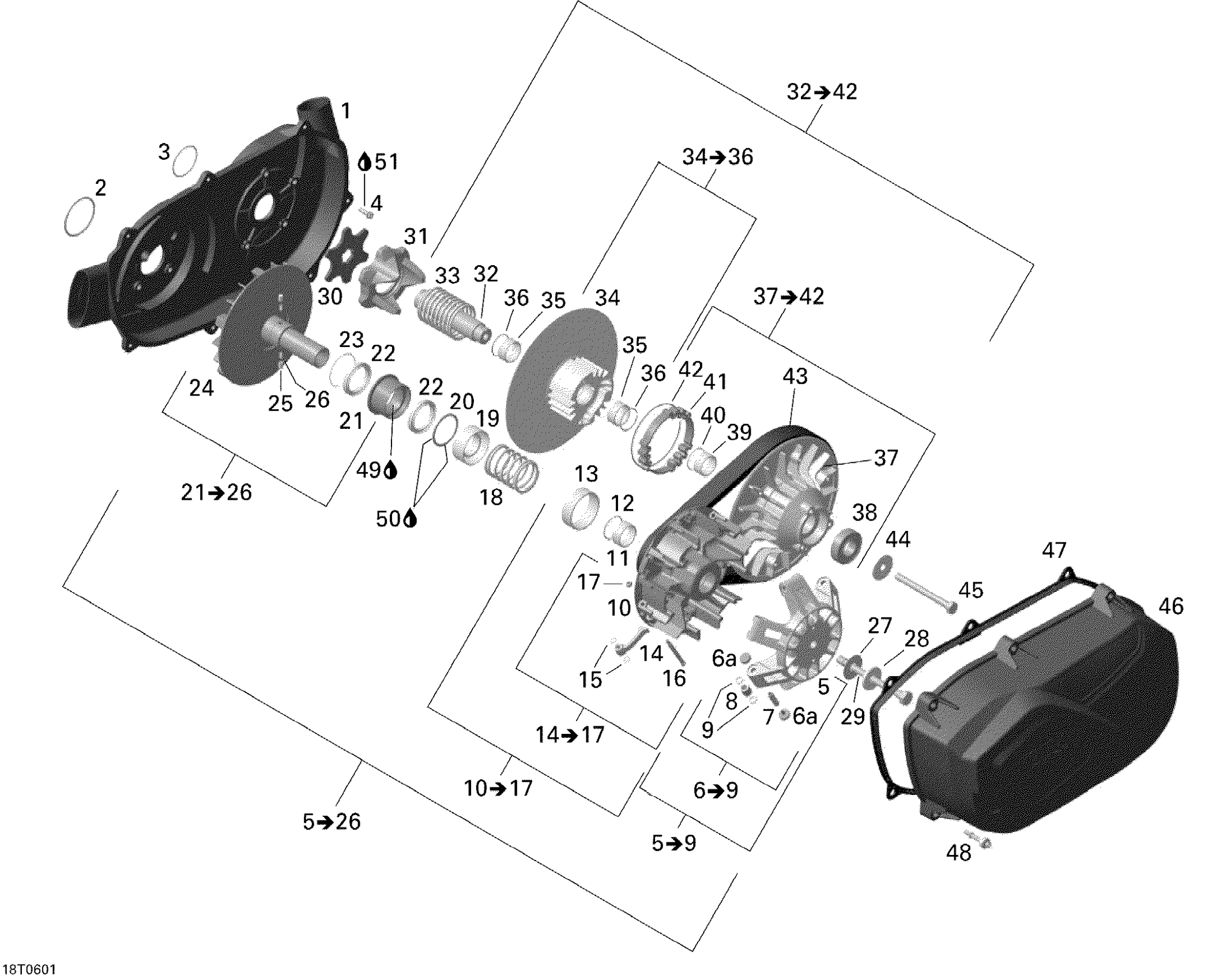

Can-Am Outlander 800 XT 4 X 4, 2006 05- Transmission Diagram
#
1
CVT Air Guide Kit
420611407
Unavailable
2
O-Ring
420430408
Unavailable
3
O-Ring
420631089
Unavailable
4
Torx Flange Screw M6 X 20
420440207
Unavailable
5
CVT Drive Ass'y | Includes 5 to 26
420684670
Unavailable
5
Governor Cup Ass'y | Includes 6 to 9
420280522
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
Roller Ass'y | Includes 6a to 9
420281295
Unavailable
6a
Slider Shoe Set
420281296
Unavailable
7
Roller Axle
417223257
Unavailable
8
Roller
417223767
Unavailable
9
Roller
417223767
Unavailable
10
Outher Half Ass'y | Includes 10 to 17
420280317
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Centrifugal Lever Kit | Includes 14 to 17
420248495
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Compression Spring, Drive Pulley
420238610
Unavailable
19
Seat Spring
420627578
Unavailable
20
Friction Washer
420460430
Unavailable
21
Inner Half Ass'y | Includes 21a to 26
420280380
Unavailable
21
Drive Pulley Clutch
420257195
Unavailable
22
Ball Bearing
420632377
Unavailable
23
Retaining Ring
420245951
Unavailable
24
Not Available As Spare Part - Friction Washer
Unavailable
25
Spring Sleeve
420229577
Unavailable
26
Spring
420239134
Unavailable
27
Thrust Washer
420627920
Unavailable
28
Spring Washer
420627768
Unavailable
29
Hex. Screw M12 X 140
420641859
Unavailable
30
Cam Plate
420627586
Unavailable
31
Cam
420280473
Unavailable
32
CVT Driven Pulley Ass'y | Includes 32a to 42
420684672
Unavailable
32
Driven Pulley Shaft
420220914
Unavailable
33
Compression Spring
420238176
Unavailable
34
Inner Half Ass'y | Includes 33 to 35
420248233
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
35
Not Available As Spare Part - Friction Washer
Unavailable
36
Not Available As Spare Part - Friction Washer
Unavailable
37
Outer Half Pulley Ass'y | Includes 27 to 32
420280178
Unavailable
37
Not Available As Spare Part - Friction Washer
Unavailable
38
Ball Bearing
420932421
Unavailable
39
Not Available As Spare Part - Friction Washer
Unavailable
40
Not Available As Spare Part - Friction Washer
Unavailable
41
Torque Gear
420660124
Unavailable
42
Retaining Ring
420245911
Unavailable
43
V-Belt
422280366
Unavailable
44
Thrust Washer
420627590
Unavailable
45
Hex. Screw M10 X 110
420441485
Unavailable
46
Variator Cover
420611397
Unavailable
47
Gasket
420430126
Unavailable
48
Hex Screw M6 X 30
420440568
Unavailable
49
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
50
Isoflex Grease, TOPAS NB52, 50 g
293550021
Unavailable
51
Loctite 243, 10 ml
293800060
Unavailable
