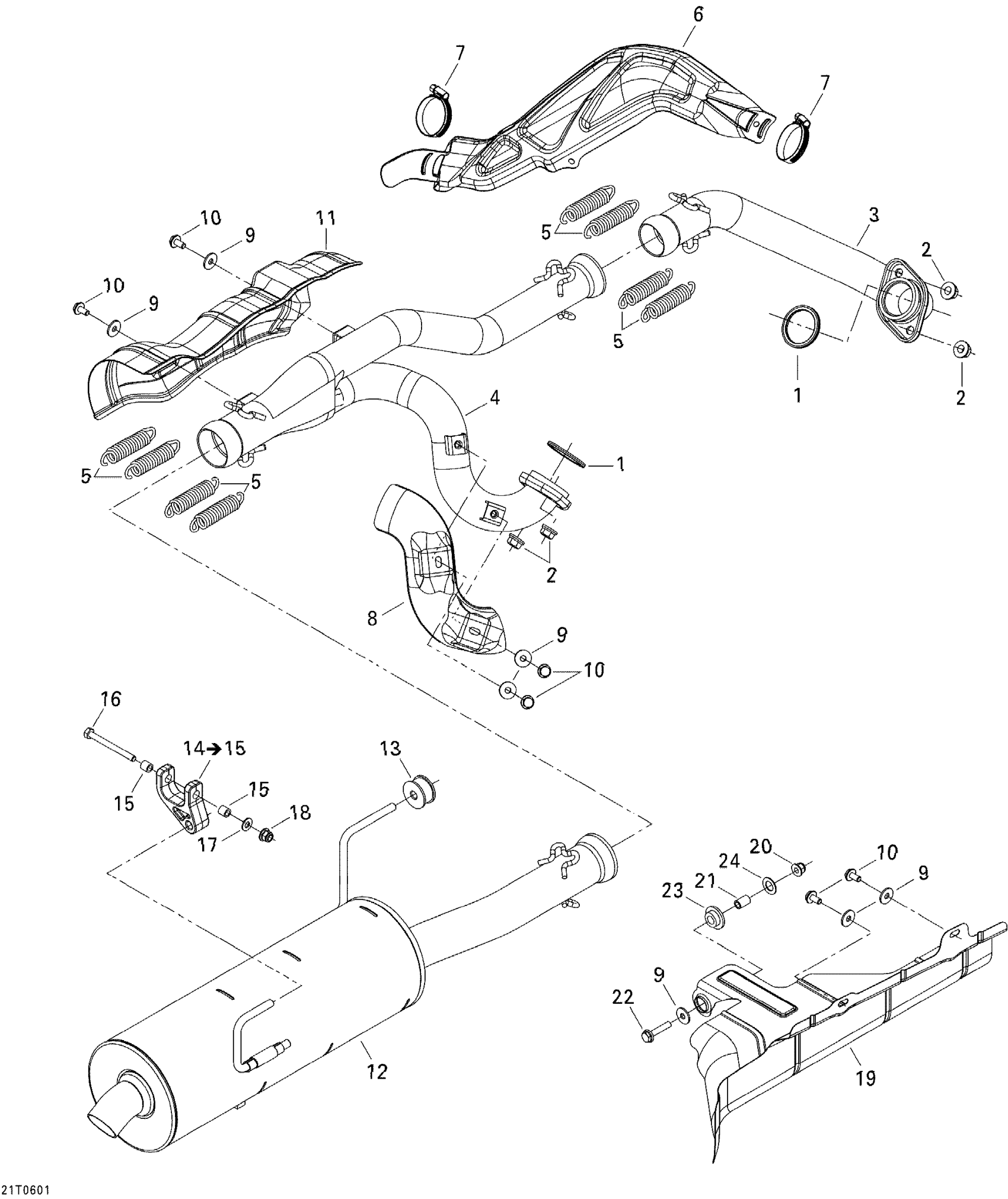

Can-Am Outlander 800 XT 4 X 4, 2006 Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$11.60

2

Hex. Flange Nut M8

233081416

$1.15

3

FRONT TUNED PIPE - Call your local BRP dealership

707600529

Unavailable

4

Rear Tuned Pipe

707600270

Unavailable

5

Spring

415107100

$6.35

6

Heat Shield

707600889

$36.99

7

Norma Gear Clamp

293650098

$4.44

8

PROTECTOR - Call your local BRP dealership

707600615

Unavailable

9

Flat Washer

250200082

$0.42

10

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

11

REAR HEAT SHIELD - Call your local BRP dealership

707600344

Unavailable

12

MUFFLER - Call your local BRP dealership

707600271

Unavailable

13

Anti-Vibration Rubber

707600702

$8.57

14

Muffler Braket | Includes 15 to 16

707600282

Unavailable

15

Bushing

293900105

$7.65

16

Hex. Screw M6 X 65

207066544

$0.46

17

Flat Washer

224061121

$0.53

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Protector

707600621

$60.49

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

Sleeve

293900078

$13.71

22

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

23

Grommet

705003932

$2.89

24

Washer

503175800

$3.28
