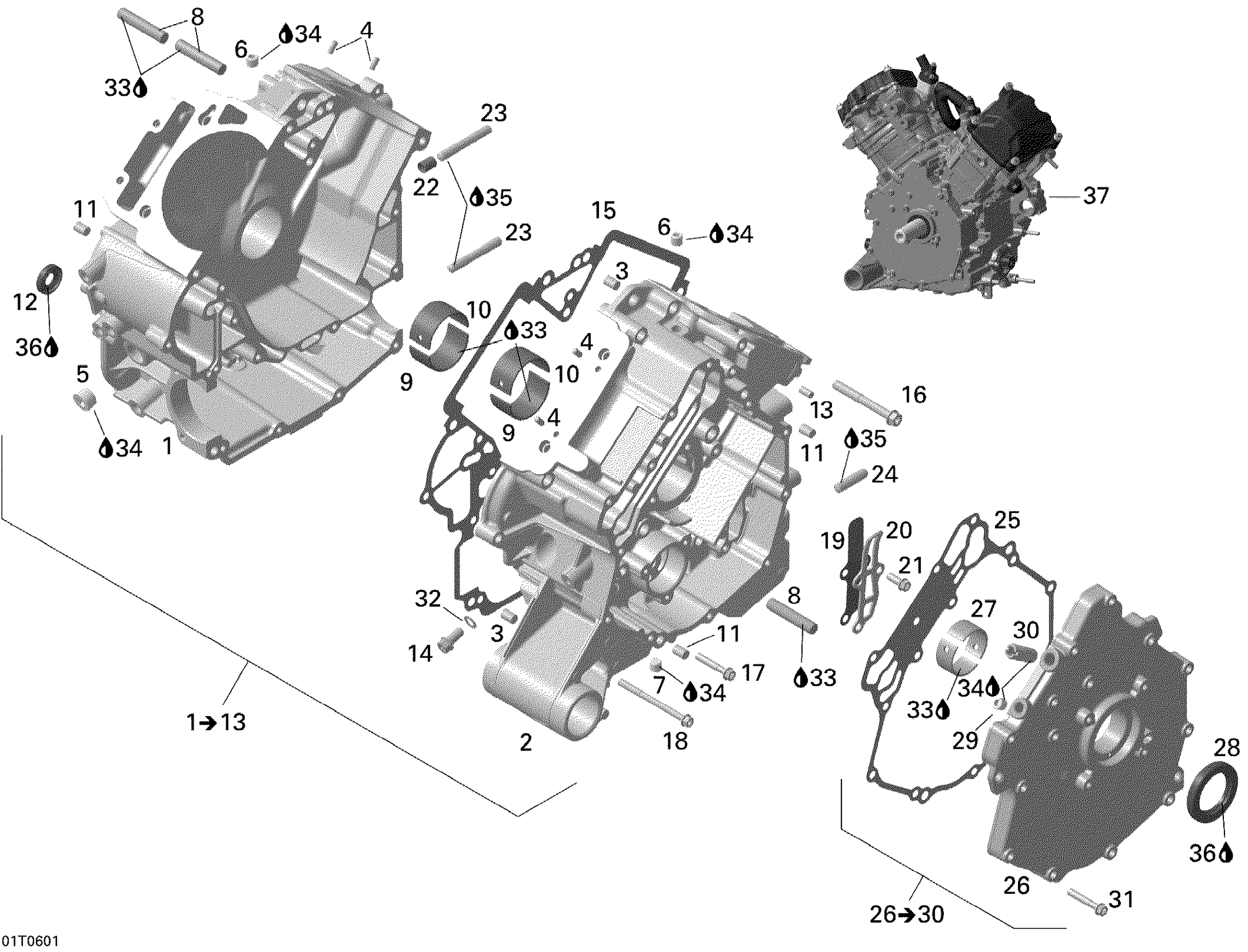

Can-Am Outlander 800 XT 4 X 4, 2006 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1a to 14

420685317

$1,150.49

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Center Pin 8 X 12

420632010

$4.01

4

Drive Pin 5 X 10

420929650

$1.68

5

Plug Screw M18 X 1.5 - Call your local BRP dealership

420240170

$7.41

6

Plug Screw M10 X 1

420641323

$14.28

7

PLUG SCREW M12 X 1.5 - Call your local BRP dealership

420840651

Unavailable

8

Location Pin 10 M6x50

420229302

$3.17

9

Plain Bearing

420233960

$23.99

10

Plain Bearing

420233965

$23.99

11

Center Pin 8 X 12

420632010

$4.01

12

Oil Seal

420650315

$11.65

13

Needle Pin

420932780

$7.41

14

Torx Flange Screw M8 X 16

420440852

$4.12

15

Gasket

420651220

$35.99

16

Torx Flange Screw M8 X 65

420440402

$7.41

17

Torx Flange Screw M6 X 35

420440274

$1.01

18

Torx Flange Screw M6 X 75

420440657

$4.44

19

Reed Valve

420224721

$19.19

20

Reed Valve Stop

420224725

$11.63

21

Torx Flange Screw M6 X 16

420641048

$2.96

22

Dowel Pin 10 X 13

420929670

$11.60

23

STUD M8 X 68 - Call your local BRP dealership

420240811

Unavailable

24

STUD M8 X 21 - Call your local BRP dealership

420840716

Unavailable

25

Gasket

420651211

$26.49

26

PTO Cover Ass'y | Includes 25a to 29

420611146

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Bearing Sleeve

420233995

$20.99

28

Oil Seal

420631933

$27.49

29

Plug Screw M10 X 1

420641323

$14.28

30

Hose Nipple

420256332

$17.53

31

Torx Flange Screw M6 X 35

420440274

$1.01

32

Sealing Ring

420950141

$2.00

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Loctite 243, 10 ml

293800060

$21.49

35

Sealant Loctite 648

219703000

$45.99

36

Grease, Super Lube

293550030

$28.99

37

REBUILD-BLOCK-LONG 810 06 TO 08 - Call your local BRP dealership

421000672

Unavailable

37

REBUILD-BLOCK-LONG 810 06 TO 08 - Call your local BRP dealership

421000672

Unavailable
