01- Cooling System

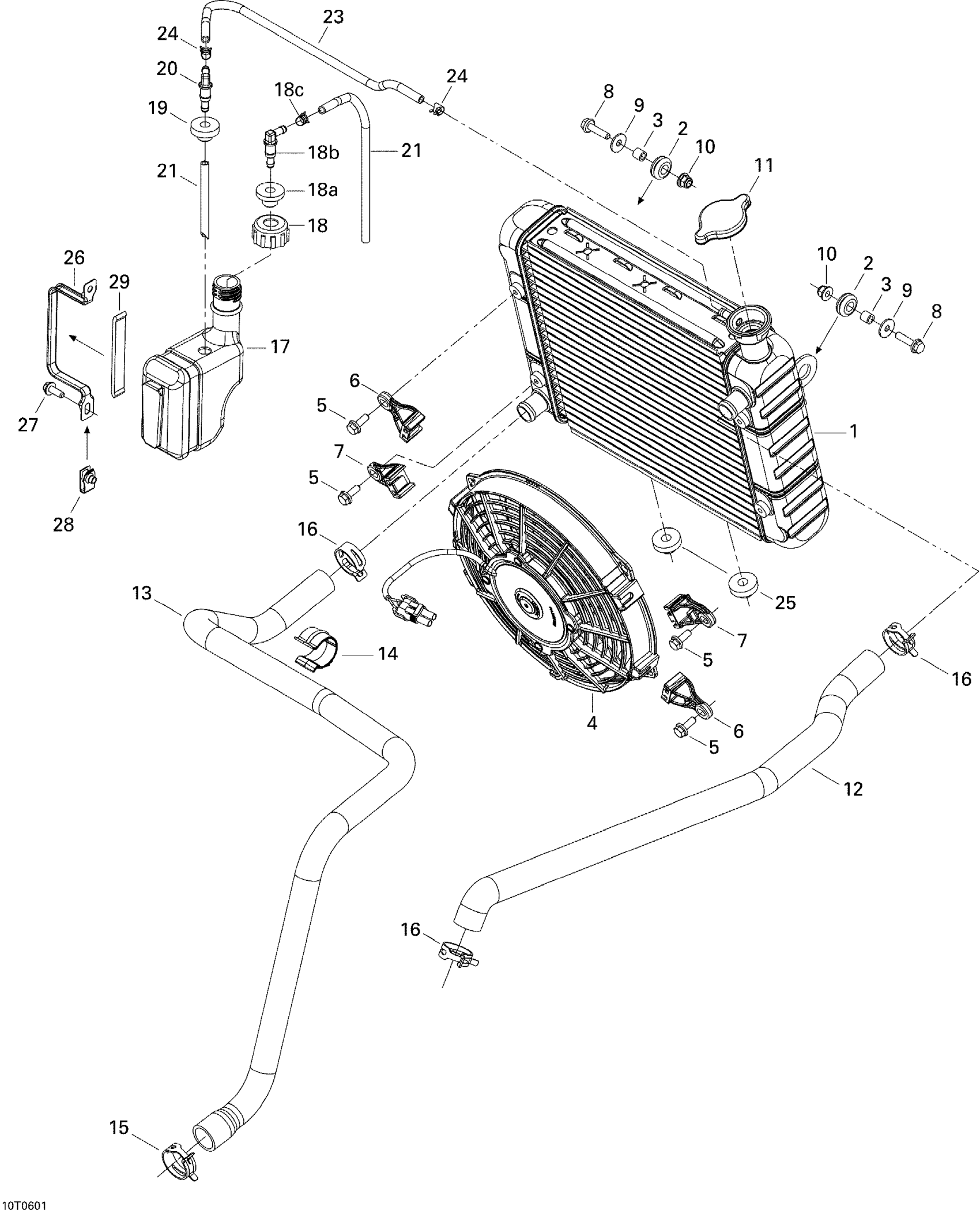

Can-Am Outlander 800 XT 4 X 4, 2006 01- Cooling System Diagram
#
Description
Price
1
RADIATOR - Call your local BRP dealership
709200120
Unavailable
2
Grommet
709000582
Unavailable
3
Bushing
293900105
Unavailable
4
Fan
709200124
Unavailable
5
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
6
FAN SUPPORT - Call your local BRP dealership
709200125
Unavailable
7
FAN SUPPORT - Call your local BRP dealership
709200126
Unavailable
8
Hex. Flange Screw M6 X 25
207662544
Unavailable
9
Flat Washer
250200082
Unavailable
10
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
11
Radiator Pressure Cap
709200207
Unavailable
12
RADIATOR INLET HOSE - Call your local BRP dealership
709200130
Unavailable
13
RADIATOR OUTLET HOSE - Call your local BRP dealership
709200131
Unavailable
14
Retainer
275500526
Unavailable
15
Norma Spring Clamp
293650108
Unavailable
16
Norma Spring Clamp
293650109
Unavailable
17
COOLANT TANK - Call your local BRP dealership
709200099
Unavailable
18
Cap
709200586
Unavailable
18a
Grommet
293830136
Unavailable
18b
Male Connector
414580700
Unavailable
18c
Spring Clamp
414554800
Unavailable
19
Grommet
709200285
Unavailable
20
Elbow Male Connector
414580600
Unavailable
21
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
23
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
24
Spring Clamp
414554800
Unavailable
25
Grommet
709200285
Unavailable
26
TANK ANCHOR - Call your local BRP dealership
709200080
Unavailable
27
Hex. Flange Screw M6 X 16
210261650
Unavailable
28
Panel Nut M6 X 1.0
250100198
Unavailable
29
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
