- Outlander 6x6 (International & T3), 2014
10- Electrical System _20T1423

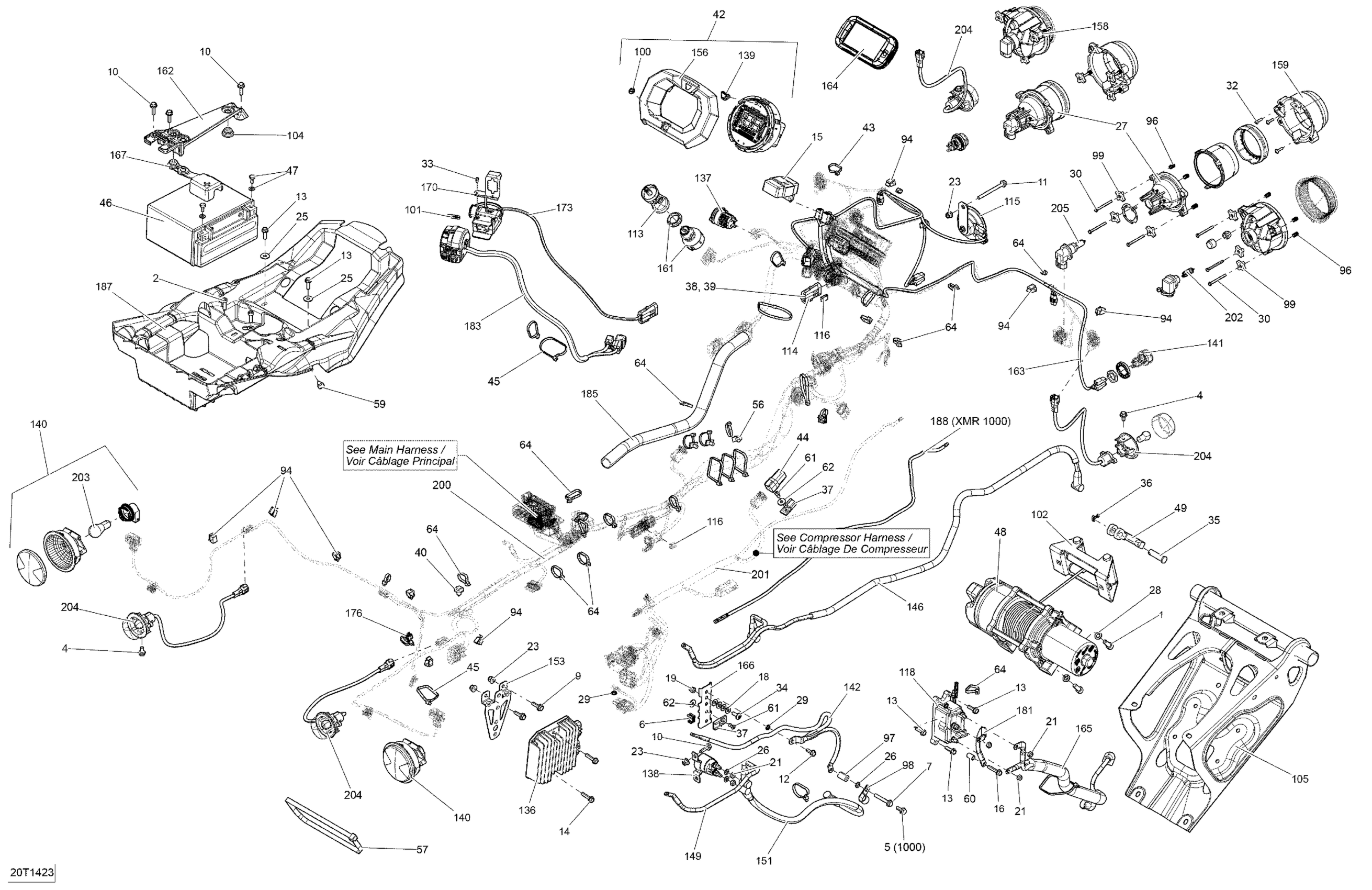

Can-Am Outlander 6x6 (International & T3), 2014 10- Electrical System _20T1423 Diagram
#
1
Socket Head Screw M8 X 20
205082044
Unavailable
2
Socket Head Screw M6 X 20, Scotch Grip
205562044
Unavailable
4
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
5
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
6
Not Available As Spare Parts
XXX
Unavailable
7
Not Available As Spare Parts
XXX
Unavailable
9
Hex. Flange Screw M6 X 20
207662044
Unavailable
10
Hex. Flange Screw M6 X 20
207662084
Unavailable
11
Hex. Flange Screw M6 X 70
207667044
Unavailable
12
Hex. Flange Screw M6 X 20
210262040
Unavailable
13
Hexagonal Head Screw
210262050
Unavailable
14
Hex. Flange Forming Screw M6 X 25
210262580
Unavailable
15
Flasher Unit
710003239
Unavailable
16
Not Available As Spare Parts
XXX
Unavailable
17
BRP Logo 20MM x 2MM | XTP
516006224
Unavailable
18
Flat Washer
224061121
Unavailable
19
Domed Nut M6
232361493
Unavailable
21
Elastic Stop Nut M6
232561414
Unavailable
23
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
25
Stainless Steel Flat Washer
234062670
Unavailable
26
Lock Washer Helical M6
234161601
Unavailable
27
High Beam Ass'y | Includes 11 to 12
710002525
Unavailable
28
Lock Washer 8 mm
234181401
Unavailable
29
External Serrated Lock Washer 6 mm
234461608
Unavailable
30
Hex. Screw K40 X 45
250000718
Unavailable
32
Phillips Screw K40 X 16
250000723
Unavailable
33
Hex. Cap Screw 6-32 X 1/4" | XT Models
250000153
Unavailable
34
Torx Screw M6 X 16
250000223
Unavailable
35
Clevis Pin
250400021
Unavailable
36
Cotter Pin
250400022
Unavailable
37
Clip
270000141
Unavailable
38
Wire Seal
278000216
Unavailable
39
Female Terminal Housing, 3 Circuits | XT Models
278000281
Unavailable
40
Mount Dart
293730040
Unavailable
42
Speedometer Ass'y | DPS, XT
710003923
Unavailable
42a
Lens
415129320
Unavailable
43
Tie Wrap 142 mm
293750002
Unavailable
44
Housing
710003006
Unavailable
45
Tie Wrap 368 mm
293750008
Unavailable
46
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
47
Battery Bolt Kit
250000282
Unavailable
48
WINCH - Call your local BRP dealership | Europe
705008546
Unavailable
49
Winch Hook Kit
705014949
Unavailable
56
Not Available As Spare Parts
XXX
Unavailable
57
Tie-rap 627 mm
293750041
Unavailable
59
Rubber Bumper
293830005
Unavailable
60
Not Available As Spare Parts
XXX
Unavailable
61
Pop Rivet 3/16"
390402300
Unavailable
62
Washer | DS 650 X
391301600
Unavailable
64
Tie-Rap 180 mm
414115200
Unavailable
94
Clip
414227300
Unavailable
96
Spring
517168600
Unavailable
97
Not Available As Spare Parts
XXX
Unavailable
98
Open Clamp
518321570
Unavailable
99
Handle
572106600
Unavailable
100
BRP Logo13 mm
704904615
Unavailable
101
DPS LABEL - Call your local BRP dealership | Europe
704901835
Unavailable
102
Fairlead_Roller Kit
715007699
Unavailable
104
Stopper Rubber
705014429
Unavailable
105
Front Bumper Support
705016893
Unavailable
113
Black, Electronic Key
710000817
Unavailable
113
Grey, Electronic Key
710002183
Unavailable
114
Connector Ass'y | STD / Includes 7 to 10
710000917
Unavailable
115
Horn
710004791
Unavailable
116
Clip
710000992
Unavailable
118
Winch Solenoid | XT Models
710001000
Unavailable
131
Voltage Regulator | XT, XTP, LTD
710001191
Unavailable
137
DC Outlet
710001248
Unavailable
138
Starter Relay
710007777
Unavailable
139
Button
710001473
Unavailable
140
Tail Light Ass'y | Includes 32 to 33
710001645
Unavailable
141
Day Light | Europe
710001726
Unavailable
142
Ground Cable
710004382
Unavailable
146
Connector Ass'y
710004375
Unavailable
149
Positive Cable
710004376
Unavailable
151
POSITIVE CABLE - Call your local BRP dealership
710001750
Unavailable
153
Rectifier Support
710001752
Unavailable
156
Trim Ring
710002092
Unavailable
158
Low Beam | Includes 54 to 55
710006177
Unavailable
160
RH High Front Housing
710002291
Unavailable
160
LH High Front Housing
710002292
Unavailable
161
Ignition Switch
710008400
Unavailable
162
Fixation Plate
710002404
Unavailable
163
Harness Ass'y | Includes 1 to R1, Europe
710002481
Unavailable
164
Not Available As Spare Parts
XXX
Unavailable
165
Winch Cables
710004378
Unavailable
166
BRACKET - Call your local BRP dealership
710002567
Unavailable
167
Battery Cable Cap
710006729
Unavailable
170
Winch Switch Support | XT, XTP, XMR, LTD,
710002631
Unavailable
173
Winch Switch | XT, XTP, XMR, LTD,
710002724
Unavailable
176
Tie-Rap Clip
710002896
Unavailable
181
CABLE_NEGATIVE - Call your local BRP dealership
710003003
Unavailable
183
Multi-Function Handle
710004040
Unavailable
183
Switch Kit | XT, XTP, XMR, LTD
703500920
Unavailable
185
Not Available As Spare Parts
XXX
Unavailable
187
Battery Support
710006561
Unavailable
188
Not Available As Spare Parts
XXX
Unavailable
200
Main Harness
710005005
Unavailable
201
Not Available As Spare Parts
XXX
Unavailable
202
Bulb 12V 55W
715900141
Unavailable
203
Bulb
520000758
Unavailable
204
Flasher | Europe
710002964
Unavailable
205
Halogen Bulb
415129249
Unavailable
