05- Gear Box 2 _45R1423b

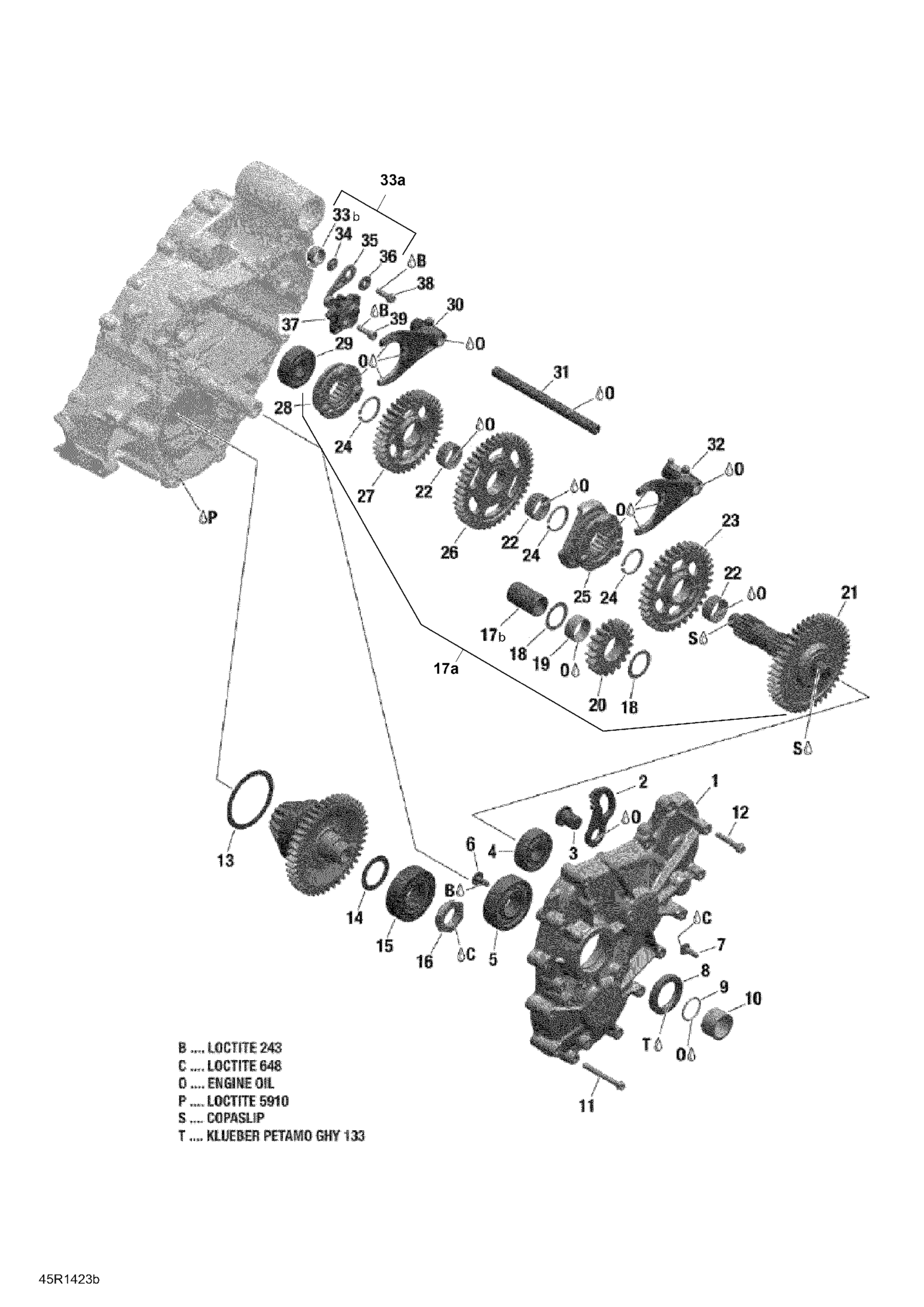

Can-Am Outlander 6x6 (International & T3), 2014 05- Gear Box 2 _45R1423b Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Parking Lock Lever
420257654
Unavailable
3
Collar Sleeve
420647123
Unavailable
4
Ball Bearing
420932816
Unavailable
5
Ball Bearing
420932822
Unavailable
6
Torx Screw M6 X 16
420241529
Unavailable
7
Distance Screw M6
420441433
Unavailable
8
Oil Seal
420950089
Unavailable
9
O-Ring
420631612
Unavailable
10
Distance Ring
420647250
Unavailable
11
Torx Flange Screw M6 X 55
420440702
Unavailable
12
Torx Flange Screw M6 X 35
420440274
Unavailable
13
Shim Set
420281313
Unavailable
14
Shim Set
420281315
Unavailable
15
Tapered Roller Bearing 32206 BJ2/QCL7CVA
420632751
Unavailable
16
Hex. Nut M24 X 1.5
420842582
Unavailable
17a
Not Available As Spare Part - Friction Washer
Unavailable
17b
Not Available As Spare Part - Friction Washer
Unavailable
18
Thrust Washer
420427011
Unavailable
19
Needle Bearing
420932930
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Needle Bearing
420632070
Unavailable
23
Gear Pinion, 34 Teeth
420434873
Unavailable
24
Retaining Ring
420845772
Unavailable
25
Shifting Sleeve
420257954
Unavailable
26
Gear Pinion, 46 Teeth
420434865
Unavailable
27
Gear Pinion, 36 Teeth
420434857
Unavailable
28
Shifting Sleeve
420257945
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
30
Shift Fork
420657365
Unavailable
31
Pivot
420258394
Unavailable
32
Shift Fork Ass'y
420258515
Unavailable
33a
Index Lever | Includes 33a to 37
420248533
Unavailable
33b
Not Available As Spare Part - Friction Washer
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
35
Not Available As Spare Part - Friction Washer
Unavailable
36
Not Available As Spare Part - Friction Washer
Unavailable
37
Not Available As Spare Part - Friction Washer
Unavailable
38
Torx Flange Screw M6 X 20
420440207
Unavailable
39
Allen Screw M6 X 20
420241939
Unavailable
