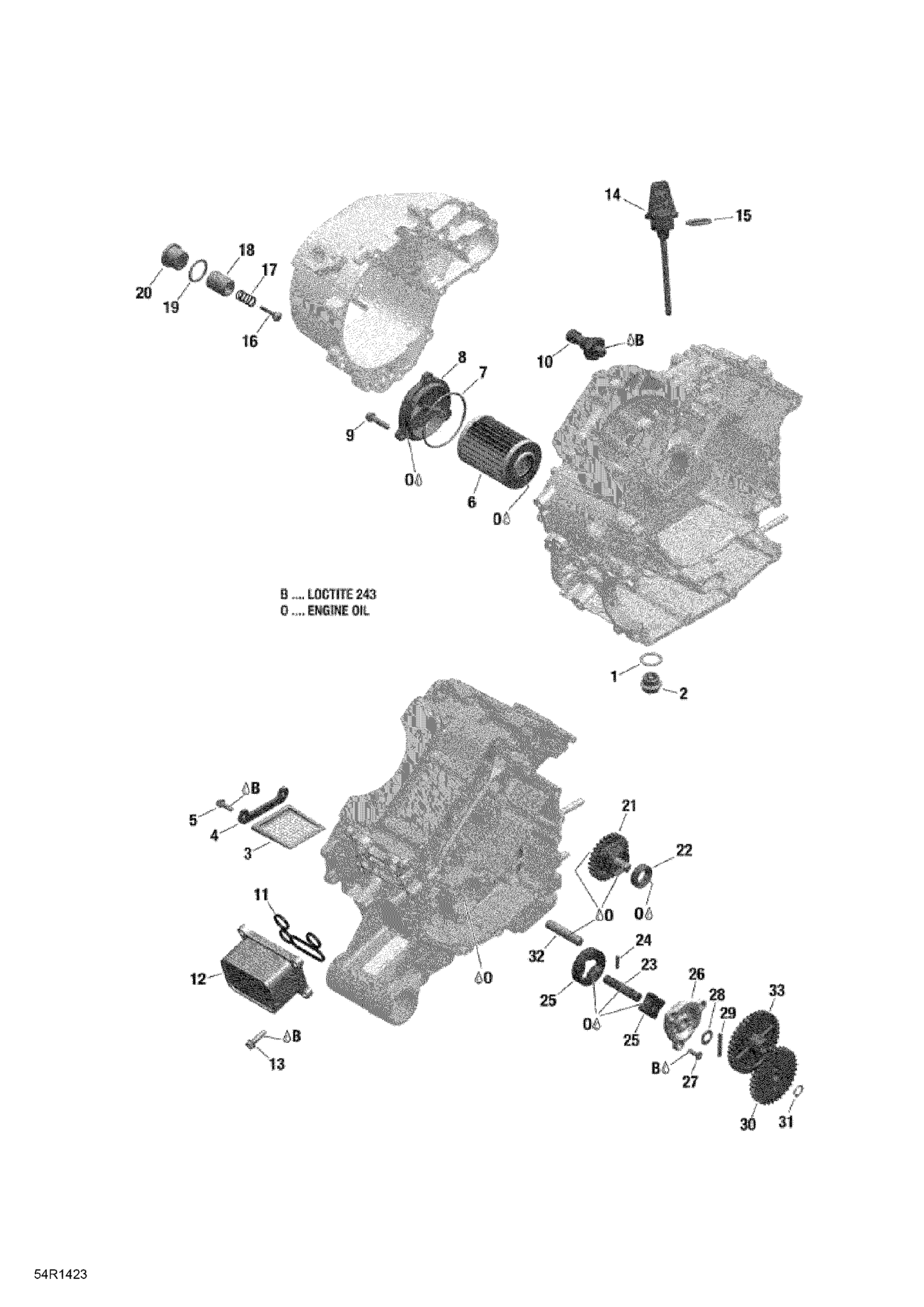

Can-Am Outlander 6x6 (International & T3), 2014 Engine Lubrification _54R1423 Diagram

#

Description
Price

1

Crush Washer

420552280

$3.70

2

Drain Plug M18 X 1.5

420840278

$23.99

3

Oil Sieve

420256322

$28.49

4

Cover Sieve

420612070

$4.14

5

Taptite Screw M5 X 16

420941928

Unavailable

6

Oil Filter

420256188

$13.77

7

O-Ring

420230923

$3.17

8

Oil Filter cover

420612135

$11.63

9

Torx Flange Screw M6 X 25

420641238

$3.27

10

Oil Pressure Switch

420256915

$40.99

11

Oil Seal

420430325

$8.85

12

Radiator

420890181

$95.49

13

Torx Flange Screw M6 X 16

420641048

$2.96

14

Oil Dipstick

420256802

$17.05

15

O-Ring

420631640

$2.11

16

Pressure Relief Valve

420656370

$19.19

17

Compression Spring

420939485

$12.99

18

Housing

420256487

$7.41

19

Gasket Ring

420650465

$13.16

20

Plug Screw

420640271

$13.77

21

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$88.99

22

Oil Seal

420430555

$19.99

23

Oil Pump Shaft

420237059

$29.49

24

Needle Pin

420232731

$4.01

25

Oil Pump Rotor

420256348

$77.99

26

Oil Pump Cover

420210646

$48.49

27

Torx Head Screw M5 X 16

420640823

$1.90

28

Thrust Washer

420827590

$4.01

29

Needle Pin

420232431

$4.39

30

Oil Pump Gear, 33 Teeth

420434320

$13.77

31

Snap Ring

420245330

$1.79

32

Location Pin 10 M6x50

420229302

$3.17

33

Idle Gear, 38 Teeth

420434300

$13.77
