01- Crankcase _01R1423

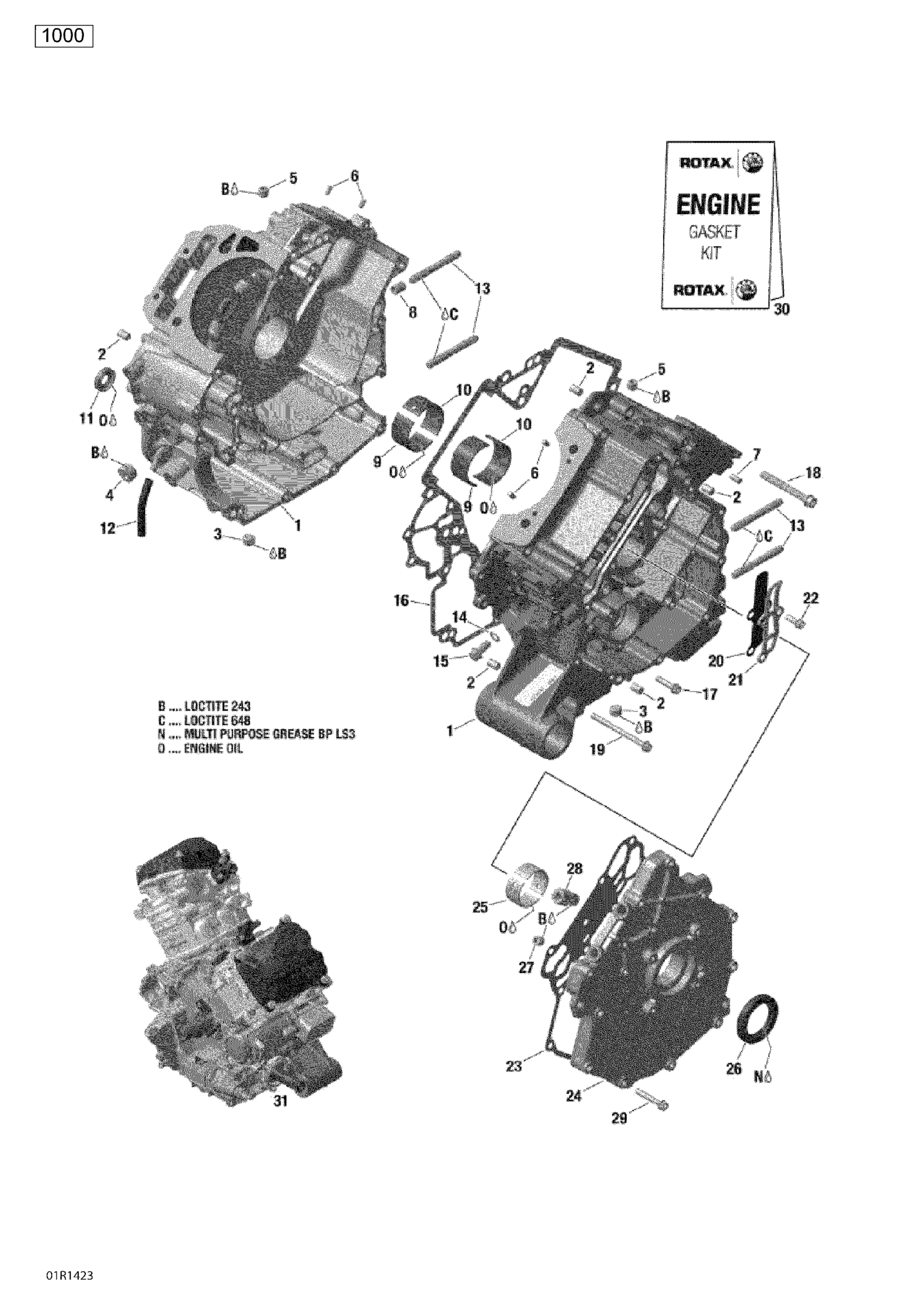

Can-Am Outlander 6x6 (International & T3), 2014 01- Crankcase _01R1423 Diagram
#
Description
Price
1
Crankcase Ass'y | Includes 1 to 12
420685253
Unavailable
2
Center Pin 8 X 12
420632010
Unavailable
3
Plug Screw M12 X 1.5
420840657
Unavailable
4
Plug Screw M18 X 1.5 - Call your local BRP dealership
420240170
Unavailable
5
Plug Screw M10 X 1
420641323
Unavailable
6
Drive Pin 5 X 10
420929650
Unavailable
7
Needle Pin
420932780
Unavailable
8
Dowel Pin 10 X 13
420929670
Unavailable
9
Plain Bearing
420233960
Unavailable
10
Plain Bearing
420233965
Unavailable
11
Oil Seal
420650315
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Stud
420240816
Unavailable
14
Sealing Ring
420950141
Unavailable
15
Torx Flange Screw M8 X 16
420440852
Unavailable
16
Gasket
420651227
Unavailable
17
Torx Flange Screw M6 X 25
420641238
Unavailable
18
Torx Flange Screw M8 X 65
420440402
Unavailable
19
Torx Flange Screw M6 X 75
420440657
Unavailable
20
Reed Valve
420224721
Unavailable
21
Reed Valve Stop
420224725
Unavailable
22
Torx Flange Screw M6 X 16
420641048
Unavailable
23
Gasket
420651211
Unavailable
24
PTO Cover Ass'y | Includes 25a to 29
420612335
Unavailable
25
Bearing Sleeve
420233995
Unavailable
26
Oil Seal
420631933
Unavailable
27
Plug Screw M10 X 1
420641323
Unavailable
28
Hose Nipple
420256332
Unavailable
29
Torx Flange Screw M6 X 35
420440274
Unavailable
30
Gasket Kit, Engine
420684150
Unavailable
31
Long Block 1000
420101012
Unavailable
