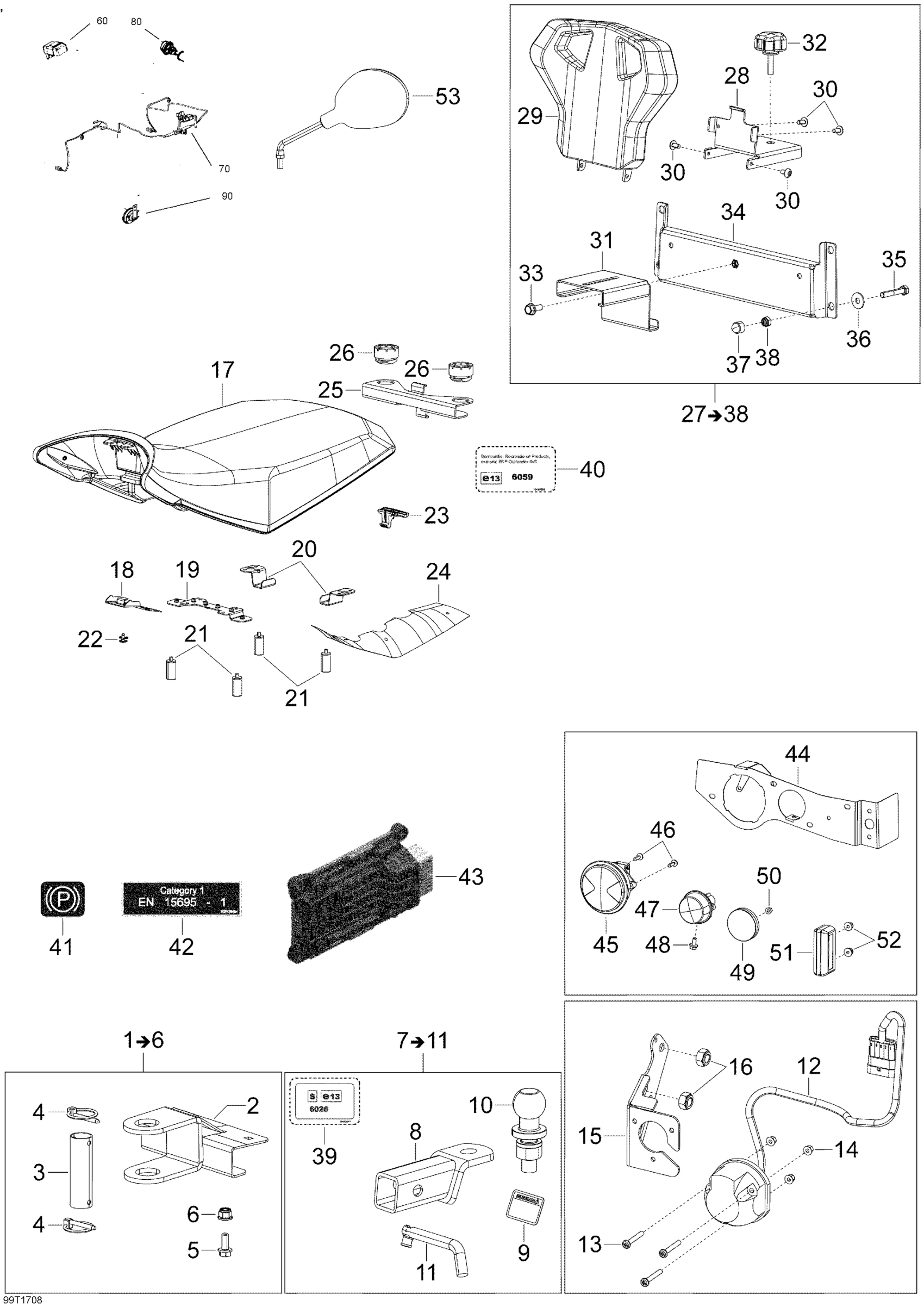

Can-Am Outlander 6X6 - 650 EFI, 2017 11- T3 Parts Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Front Coupling Device

705204452

Unavailable

3

Pin

605456511

Unavailable

4

Pin

605456518

Unavailable

5

Carriage Bolt, M8 X 20

207782044

Unavailable

6

Hex. Flange Elastic Nut M8

233281414

Unavailable

7

Trailer Hitch Kit | Package PRO International

705210328

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Hitch Pin

705204490

Unavailable

12

Trailer Harness

515177667

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Flange Elastic Nut M5

233251434

Unavailable

15

Plug Fastening Plate

705204572

Unavailable

16

Elastic Stop Nut M10

232500416

Unavailable

17

Seat Ass'y | Model-T3

708002208

Unavailable

18

Front Bottom Support | Model-T3

605456520

Unavailable

19

Support Central Cushion

510005986

Unavailable

20

Support Rear Cushion

510005988

Unavailable

21

RUBBER DAMPER - Call your local BRP dealership | Model-T3

605456546

Unavailable

22

Rivet | Model-T3

293150067

Unavailable

23

Latch

708000909

Unavailable

24

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

25

RAISER, SEAT (REAR) - Call your local BRP dealership | Model-T3

705204016

Unavailable

26

Bumper Rubber

708000760

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Angle Support

705205085

Unavailable

29

Backrest | Model-T3

708001794

Unavailable

30

Torx Truss Screw M6 x 12 | Model-T3

250000675

Unavailable

31

Rubber

605454799

Unavailable

32

Backrest Fixing Body Painted | Model-T3

708001607

Unavailable

33

Handle M8 X 35 | Model-T3

510003533

Unavailable

34

Hex. Flange Screw M8 X 20

207682046

Unavailable

35

Back Rest Support

708001611

Unavailable

36

Hex. Screw M8 X 45

207084544

Unavailable

37

Stainless Steel Flat Washer

234082670

Unavailable

38

Cover | Model-T3

28056

Unavailable

39

Hex. Elastic Stop Nut M8

232581414

Unavailable

40

Sleeve

708002168

Unavailable

41

Instruction Decal | Package-XTT3

704904417

Unavailable

42

Instruction Decal | Package-XTT3

704904599

Unavailable

43

P-Decal, T3 | Package-XTT3

605356244

Unavailable

44

Cabin Decal, T3 | Package-XTT3

605456594

Unavailable

45

LH Tail Light Plate | Model-T3

605356527

Unavailable

45

RH Tail Light Plate | Model-T3

605356528

Unavailable

46

Tail Light Ass'y | Includes 32 to 33

710001645

Unavailable

47

Torx Screw K50 X 16

250000720

Unavailable

48

Flasher | Europe

710002964

Unavailable

49

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

Unavailable

50

Red Reflector

705011221

Unavailable

51

Flange Elastic Nut M5

233251434

Unavailable

52

License Light

710002055

Unavailable

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

54

LH Mirror | Europe

709400406

Unavailable

54

RH Mirror | Europe

709400407

Unavailable

60

Flasher Unit

710003239

Unavailable

70

Harness Ass'y | Model-Europe

710004842

Unavailable

80

Day Light | Europe

710001726

Unavailable

90

Horn

710004791

Unavailable
