09- Rear Frame

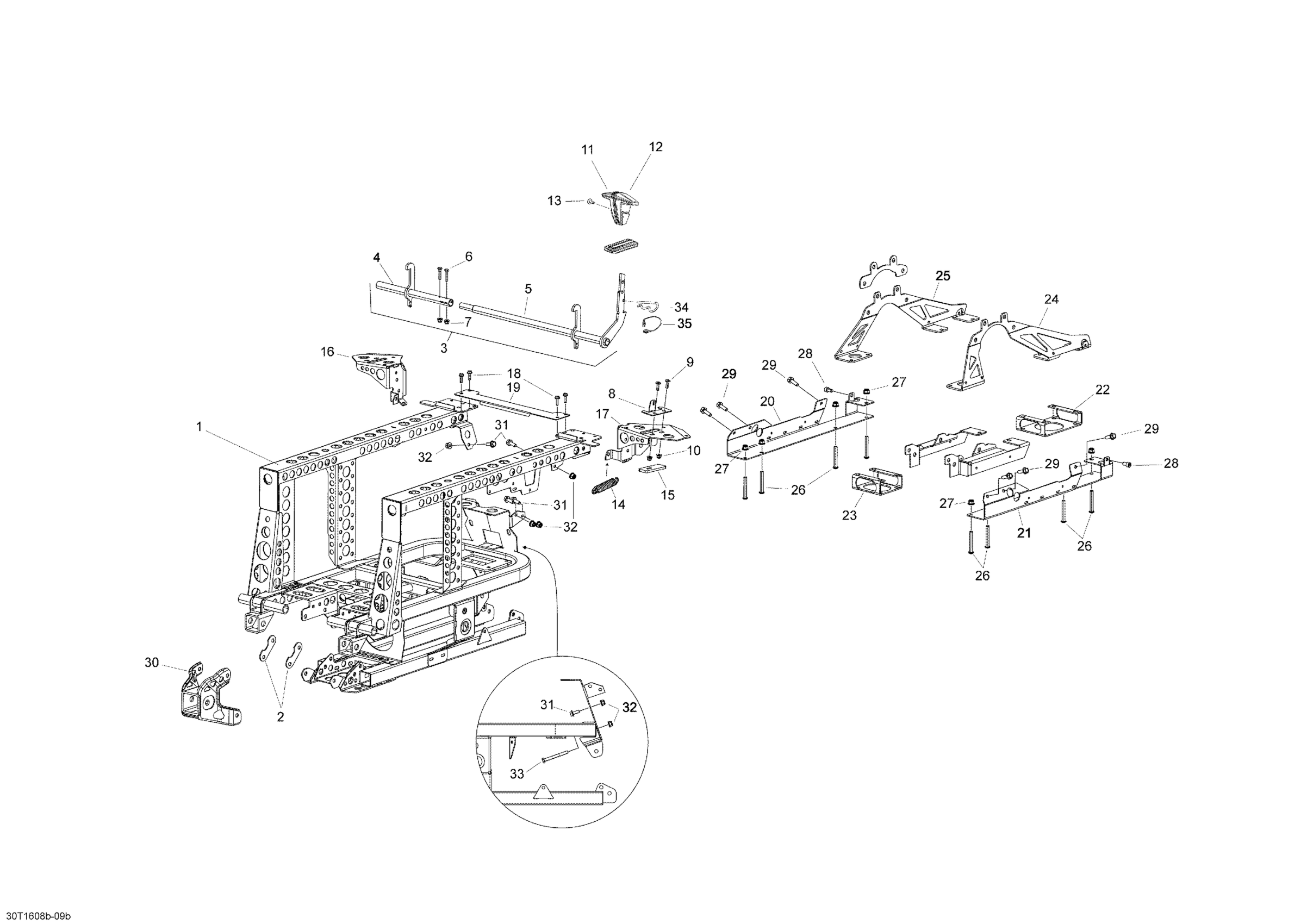

Can-Am Outlander 6X6 - 650 EFI, 2016 09- Rear Frame Diagram
#
1
Rear Frame Painted
705204221
Unavailable
2
Support Plate
705203564
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
LH Tube
705203669
Unavailable
5
RH Tube
705203670
Unavailable
6
Hex. Screw M6 X 30
207063044
Unavailable
7
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
8
Lever Support
705203834
Unavailable
9
Torx Screw M6 X 20
250000722
Unavailable
10
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
11
Left Half Knob
705008420
Unavailable
12
Right Half Knob
705008048
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Spring
415107100
Unavailable
15
Rubber Collar
708301280
Unavailable
16
LH Rear Fender Support
705203611
Unavailable
17
RH Rear Fender Support
705203612
Unavailable
18
Hex. Flange Screw M6 X 20, Scotch Grip
250000331
Unavailable
19
FILLER PLATE - Call your local BRP dealership
705203954
Unavailable
20
LH Lower Beam Reinforcement
705203724
Unavailable
21
RH Lower Beam Reinforcement
705203725
Unavailable
22
Front Support Plate
705203726
Unavailable
23
Rear Support Plate
705203727
Unavailable
24
LH Differential Support Reinforcement
705203728
Unavailable
25
RH Differential Support Reinforcement
705203729
Unavailable
26
Torx Screw M8 X 60, Scotch Grip
250000383
Unavailable
27
Hex. Elastic Flange Nut M8
233281416
Unavailable
28
Forming Screw HD.DIN.7500E
250000678
Unavailable
29
Hex Forming Screw DIN.7500D
250000376
Unavailable
30
Trailer Hitch
715006155
Unavailable
31
Hex. Flange Screw M8 X 20
207682046
Unavailable
32
Hex. Elastic Flange Nut M8
233281416
Unavailable
33
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
34
Cotter Spring
505073670
Unavailable
35
Retainer Cable
293750069
Unavailable
