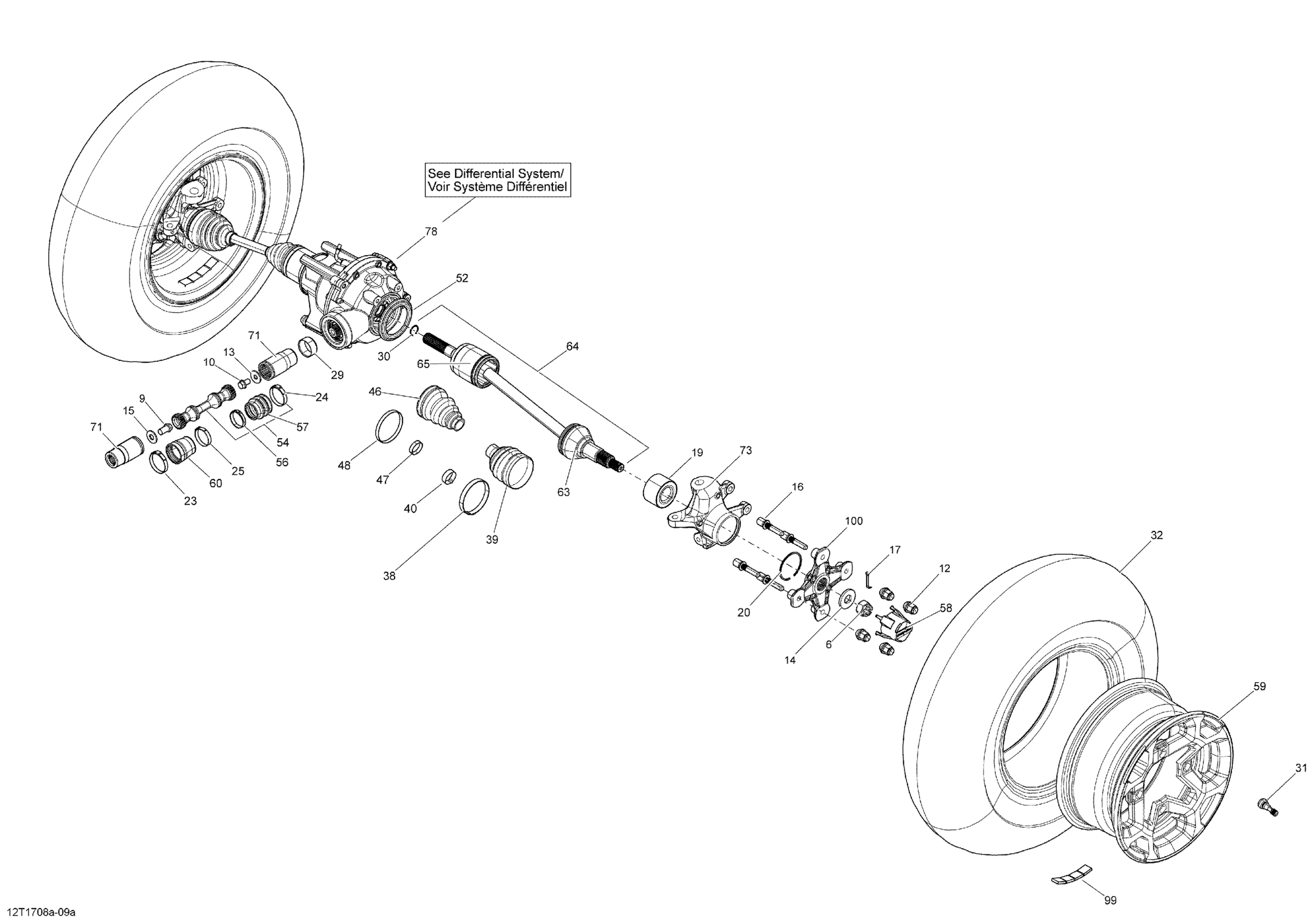

Can-Am Outlander 6X6 - 650 EFI, 2016 Drive System, Front Diagram

#

Description
Price

6

Hex. Flange Castellated Nut M18

232291413

$7.98

9

Hex Flange Screw M12 X 20

250001042

$1.90

10

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

12

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$8.79

12

Black, Wheel Nut M10 X 1.25

250100184

$4.51

13

Flat Washer M10 | 4X4

250200014

$1.49

14

Conical Spring Washer M18

250200171

$7.65

15

Flat Washer M12

250200102

$2.11

16

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

17

Cotter Pin

250400036

$2.11

19

Ball Bearing

293350150

$52.99

20

Circlip

293370019

$4.68

23

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

24

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

25

Oetiker Gear Clamp

293650199

$9.69

29

Wear Ring | 4X4

705400036

$26.49

30

Circlip Joint | Not shown

705401349

$6.50

31

Rim Valve With Cap

705400193

$8.69

32

Tire | STD

705401331

$159.99

32

Tire | XT

705401333

$144.99

38

Oetiker Clamp

715900282

$5.29

39

Boot Kit, Wheel Side

705401345

$42.49

40

Oetiker Clamp, Small

715900283

$5.29

46

Boot Kit, Differential Side

705401346

$42.49

47

Oetiker Clamp, Small

715900261

$5.29

48

Oetiker Clamp, Large

715900284

$5.29

52

Wear Sleeve

705400780

$7.90

54

Propeller Shaft | Includes 1 to 2

705400913

$211.99

56

Oetiker Gear Clamp 36.1MM

509000045

$8.29

57

Rubber Boot

715900118

$14.30

58

Wheel Cap

705400928

$10.49

59

Silver Front Rim | STD

705401088

$190.49

59

Deep Black, 12 Inch Rim X 6 | XT CAMO

705401127

$169.49

59

Black, Rim | XT

705401420

$190.49

59

Black, Rim

705401371

$99.99

60

Rubber Boot

705401093

$5.00

63

CV Joint

705401344

$259.49

64

RH Front - Premium CV Axle

705401116

$243.99

64

LH Front - Premium CV Axle | Includes 43 to 51

705401115

$243.99

65

RH Plunging Joint

705401348

$259.49

65

LH Plunging Joint

705401350

$259.49

71

Front Bushing Shaft Kit | 4X4

703500678

$114.99

73

LH Knuckle

705403307

$179.99

73

RH Knuckle

705403308

$179.99

78

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

99

1/2 Oz Weight

219704465

$3.89

100

Wheel Hub Ass'y

705501716

$105.99
