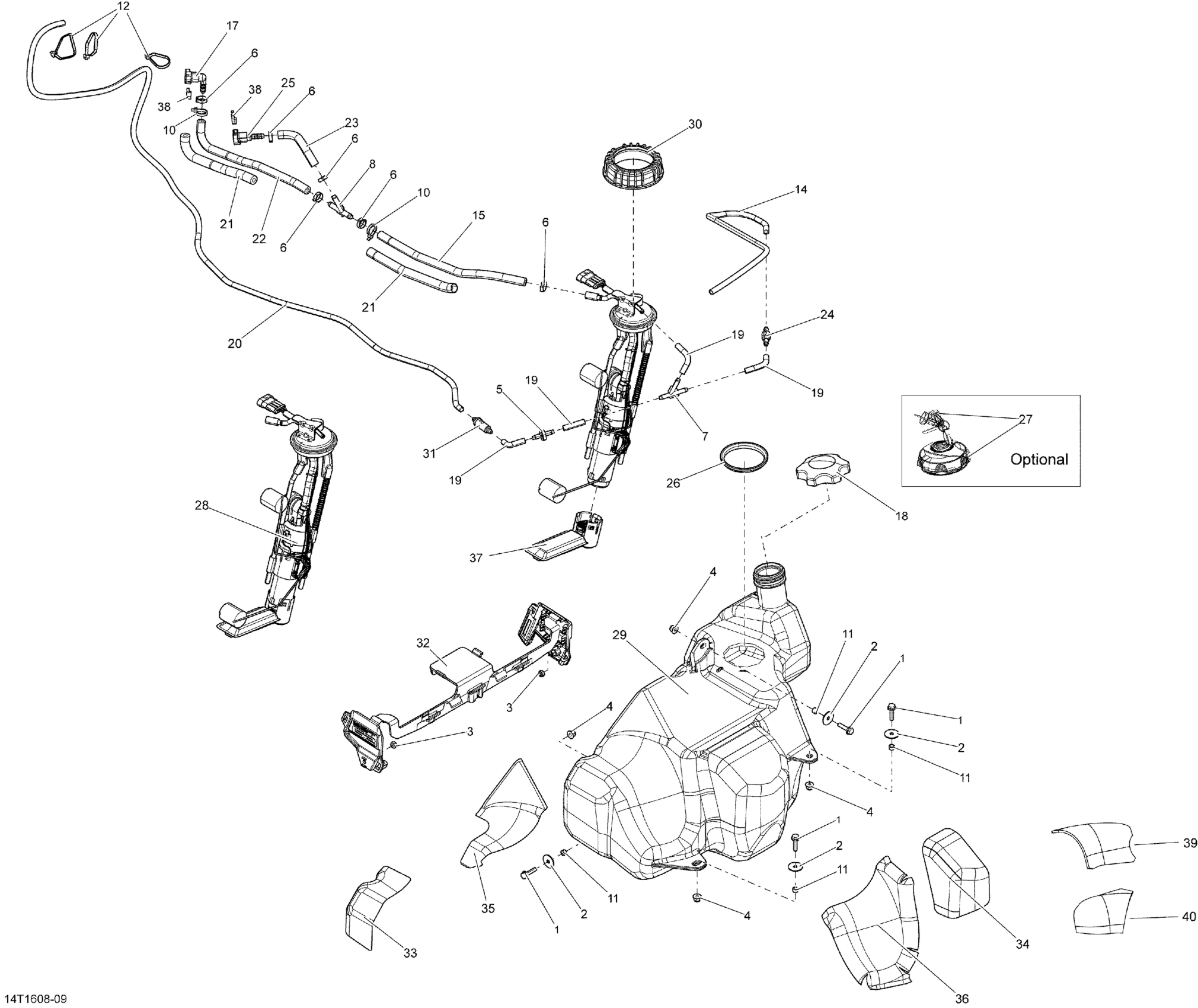

Can-Am Outlander 6X6 - 650 EFI, 2016 02- Fuel System Diagram
#
1
Hex. Flange Screw M6 X 25
207662544
Unavailable
2
Washer
224060251
Unavailable
3
Hex. Elastic Stop Nut M6
232561600
Unavailable
4
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
5
Check Valve
275500398
Unavailable
6
Crimp Clamp, 15.3-706R
293650047
Unavailable
7
Y-Fitting
293710059
Unavailable
8
Y-Fitting, 5/16''
293710136
Unavailable
10
Tie Wrap 142 mm
293750002
Unavailable
11
Bushing | DS 650 X
293900104
Unavailable
12
Tie-Rap 180 mm
414115200
Unavailable
14
Polyurethane Hose 10000Mm Long
219704410
Unavailable
15
Was 709000163 Fuel Line
219704440
Unavailable
17
Quick Fitting 45° Ass'y | Includes 34 to 35
709000627
Unavailable
18
Fuel Tank Cap
513033025
Unavailable
19
Polyurethane Hose 10000Mm Long
219704410
Unavailable
20
Polyurethane Hose 10000Mm Long
219704410
Unavailable
21
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
22
Was 709000163 Fuel Line
219704440
Unavailable
23
Was 709000163 Fuel Line
219704440
Unavailable
24
Check Valve
513033469
Unavailable
25
Quick Fitting 45° Ass'y | Includes 34 to 35
709000627
Unavailable
26
Seal
709000208
Unavailable
27
Locking Cap Tank | Europe
860200387
Unavailable
28
Fuel Pump | Includes 10a to 10b
709001517
Unavailable
29
Fuel Tank Ass'y | Includes 1 to 2
709000799
Unavailable
30
Fuel Pump Module Nut
709000328
Unavailable
31
Filter
709000330
Unavailable
32
Hose Support Ass'y
709000359
Unavailable
33
Heat Reflective Sheet
709000381
Unavailable
34
Heat Reflective Sheet
709001071
Unavailable
35
Heat Reflective Sheet
709000387
Unavailable
36
Heat Reflective Sheet
709000388
Unavailable
37
Fuel Pre-Filter Kit
709000389
Unavailable
38
Padlock with Key
707000666
Unavailable
39
Heat shield
709000527
Unavailable
40
Heat shield
709000528
Unavailable
