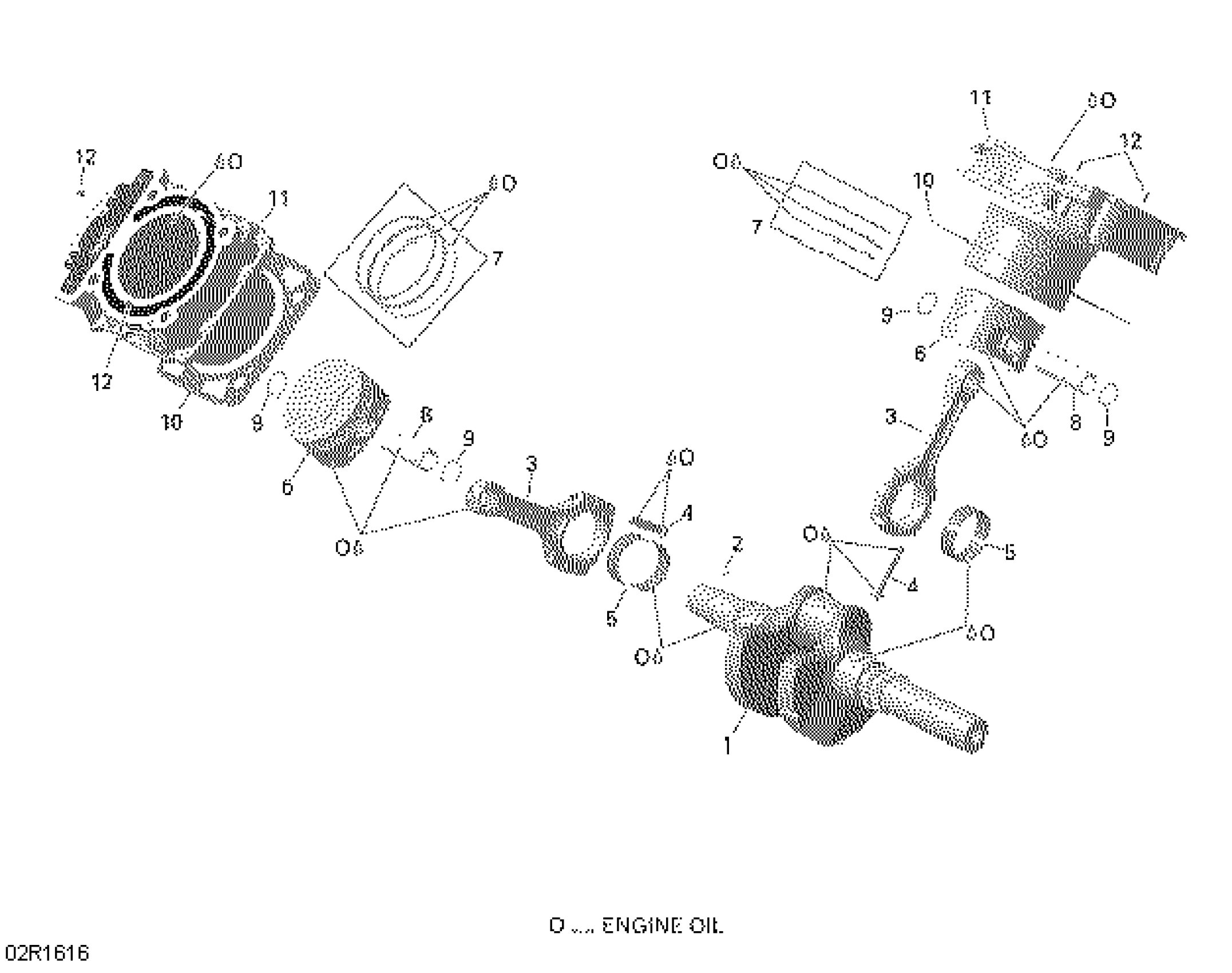

Can-Am Outlander 6X6 - 650 EFI, 2016 Crankshaft and Pistons - 650 EFI Diagram

#

Description

Price

1

Crankshaft Ass'y

420219746

$628.49

2

Woodruff Key 4 X 5

420246570

$3.38

3>4

Connecting Rod Ass’y | Includes 3 to 4

420217425

$228.99

4

Connecting Rod Screw M8 X 1

420641645

$14.28

5

Plain Bearing 40 X 43 X 15

420233980

$28.49

6>7

Piston Ass'y, 82 mm | 330HO / Includes 7 to 8

420685712

$148.99

6>7

Piston Ass'y, Oversize, 82.208 mm | Includes 6 to 7

420684111

$148.99

7

Piston Ring Set | 330HO

420684384

$82.99

8

Piston Pin

420216270

$25.99

9

Piston Circlip

420845107

$4.89

10

Gasket

420630210

$12.71

11

Cylinder With Sleeve

420413211

$414.99

12

Drive Pin 5 X 10

420929650

$1.68
