- Outlander 6X6 650 EFI, 2015
11- T3 Parts _99T1528

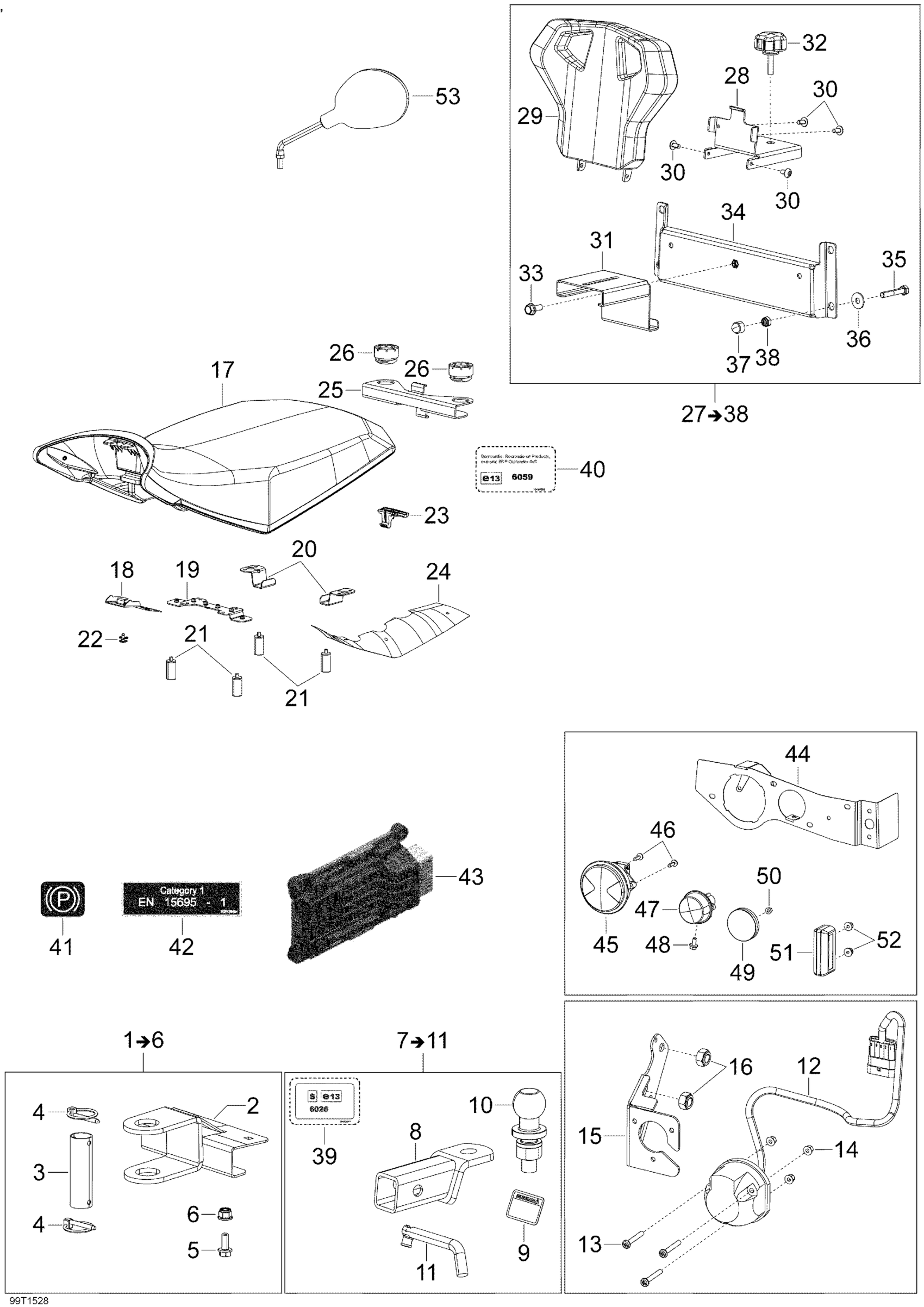

Can-Am Outlander 6X6 650 EFI, 2015 11- T3 Parts _99T1528 Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Front Coupling Device
705204452
Unavailable
3
Pin
605456511
Unavailable
4
Pin
605456518
Unavailable
5
Carriage Bolt, M8 X 20
207782044
Unavailable
6
Hex. Flange Elastic Nut M8
233281414
Unavailable
7
Coupling Ball Ass'y | Includes 7 To 11
715002872
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Hitch Pin
705204490
Unavailable
12
Trailer Harness
515177667
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Flange Elastic Nut M5
233251434
Unavailable
15
Plug Fastening Plate
705204572
Unavailable
16
Elastic Stop Nut M10
232500416
Unavailable
17
Seat Ass'y | Model-T3
708002208
Unavailable
18
Front Bottom Support | Model-T3
605456520
Unavailable
19
Support Central Cushion
510005986
Unavailable
20
Support Rear Cushion
510005988
Unavailable
21
RUBBER DAMPER - Call your local BRP dealership | Model-T3
605456546
Unavailable
22
Rivet | Model-T3
293150067
Unavailable
23
Latch
708000909
Unavailable
24
HEAT SHIELD - Call your local BRP dealership
705005761
Unavailable
25
RAISER, SEAT (REAR) - Call your local BRP dealership | Model-T3
705204016
Unavailable
26
Bumper Rubber
708000760
Unavailable
27
Not Available As Spare Part - Friction Washer
Unavailable
28
Angle Support | Model-T3
705204093
Unavailable
29
Backrest | Model-T3
708001794
Unavailable
30
Torx Truss Screw M6 x 12 | Model-T3
250000675
Unavailable
31
Backrest Fixing Body Painted | Model-T3
708001607
Unavailable
32
Handle M8 X 35 | Model-T3
510003533
Unavailable
33
Hex. Flange Screw M8 X 20
207682046
Unavailable
34
Back Rest Support
708001611
Unavailable
35
Hex. Screw M8 X 45
207084544
Unavailable
36
Stainless Steel Flat Washer
234082670
Unavailable
37
Cover | Model-T3
28056
Unavailable
38
Hex. Elastic Stop Nut M8
232581414
Unavailable
39
Instruction Decal | Package-XTT3
704904417
Unavailable
40
Instruction Decal | Package-XTT3
704904599
Unavailable
41
P-Decal, T3 | Package-XTT3
605356244
Unavailable
42
Cabin Decal, T3 | Package-XTT3
605456594
Unavailable
43
ECM, ENGINE CONTROL MODULE - Call your local BRP dealership | Model T3
420264613
Unavailable
44
LH Tail Light Plate | Model-T3
605356527
Unavailable
44
RH Tail Light Plate | Model-T3
605356528
Unavailable
45
Tail Light Ass'y | Includes 32 to 33
710001645
Unavailable
46
Torx Screw K50 X 16
250000720
Unavailable
47
Flasher | Europe
710002964
Unavailable
48
Hex. Flange Screw M6 X 12, Scotch Grip
207561244
Unavailable
49
Red Reflector
705011221
Unavailable
50
Flange Elastic Nut M5
233251434
Unavailable
51
License Light
710002055
Unavailable
52
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
53
LH Mirror | Europe
709400406
Unavailable
53
RH Mirror | Europe
709400407
Unavailable
