09- Rear Cargo Box

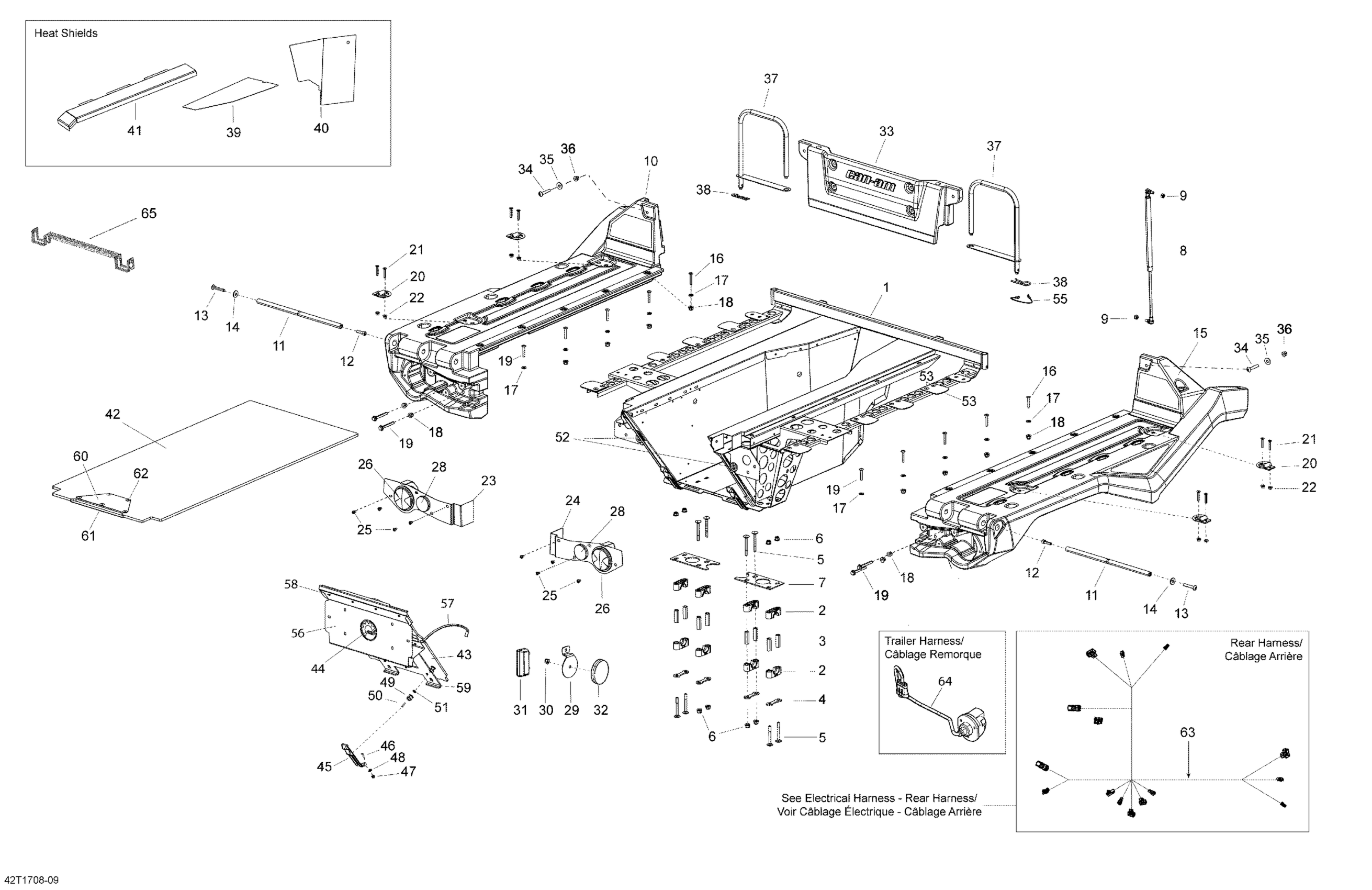

Can-Am Outlander 6X6 - 1000 EFI, 2017 09- Rear Cargo Box Diagram
#
1
METAL PLATFORM PAINTED - Call your local BRP dealership
605156657
Unavailable
2
Housing Half
506150400
Unavailable
3
Housing Bushing
506150500
Unavailable
4
Stopper Plate
506150600
Unavailable
5
Carriage Bolt M8 X 70
207787044
Unavailable
6
Hex. Flange Elastic Nut M8
233281414
Unavailable
7
Cargo Box Hinges Reinforcement Plate
705203836
Unavailable
8
Cargo Box Gas Shock
708301058
Unavailable
9
Hex. Elastic Stop Nut M8
232581414
Unavailable
10
Black, LH Side Platform | Model-Black
708303737
Unavailable
10
Black Lh Platform Kit | Model-Black North America
715003381
Unavailable
10
Yellow Side Platform LH | Model-Yellow
708301473
Unavailable
10
YELLOW LH PLATFORM KIT - Call your local BRP dealership | Model-Yellow North America
715003377
Unavailable
10
Quarry Gray-Side Platform LH | Model-Gray International
708301475
Unavailable
10
GREY LH PLATFORM KIT - Call your local BRP dealership | Model-Gray North America
715003379
Unavailable
11
Hinge Axis
708300935
Unavailable
12
Socket Head Screw M8 X 30
205083044
Unavailable
13
Torx Truss Screw M8 X 50
250000761
Unavailable
14
Stainless Steel Flat Washer
234082670
Unavailable
15
Black, RH Side Platform | Model-Black
708303738
Unavailable
15
BLACK, RH SIDE PLATFORM - Call your local BRP dealership | Model-Black North America
715002794
Unavailable
15
Yellow Side Platform RH | Model-Yellow
708301474
Unavailable
15
YELLOW SIDE PLATFORM RH - Call your local BRP dealership | Model-Yellow North America
715002796
Unavailable
15
QUARRY GRAY-SIDE PLATFORM RH - Call your local BRP dealership | Model-Gray International
708301476
Unavailable
15
QUARRY GRAY-SIDE PLATFORM RH - Call your local BRP dealership | Model-Gray North America
715002798
Unavailable
16
Torx Truss M/S M8 X 40
205484056
Unavailable
17
Flat Washer 8 mm
234081410
Unavailable
18
Hex. Flange Elastic Nut M8
233281414
Unavailable
19
Hex. Flange Screw, M8 X 65
207686544
Unavailable
20
Retaining Hook
708301189
Unavailable
21
Socket Screw M6 X 35
205363586
Unavailable
22
Hex. Flange Nut M6
233061414
Unavailable
23
LH Tail Light Plate | Model-International
708301274
Unavailable
24
RH Tail Light Plate | Model-International
708301275
Unavailable
25
Socket Screw Button Head M6 X 10 | DS 650
250000436
Unavailable
26
Tail Light Ass'y | Includes 32 to 33
710001645
Unavailable
28
Red Reflector
705011221
Unavailable
29
LH Reflector Support
708301538
Unavailable
29
RH Reflector Support
708301539
Unavailable
30
Hex. Flange Elastic Nut M5
233251414
Unavailable
31
License Light
710002055
Unavailable
32
Red Reflector
705011221
Unavailable
33
Black, Front Panel Short
708302081
Unavailable
34
Torx Truss Screw M8 X 50
250000761
Unavailable
35
Stainless Steel Flat Washer
234082670
Unavailable
36
Hex. Flange Elastic Nut M8
233281414
Unavailable
37
Locking Handle Weld
708300939
Unavailable
38
Hair pin
41029
Unavailable
39
Bed Heat Shield On Top
708301336
Unavailable
40
Bed Heat Shield On Side
708301337
Unavailable
41
Side Heat Shield
708301338
Unavailable
42
Middle Deck
708300959
Unavailable
43
Lower Tailgate
708300964
Unavailable
44
BRP Logo 68 mm
219902672
Unavailable
45
Hood Latch
5342952
Unavailable
46
Hex. Screw M4 X 25
207142544
Unavailable
47
Elastic Stop Nut M4
232541484
Unavailable
48
Washer
20037
Unavailable
49
Counter Roller
605449087
Unavailable
50
Rivet
293150212
Unavailable
51
Washer
517124300
Unavailable
52
Grommet
517303756
Unavailable
53
Linq Hole Filler
708301095
Unavailable
55
Retainer Cable
293750069
Unavailable
56
Register Plate Support
708300965
Unavailable
57
Limiter Rail
708301213
Unavailable
58
Stavex Rivet
293150144
Unavailable
59
Limiter Hook
708301261
Unavailable
60
Filler Plate
708301262
Unavailable
60
Middle Deck Ass'y | North America
715002810
Unavailable
61
Handle Plate
708301263
Unavailable
62
Pop Rivet 3/16”
293150108
Unavailable
63
Rear Light Harness
515177565
Unavailable
64
Trailer Harness
515177667
Unavailable
65
Support Plate
705204877
Unavailable
