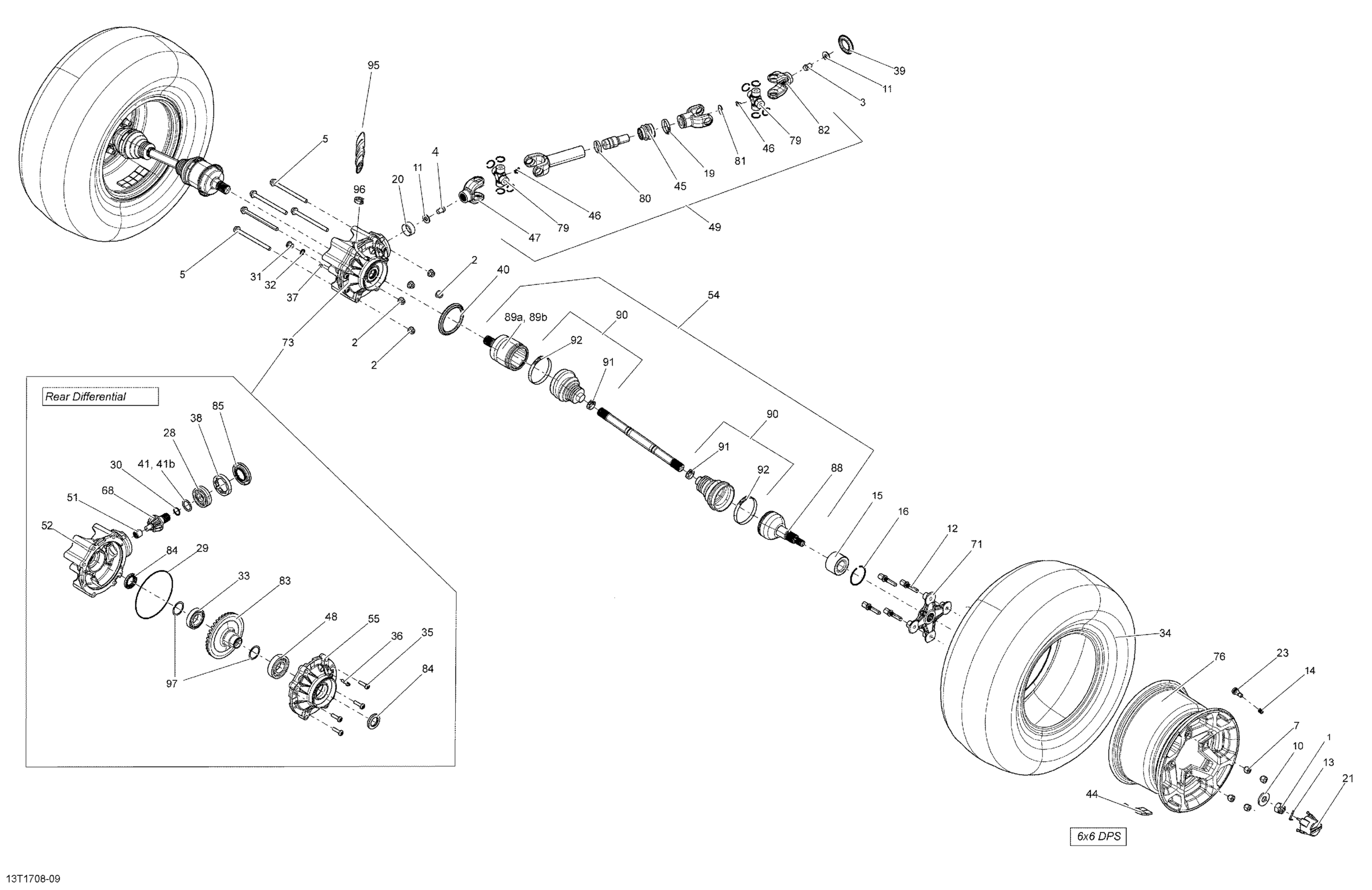

Can-Am Outlander 6X6 - 1000 EFI, 2017 08- Drive System, Rear Diagram

#

Description
Price

1

Hex. Flange Castellated Nut M18

232291413

Unavailable

2

Hex. Flange Elastic Nut M10

233201436

Unavailable

3

Hex Flange Screw M12 X 16

250001039

Unavailable

4

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

5

Hex. Flange Screw M10 X 135

250001041

Unavailable

7

Black, Wheel Nut M10 X 1.25

250100184

Unavailable

7

Chrome Wheel Nut M10 X 1.25 | XT

250100185

Unavailable

10

Conical Spring Washer M18

250200171

Unavailable

11

Flat Washer M12

250200102

Unavailable

12

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

Unavailable

13

Cotter Pin

250400036

Unavailable

14

Valve Cap

293000110

Unavailable

15

Ball Bearing

293350150

Unavailable

16

Circlip

293370019

Unavailable

19

Oetiker Gear Clamp 44.0MM | 4X4

293650138

Unavailable

20

Wear Ring | 4X4

705400036

Unavailable

21

Wheel Cap

705400928

Unavailable

23

Rim Valve With Cap

705400193

Unavailable

28

Ball Bearing | 4X4

705500260

Unavailable

29

Seal | 4X4

705500265

Unavailable

30

O-Ring | 4X4

705500267

Unavailable

31

Fill Level Plug | 4X4

705500504

Unavailable

32

Copper Washer | 4X4

705500506

Unavailable

33

Ball Bearing

705502737

Unavailable

34

Tire | STD

705501767

Unavailable

34

Tire | XT, C/U, INT

705501769

Unavailable

35

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

36

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

37

Fill Level Plug | 4X4

705500504

Unavailable

38

Nut | 4X4

705401603

Unavailable

39

Protector

705501123

Unavailable

40

Wear Ring

705501124

Unavailable

41

Pinion Gear Shim

705501162

Unavailable

41b

Pinion Gear Shim 1.67 mm

705502061

Unavailable

44

1/2 Oz Weight

219704465

Unavailable

45

Rubber Boot

715900118

Unavailable

46

Grease Fitting

715900184

Unavailable

47

Fixe Yoke

715900296

Unavailable

48

Ball Bearing

705502738

Unavailable

49

Shaft Ass'y Kit | Includes 54 to 54h

703500987

Unavailable

51

Needle Bearing

705501408

Unavailable

52

Rear Differential Housing RH

705501919

Unavailable

54

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

Unavailable

54

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

Unavailable

55

Rear Differential Housing LH

705501973

Unavailable

68

PINION 10 TOOTH - Call your local BRP dealership

705501571

Unavailable

71

Wheel Hub Ass'y

705501716

Unavailable

73

Rear Drive Unit Ass'y

705501916

Unavailable

76

Silver Rear Rim | STD

705501460

Unavailable

76

Black, Rear Rim | XT CAMO

705501493

Unavailable

76

Black, Rim | XT

705501856

Unavailable

79

Universal Joint

715900270

Unavailable

80

Oetiker Gear Clamp 36.1MM

509000045

Unavailable

81

COVER - Call your local BRP dealership

715900187

Unavailable

82

Joint

715900272

Unavailable

83

Gear, 36 Tooth

705501397

Unavailable

84

Oil Seal

705501996

Unavailable

85

Oil Seal | 4X4

705401481

Unavailable

88

CV Joint

705501776

Unavailable

89a

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

89b

Circlip

705501781

Unavailable

90

Boot Kit

705501864

Unavailable

91

Oetiker Clamp, 27.3 mm

715900242

Unavailable

92

Oetiker Clamp, 82.1 mm

715900241

Unavailable

95

Rubber Bellow | 4X4

705400552

Unavailable

96

Oetiker Clamp

293650042

Unavailable

97

Differential Shim 0.02 mm

705502060

Unavailable
