07- Front Suspension

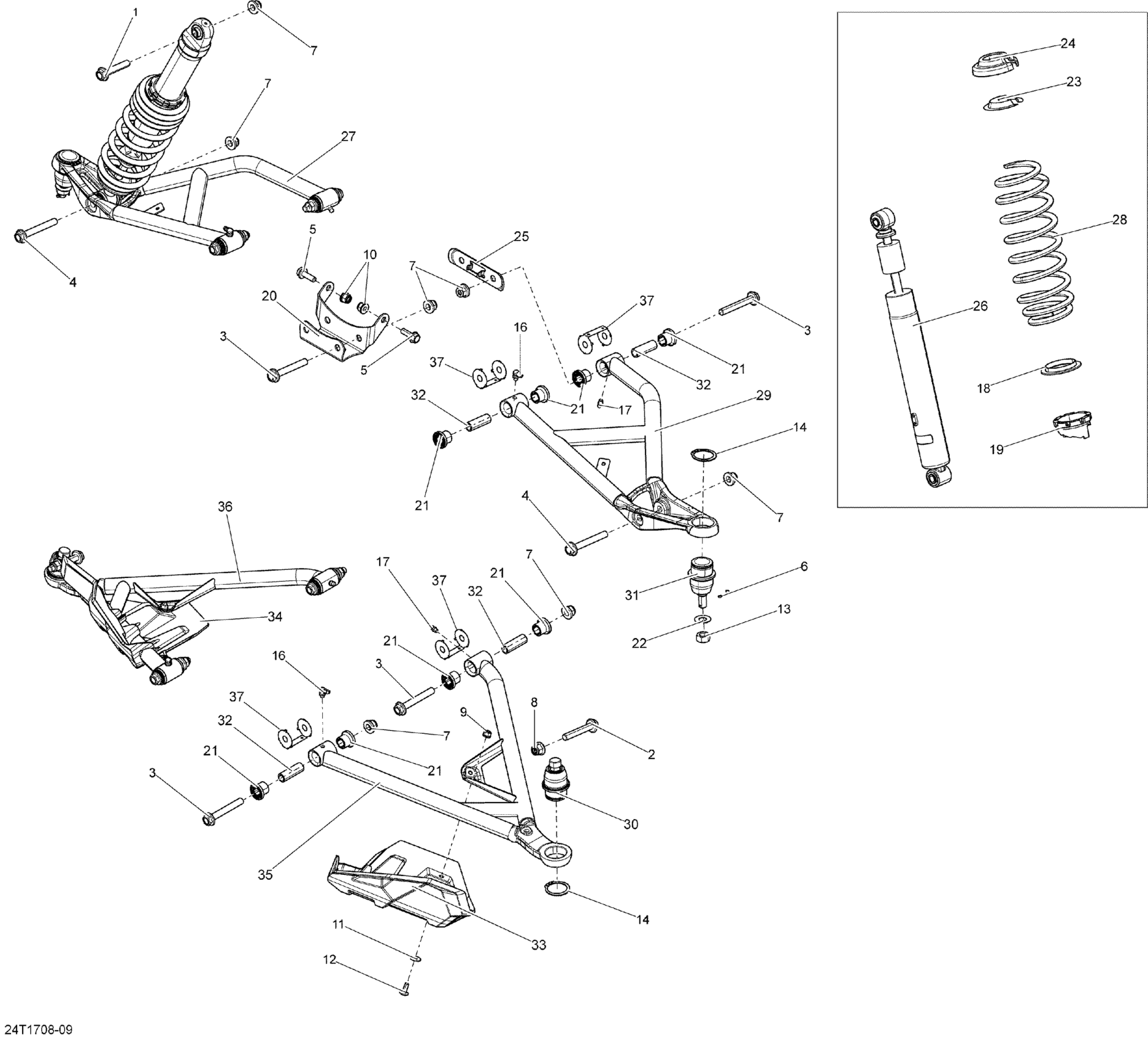

Can-Am Outlander 6X6 - 1000 EFI, 2017 07- Front Suspension Diagram
#
1
Hex. Flange Screw M10 X 55
207605546
Unavailable
2
Hex. Flange Screw M10 X 60
207606044
Unavailable
3
Hex. Flange Screw M10 X 70
207607046
Unavailable
4
Hex. Flange Screw M10 X 75
250001038
Unavailable
5
Hex. Flange Screw M8 X 25
207682534
Unavailable
6
Cotter Pin
211400017
Unavailable
7
Hex. Flange Elastic Nut M10
233201436
Unavailable
8
Hex. Flange Elastic Nut M10
233201434
Unavailable
9
Hex. Flange Elastic Nut M6
233261494
Unavailable
10
Hex. Flange Elastic Nut M8
233281414
Unavailable
11
Stainless Steel Flat Washer
234062670
Unavailable
12
Torx Screw M6 X 16
250000755
Unavailable
13
Nut M12
250100099
Unavailable
14
Circlip
293370035
Unavailable
16
Grease Fitting 90°
293550056
Unavailable
17
Grease Fitting
408200700
Unavailable
18
Spring Guide
503187500
Unavailable
19
Adjustment Cam
505073625
Unavailable
20
Upper Front Holder
705203247
Unavailable
21
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
22
Hardened Washer
706200281
Unavailable
23
Cap
706200785
Unavailable
24
Spring Stopper
706200881
Unavailable
25
Front Suspension Cross Plate
706200998
Unavailable
26
Front Shock
706201170
Unavailable
27
Black RH Upper Arm
706201797
Unavailable
28
Black Spring | XT
706202553
Unavailable
29
Black LH Upper Arm
706201796
Unavailable
30
Ball Joint
706202045
Unavailable
31
Ball Joint
706202044
Unavailable
32
Spacer
706204623
Unavailable
33
LH Joint Protector
706202808
Unavailable
34
RH Joint Protector
706202809
Unavailable
35
LH Lower Suspension Arm
706204639
Unavailable
36
Black, RH Lower Arm
706202870
Unavailable
37
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
