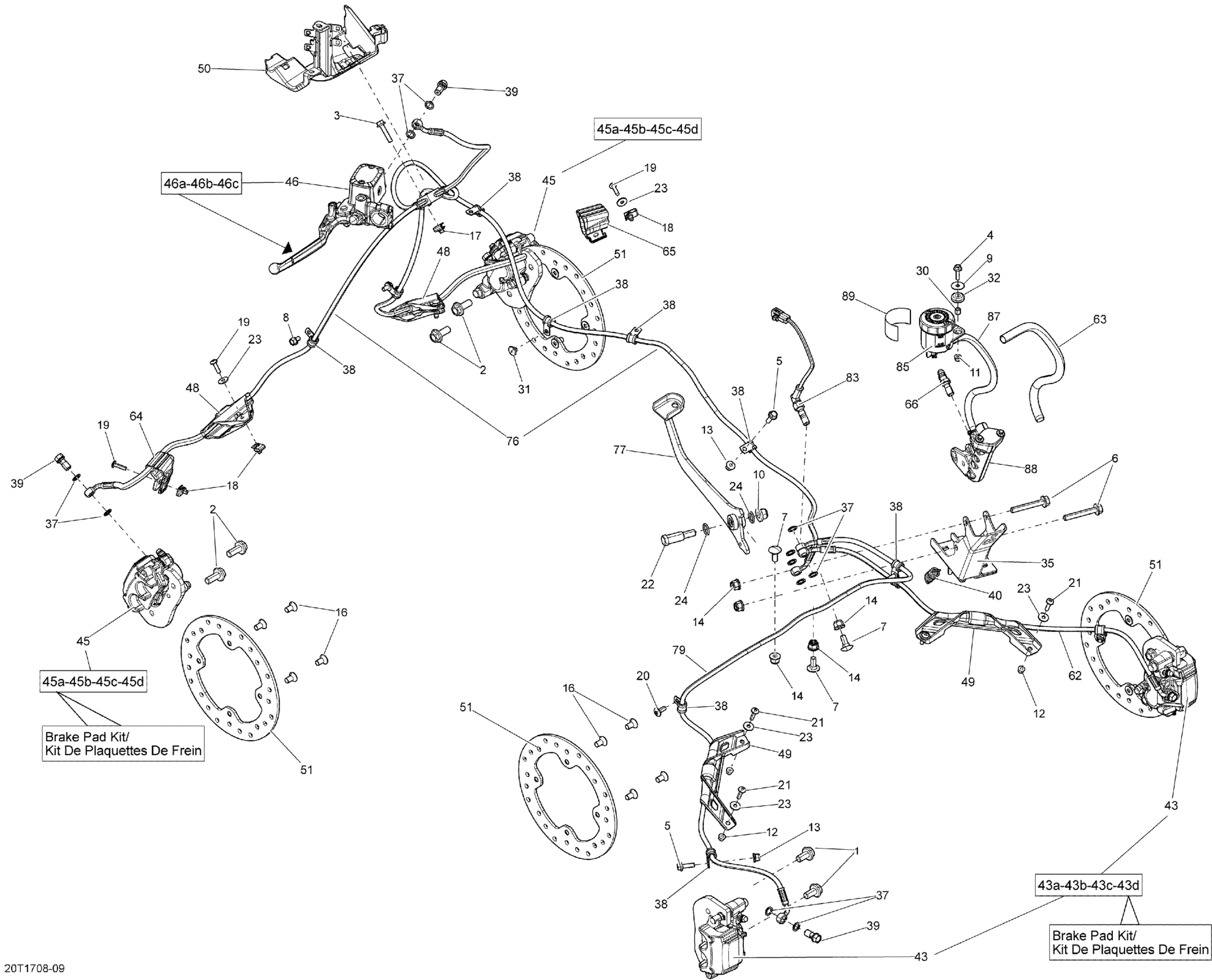

Can-Am Outlander 6X6 - 1000 EFI, 2017 06- Hydraulic Brakes Diagram
#
1
Hex. Flange Screw M10 X 20
207502046
Unavailable
2
Hex. Flange Screw M10 X 25
207502546
Unavailable
3
Hex. Flange Screw M6 X 30, Scotch Grip
207563044
Unavailable
4
Hex.Flange Screw M5 X 20
207652044
Unavailable
5
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
6
Hex. Flange Screw M8 X 55
207685544
Unavailable
7
Carriage Bolt, M8 X 20
207782044
Unavailable
8
Hex. Flange Screw M6 X 10
210261040
Unavailable
9
Flat Washer
224060201
Unavailable
10
Hex. Flange Elastic Nut M10
233201436
Unavailable
11
Flange Elastic Nut M5
233251434
Unavailable
12
Elastic Flange Nut M5
233251494
Unavailable
13
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
14
Hex. Flange Elastic Nut M8
233281414
Unavailable
16
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
17
Panel Nut M6 X 1.0
250100198
Unavailable
18
Panel Nut M5 X 0.8
250000958
Unavailable
19
Torx Screw M5 X 20
250000724
Unavailable
20
Torx Screw M6 X 16
250000755
Unavailable
21
Torx Screw M5 X 20
250000792
Unavailable
22
Shoulder Screw M10
250000513
Unavailable
23
Washer M5
250200025
Unavailable
24
O-Ring
293300144
Unavailable
30
Bushing
293900112
Unavailable
31
Pop Rivet 3/16"
390406500
Unavailable
32
Grommet
414036300
Unavailable
35
Brake Pedal Bracket
705202000
Unavailable
37
Copper Washer
705601628
Unavailable
38
Clamp
293650256
Unavailable
39
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
40
Brake Pedal Spring
705600792
Unavailable
43
RH Rear Brake Caliper | Includes 41 to 45
705602190
Unavailable
43
LH Rear Caliper Ass'y | Includes 47 to 51
705600860
Unavailable
43a
Pin Set
705601016
Unavailable
43b
Bleeding Screw
705601017
Unavailable
43c
Retaining Spring
705601018
Unavailable
43d
RH Organic Brake Pad Kit
705601014
Unavailable
43d
LH Organic Brake Pad Kit
705601015
Unavailable
45
RH Front Caliper Ass'y | Includes 1 to 5
705600861
Unavailable
45
LH Front Caliper Ass'y | Includes 6 to 10
705600862
Unavailable
45a
RH Organic Brake Pad Kit
705601014
Unavailable
45a
LH Organic Brake Pad Kit
705601015
Unavailable
45b
Pin Set
705601016
Unavailable
45c
Bleeding Screw
705601017
Unavailable
45d
Retaining Spring
705601018
Unavailable
46
LH Front Master Cylinder | Includes 11 to 14
705601430
Unavailable
46a
Lever Set
705601013
Unavailable
46b
Clamp And Screw Kit
507032477
Unavailable
46c
Cap Set
219800096
Unavailable
48
Hose Guard
705601893
Unavailable
49
REAR HOSE PROTECTOR - Call your local BRP dealership
705600963
Unavailable
50
Front Hose Bracket
705600983
Unavailable
51
Disc Brake
705600999
Unavailable
62
RH Brake Line | Includes 24 to 25
705601005
Unavailable
63
Tubing 10 MM 1000MM Long
219704407
Unavailable
64
LH Hose Bracket
705601048
Unavailable
65
RH Hose Bracket
705601049
Unavailable
66
Bleeding Screw
705601051
Unavailable
76
LH RH Front Hose
705601519
Unavailable
77
Deep Black, Brake Pedal
705602163
Unavailable
79
BRAKE LINE REAR LH - Call your local BRP dealership
705601221
Unavailable
83
Brake Switch
705601251
Unavailable
85
Oil Tank
705601020
Unavailable
87
Oil Housing Hose
705601019
Unavailable
88
Rear Master Cylinder Ass'y | Includes 28 to 30
705601776
Unavailable
89
Heat Shield
705601311
Unavailable
