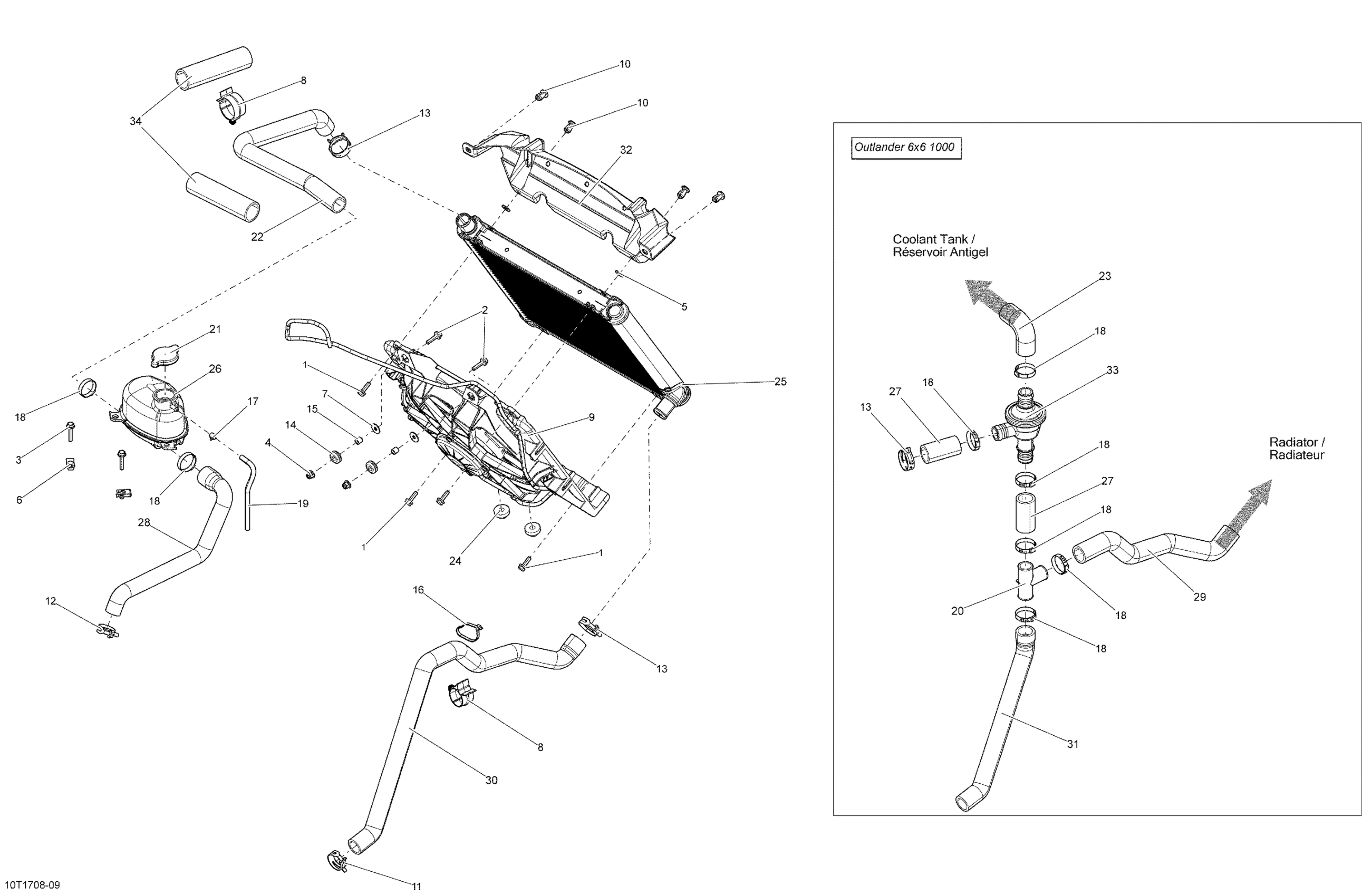

Can-Am Outlander 6X6 - 1000 EFI, 2017 Cooling System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662034

$2.11

2

Hex. Flange Screw M6 X 25

207662534

$2.11

3

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

4

Flange Elastic Nut M6

233261434

$4.44

5

Flat Washer 8 mm

234081410

$0.83

6

Panel Nut M6 X 1.0

250100198

$2.11

7

Flat Washer

250200082

$0.42

8

Retainer

275500590

$9.69

9

Fan Ass'y

709200564

$244.99

10

Tuflok Plastic Rivet

293150230

$1.47

11

Norma Spring Clamp

293650108

$4.12

12

Norma Spring Clamp

293650109

$4.12

13

Norma Spring Clamp

293650166

$4.44

14

Grommet

709000582

$4.69

15

Bushing

293900105

$7.65

16

Tie-Rap 180 mm

414115200

$0.11

17

Spring Clamp

414554800

$0.88

18

Gear Clamp

509000162

$7.29

19

Polyurethane Hose 10000Mm Long

219704410

$56.99

20

T-Fitting

509000219

$15.89

21

Radiator Pressure Cap

709200207

$25.49

22

Radiator Inlet Hose

709200278

$34.99

23

THERMOSTAT INLET HOSE - Call your local BRP dealership

709200280

Unavailable

24

Grommet

709200285

$9.69

25

Radiator

709200286

$476.99

26

Coolant Tank

709200297

$55.99

27

Hose

709200299

$8.60

28

THERMOSTAT INLET HOSE - Call your local BRP dealership

709200280

Unavailable

29

Radiator Outlet Hose

709200390

$15.36

30

Hose

709200392

$17.57

31

Hose

709200392

$17.57

32

Air Deflector | Outlander

709200393

$15.87

33

Thermostat

709200406

$98.99

34

Tubing 35 MM 1000MM Long

219704428

$10.99
