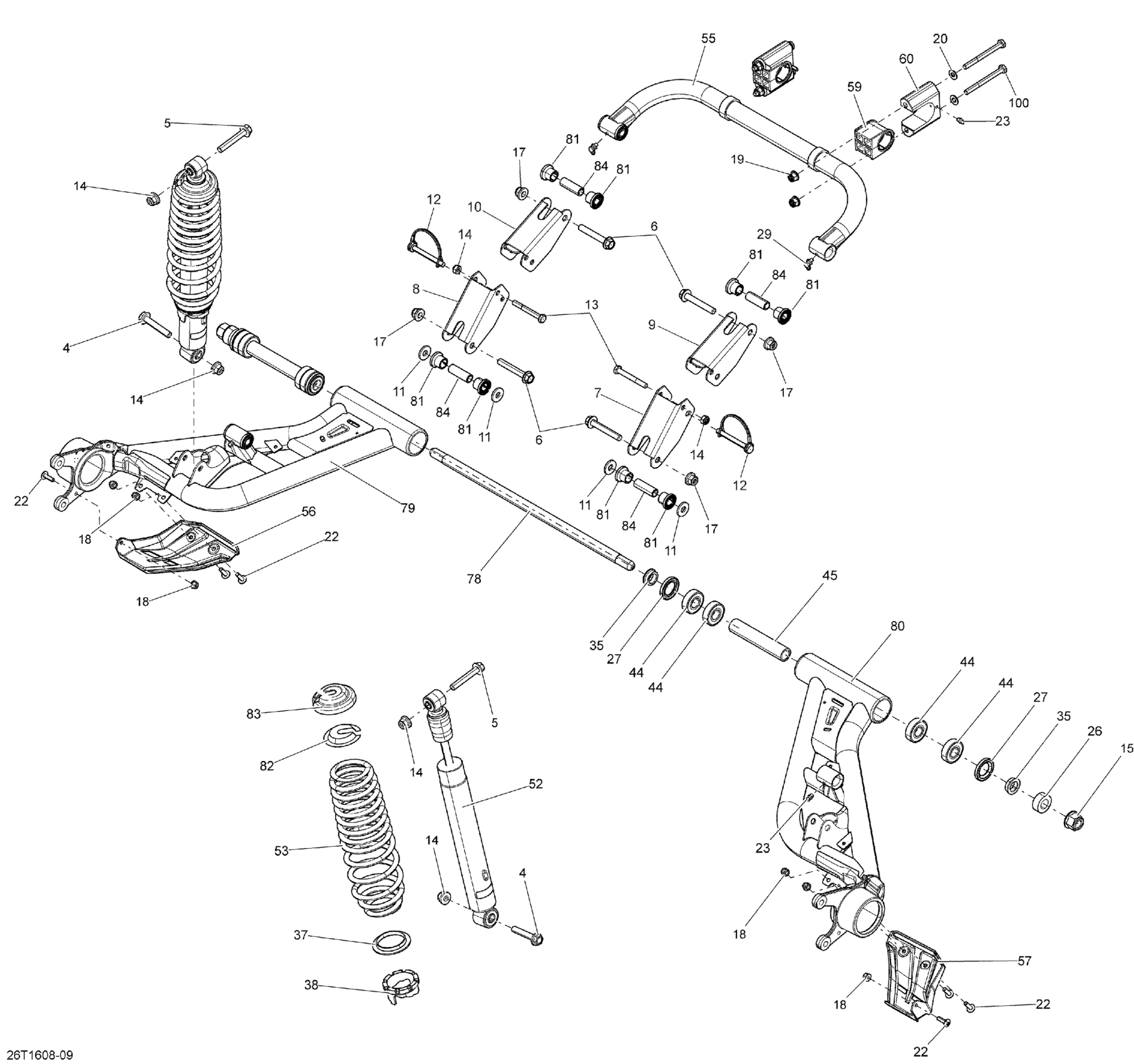

Can-Am Outlander 6X6 - 1000 EFI, 2016 Rear Suspension Diagram

#

Description
Price

4

Hex. Flange Screw M10 X 55

207605546

$2.11

5

Hex. Flange Screw M10 X 6

207606046

$4.12

6

Hex. Flange Screw M10 X 65

207606536

$4.44

6

Hex. Screw M10 X 70

250000520

$7.51

7

RH Linkage Outer Part

706001765

$28.99

8

LH Linkage Outer Part

706001600

$28.99

9

RH Linkage Inner Part

706001766

$15.49

10

Linkage Inner Part

706001601

$15.49

11

Washer

505073634

$2.42

12

Pin Onto The Shaft

706001602

$15.80

13

Hex. Screw M8 x 65

207086544

$1.47

14

Hex. Elastic Stop Nut M8

232581414

$0.56

14

Hex. Flange Elastic Nut M10

233201436

$2.11

15

Hex. Flange Elastic Nut M16

233211466

$1.99

17

Hex. Flange Elastic Nut M10

233201414

$1.58

18

Hex. Flange Elastic Nut M6

233261494

$1.58

19

Hex. Flange Elastic Nut M8

233281434

$2.11

20

Flat Washer M8

234081430

$2.11

22

Torx Screw M6 X 20

250000712

$2.11

23

Grease Fitting

250000315

$5.82

26

Flat Washer M17

250200112

$7.99

27

Seal

293200144

$5.09

29

Grease Fitting 90°

293550056

$1.15

35

Spacer

706001282

$12.99

37

Spring Guide

503187500

$10.49

38

Adjustment Cam

505073625

$12.99

44

Ball Bearing

293350145

$13.75

45

Spacer

706002259

$28.99

52

Rear Shock

706000958

$185.49

53

Black Spring

706000963

$103.99

55

Swaybar

706000988

$126.99

56

LH PROTECTOR - Call your local BRP dealership

706001009

Unavailable

57

RH PROTECTOR - Call your local BRP dealership

706001010

Unavailable

59

Stabilizer Bar Bushing

706004640

$8.89

60

Bushing Holder

706001099

$33.99

78

Axial Pivot M16

706001664

$72.99

79

Black LH Swing Arm

706001860

$296.99

80

Black RH Swing Arm

706001861

$296.99

81

Bushing

706200181

$3.14

82

Cap

706200785

$4.69

83

Spring Stopper

706200881

$12.99

84

Sleeve

706201587

$3.79

100

Hex. Screw M8 X 85

250001035

$1.89
