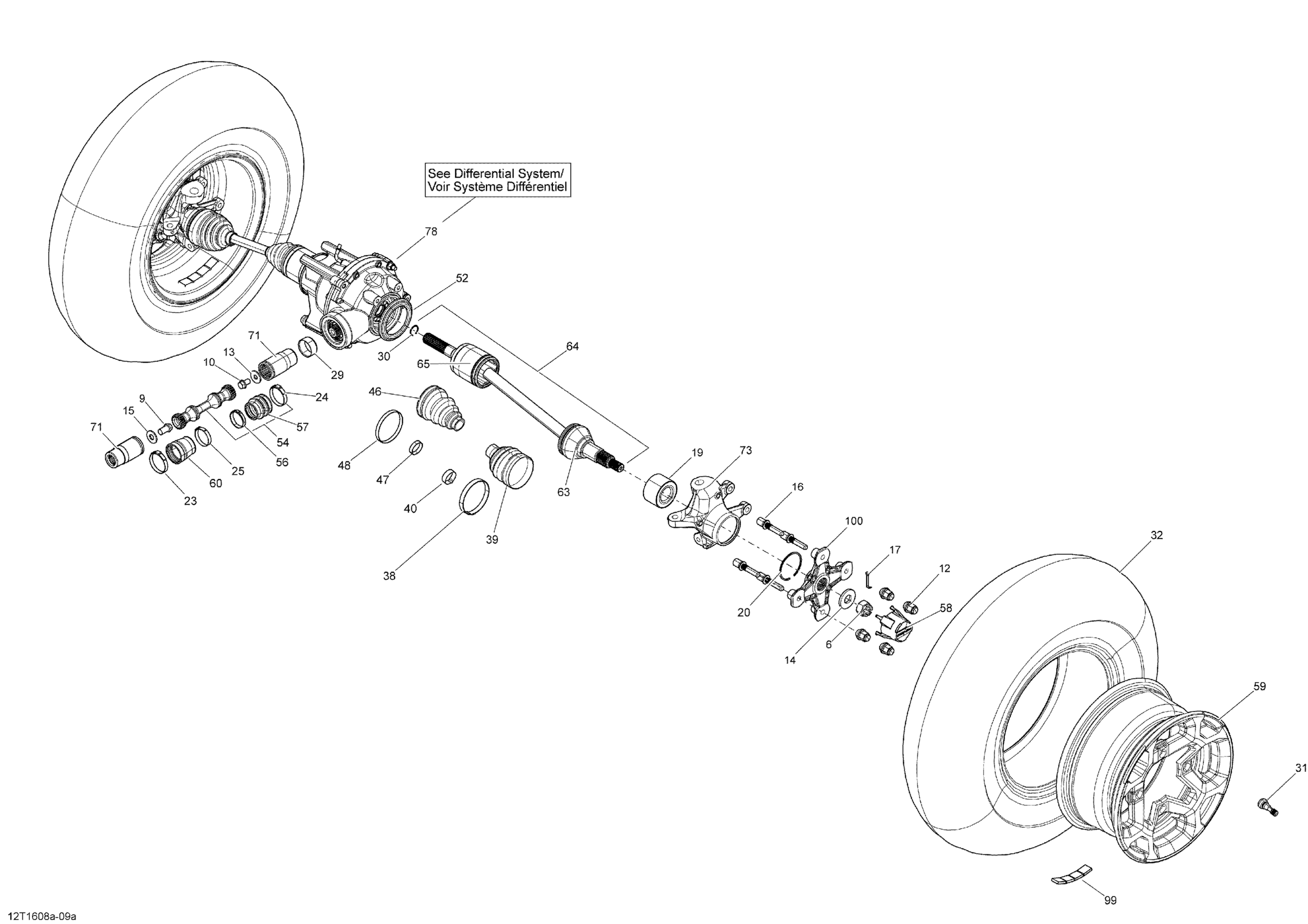

Can-Am Outlander 6X6 - 1000 EFI, 2016 07- Drive System, Front Diagram

#

Description
Price

6

Hex. Flange Castellated Nut M18

232291413

Unavailable

9

Hex Flange Screw M12 X 20

250001042

Unavailable

10

Hex. Flange Screw M10 X 16 S.GRIP

250001044

Unavailable

12

Chrome Wheel Nut M10 X 1.25 | XT

250100185

Unavailable

12

Black, Wheel Nut M10 X 1.25

250100184

Unavailable

13

Flat Washer M10 | 4X4

250200014

Unavailable

14

Conical Spring Washer M18

250200171

Unavailable

15

Flat Washer M12

250200102

Unavailable

16

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

Unavailable

17

Cotter Pin

250400036

Unavailable

19

Ball Bearing

293350150

Unavailable

20

Circlip

293370019

Unavailable

23

Oetiker Gear Clamp 44.0MM | 4X4

293650138

Unavailable

24

Oetiker Gear Clamp 44.0MM | 4X4

293650138

Unavailable

25

Oetiker Gear Clamp

293650199

Unavailable

29

Wear Ring | 4X4

705400036

Unavailable

30

Circlip Joint | Not shown

705401349

Unavailable

31

Rim Valve With Cap

705400193

Unavailable

32

Tire | STD

705401331

Unavailable

32

Tire | XT

705401333

Unavailable

38

Oetiker Clamp

715900282

Unavailable

39

Boot Kit, Wheel Side

705401345

Unavailable

40

Oetiker Clamp, Small

715900283

Unavailable

46

Boot Kit, Differential Side

705401346

Unavailable

47

Oetiker Clamp, Small

715900261

Unavailable

48

Oetiker Clamp, Large

715900284

Unavailable

52

Wear Sleeve

705400780

Unavailable

54

Propeller Shaft | Includes 1 to 2

705400913

Unavailable

56

Oetiker Gear Clamp 36.1MM

509000045

Unavailable

57

Rubber Boot

715900118

Unavailable

58

Wheel Cap

705400928

Unavailable

59

Silver Front Rim | STD

705401088

Unavailable

59

Deep Black, 12 Inch Rim X 6 | XT CAMO

705401127

Unavailable

59

Black, Rim | XT

705401420

Unavailable

60

Rubber Boot

705401093

Unavailable

63

CV Joint

705401344

Unavailable

64

RH Front - Premium CV Axle

705401116

Unavailable

64

LH Front - Premium CV Axle | Includes 43 to 51

705401115

Unavailable

65

RH Plunging Joint

705401348

Unavailable

65

LH Plunging Joint

705401350

Unavailable

71

Front Bushing Shaft Kit | 4X4

703500678

Unavailable

73

LH Knuckle

705403307

Unavailable

73

RH Knuckle

705403308

Unavailable

78

Front Differential | XT, XT-P, Includes 9 to 29

703500908

Unavailable

99

1/2 Oz Weight

219704465

Unavailable

100

Wheel Hub Ass'y

705501716

Unavailable
