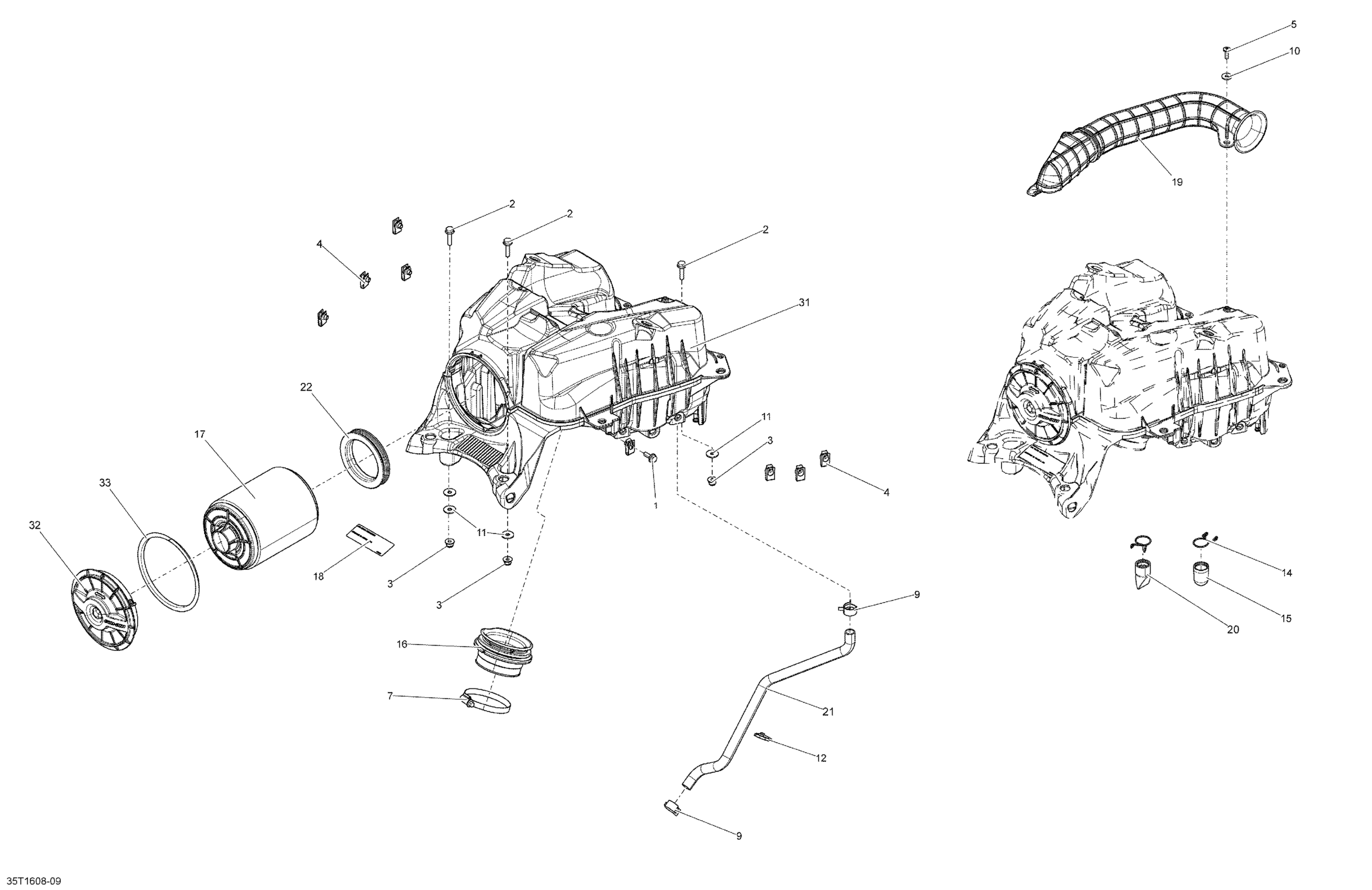

Can-Am Outlander 6X6 - 1000 EFI, 2016 Air Intake Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Flange Screw M6 X 25

207662534

$2.11

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4

Panel Nut M6 X 1.0

250100198

$2.11

5

Torx Screw K50 X 16

250000720

$1.69

7

Norma Clamp

293650091

$11.12

9

Norma Clamp

293650110

$4.54

10

Washer | DS 650 X

391301600

$0.48

11

Flat Washer

250200082

$0.42

12

Tie-Rap 180 mm

414115200

$0.11

14

Retainer Clip

707800278

$13.99

15

Drain Tube

707800080

$8.29

16

Intake Adaptor

707800333

$19.99

17

Air Filter

707800371

$40.99

18

Air Filter Maintenance Decal

707800373

Unavailable

19

Air Intake Hose

707800375

$55.99

20

Drain Tube

707800404

$2.89

21

Vent Hose

707800453

$25.99

22

Air Filter Adaptor

707800470

$19.99

31

Welded Air Box

707800599

Unavailable

32

Intake Silencer Cap Ass'y

715002174

$17.49

33

Gasket

293300175

$13.99
