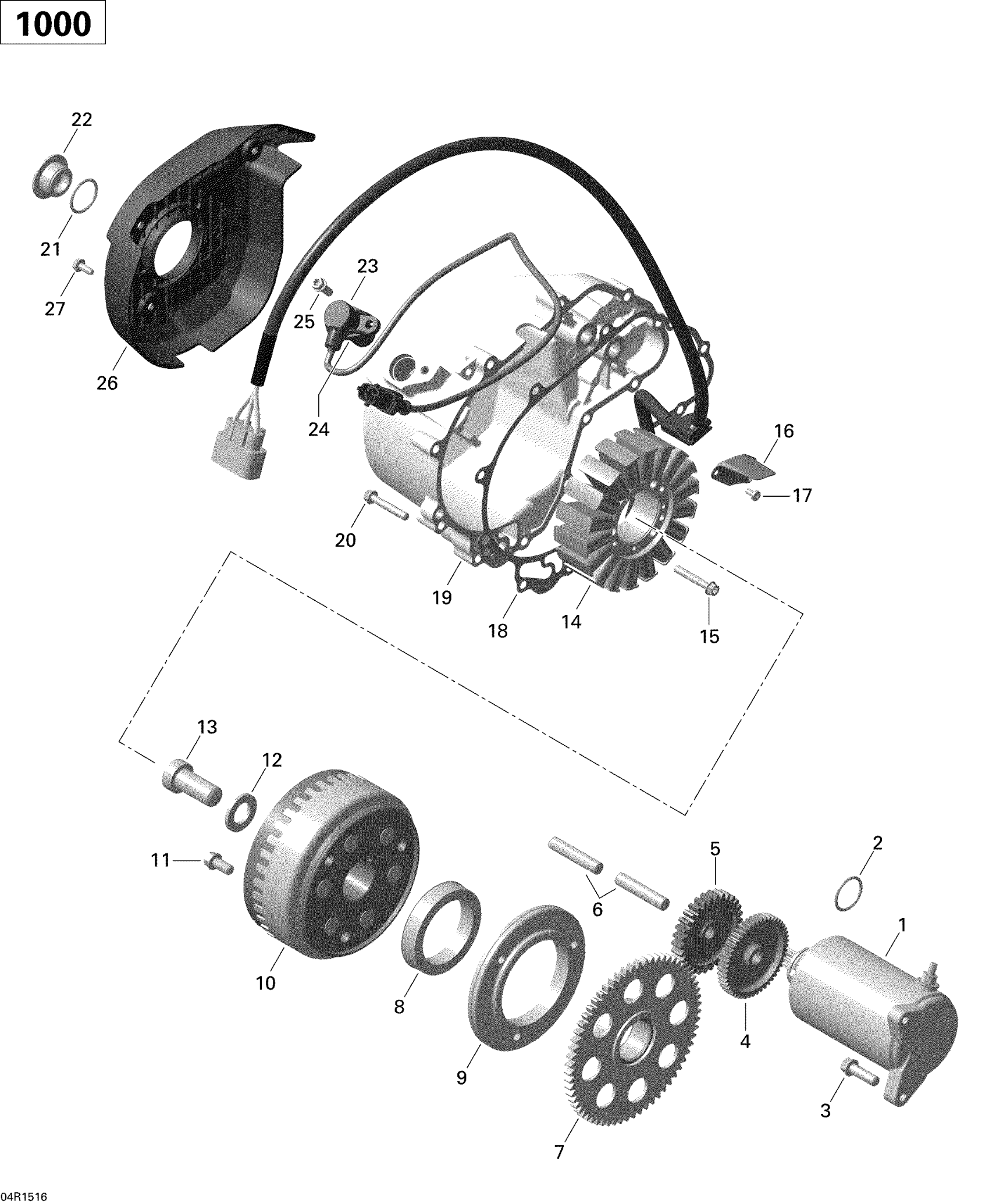

Can-Am Outlander 6X6 1000 EFI, 2015 Magneto And Electric Starter _04R1516 Diagram

#

Description
Price

1

Electric starter Ass'y

420684566

$265.99

2

O-Ring

420250140

$7.05

3

Torx Flange Screw M8 X 25

420440372

$4.00

4

Starter Double Gear 11/49 T

420634741

$155.97

5

Starter Intermediate Gear, 30 Teeth

420634605

$79.20

6

Location Pin 10 M6x50

420229302

$3.11

7

Free Wheel Gear, 64 Teeth | Includes 5a to 6

420434235

$179.20

8

Sprag Clutch

420659111

$204.72

9

Sparg Clutch Housing

420659263

$122.82

10

Flywheel, 650W | XT, XTP

420685647

Unavailable

11

Torx Flange Screw M8 X 16

420440852

$4.00

12

Shim

420627270

$3.38

13

Socket Head Screw M16 X 35

420241549

$7.05

14

Stator Plate, 650W | XT, XTP

420685632

$299.97

15

Torx Flange Screw M6 X 35

420440274

$0.83

16

Interior Cable Support Ass'y

420251889

$13.83

17

Phillips Screw M4 X 8

420240196

Unavailable

18

Gasket

420651203

$35.14

19

Ignition Cover

420212225

$183.82

20

Torx Flange Screw M6 X 35

420440274

$0.83

21

O-Ring

420430782

$4.41

22

Plug Screw M24X 1.5

420241633

$7.23

23

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

24

O-Ring

420431580

$12.29

25

Torx Flange Screw M6 X 16

420641048

$2.46

26

Cover

420201390

$36.89

27

Taptite Screw M5 x 12

420941935

$1.99
