09- Body And Accessories

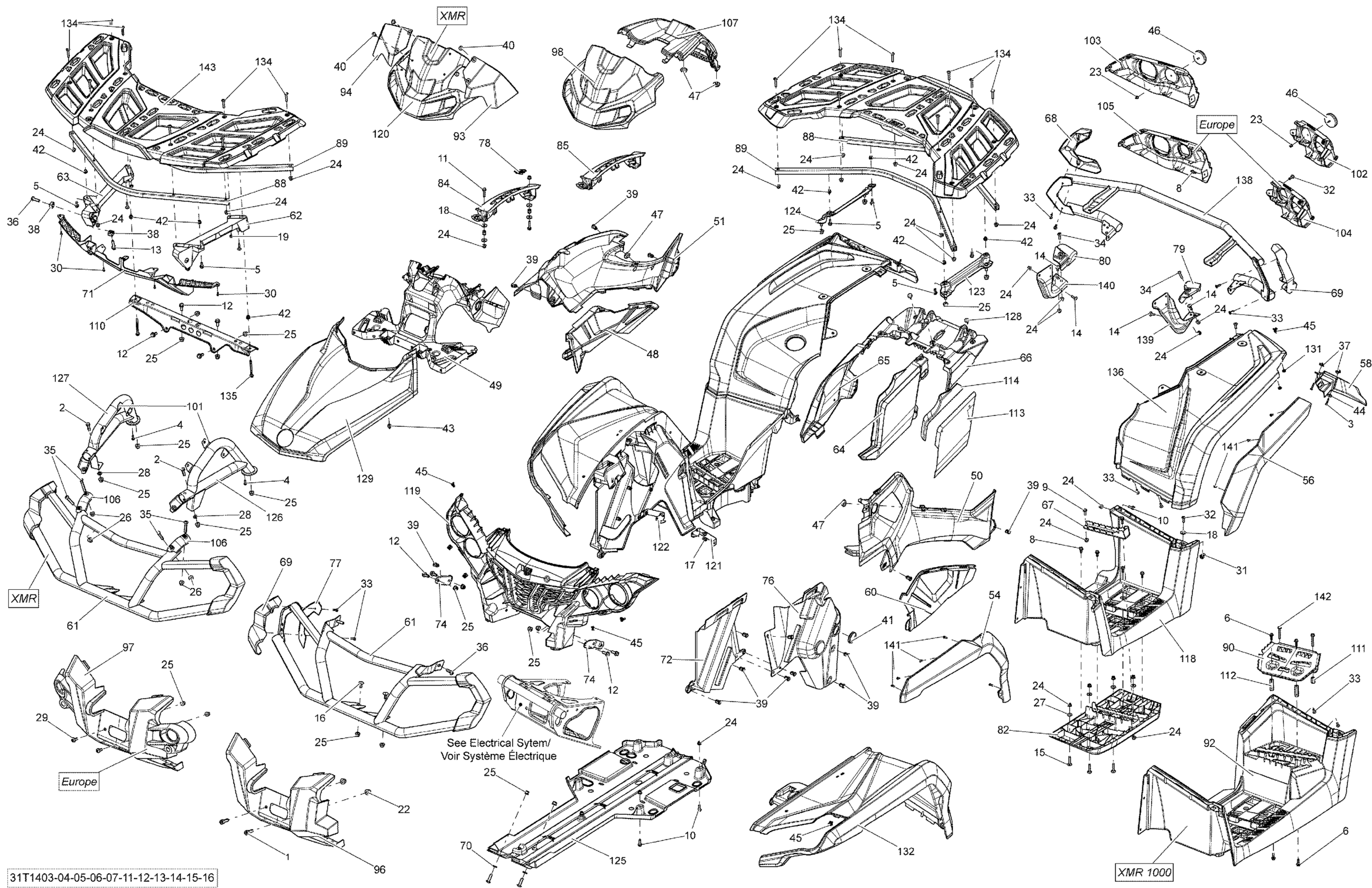

Can-Am Outlander 650EFI XMR, 2014 09- Body And Accessories Diagram
#
1
Socket Screw M10 x 30 | XT
205003044
Unavailable
2
Hex. Cap Screw M8 X 30
207183054
Unavailable
3
Not Available As Spare Parts
XXX
Unavailable
4
Hex. Flange Screw, Scotch Grip
207551634
Unavailable
5
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
6
Not Available As Spare Parts
XXX
Unavailable
8
Hex. Flange Screw M6 X 16
207661654
Unavailable
9
Hex. Flange Screw M6 X 20
207662034
Unavailable
10
Hex. Flange Screw M6 X 20
207662084
Unavailable
11
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
12
Hex. Flange Screw M8 X 20
207682044
Unavailable
13
Not Available As Spare Parts
XXX
Unavailable
14
Not Available As Spare Parts
XXX
Unavailable
15
Carriage Bolt M6 X 35
207763554
Unavailable
16
Carriage Bolt, M8 X 20
207782044
Unavailable
17
Hex. Flange Screw M6 X 10
210261040
Unavailable
18
Flat Washer
224061201
Unavailable
19
Not Available As Spare Parts
XXX
Unavailable
22
Hex. Flange Elastic Nut M10
233201434
Unavailable
23
Flange Elastic Nut M5
233251434
Unavailable
24
Flange Elastic Nut M6
233261434
Unavailable
25
Hex. Flange Elastic Nut M8
233281434
Unavailable
26
Elastic Flange Nut M8
233281464
Unavailable
27
Flat Washer 6 mm
234062410
Unavailable
28
Stainless Steel Flat Washer 8 mm
234081670
Unavailable
29
Hex. Screw M8 X 20
236282084
Unavailable
30
Not Available As Spare Parts
XXX
Unavailable
31
Panel Nut M6 X 1.0
250100198
Unavailable
32
Torx Screw M6 X 20
250000722
Unavailable
33
Torx Screw K50 X 16
250000720
Unavailable
34
Not Available As Spare Parts
XXX
Unavailable
35
Torx Screw M8 X 55
250000535
Unavailable
36
Torx Screw M8 X 30
250000886
Unavailable
37
Not Available As Spare Parts
XXX
Unavailable
38
Not Available As Spare Parts
XXX
Unavailable
39
Tuflok Plastic Rivet
293150230
Unavailable
40
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
41
Rubber Cover
293250242
Unavailable
42
Threaded Insert M6 X 1.0
250100242
Unavailable
43
Rubber Bumper
293830005
Unavailable
44
Washer
517124300
Unavailable
45
Edge Clip
517302785
Unavailable
46
Red Reflector
705011221
Unavailable
47
Grommet
705003264
Unavailable
48
Engine Cover
705003444
Unavailable
49
Dash Support Kit
715001552
Unavailable
50
Yellow, LH Lateral Panel | Yellow
705003446
Unavailable
51
Yellow, RH Lateral Panel | Yellow
705009019
Unavailable
54
Not Available As Spare Parts
XXX
Unavailable
56
Not Available As Spare Parts
XXX
Unavailable
58
Not Available As Spare Parts
XXX
Unavailable
60
Deflector_Body Panel Kit
715007008
Unavailable
61
Deep Black, Front Bumper
705014128
Unavailable
62
Not Available As Spare Parts
XXX
Unavailable
63
Not Available As Spare Parts
XXX
Unavailable
64
Not Available As Spare Parts
XXX
Unavailable
65
Not Available As Spare Parts
XXX
Unavailable
66
Not Available As Spare Parts
XXX
Unavailable
67
LH Footrest
705004352
Unavailable
67
RH Footrest
705005395
Unavailable
68
Cap (Front LH) (Rear RH) | XT
705004409
Unavailable
69
Cap (Front RH) (Rear LH) | XT
705004410
Unavailable
70
Ring
705004497
Unavailable
71
Not Available As Spare Parts
XXX
Unavailable
72
RH Front Inner Fender
705011463
Unavailable
72
LH Front Inner Fender
705011465
Unavailable
74
Lower Fender Support
705004565
Unavailable
76
RH Rear Inner Fender
705011462
Unavailable
76
LH Rear Inner Fender
705013111
Unavailable
77
Bracket Cover | XT
705004987
Unavailable
78
Not Available As Spare Parts
XXX
Unavailable
79
Not Available As Spare Parts
XXX
Unavailable
80
Not Available As Spare Parts
XXX
Unavailable
82
LH Structural Footboard
705011540
Unavailable
82
RH Structural Footboard
705011542
Unavailable
84
Shifter Gate | 800 North America, 800 International
705011546
Unavailable
85
Not Available As Spare Parts
XXX
Unavailable
88
Sectional Bent Tube
705016640
Unavailable
89
Bent Sectional Tube
705016092
Unavailable
90
Not Available As Spare Parts
XXX
Unavailable
92
Not Available As Spare Parts
XXX
Unavailable
93
LH Air Deflector
705006134
Unavailable
94
RH Air Deflector
705006135
Unavailable
96
Front Guard Plate | North America, International
705006299
Unavailable
97
Not Available As Spare Parts
XXX
Unavailable
98
Not Available As Spare Parts
XXX
Unavailable
101
Anchor Bracket
705006402
Unavailable
102
LH Rear Facia | North America, International
705006643
Unavailable
103
RH Rear Facia | North America, International
705006650
Unavailable
104
Not Available As Spare Parts
XXX
Unavailable
105
Not Available As Spare Parts
XXX
Unavailable
106
Black Upper Bracket
705006691
Unavailable
107
Dash Kit
715006098
Unavailable
110
Front Bumper Center Support
705006220
Unavailable
111
Not Available As Spare Parts
XXX
Unavailable
112
Not Available As Spare Parts
XXX
Unavailable
113
Not Available As Spare Parts
XXX
Unavailable
114
Not Available As Spare Parts
XXX
Unavailable
118
LH Step
705007040
Unavailable
118
RH Step
705007039
Unavailable
119
Fascia
705012822
Unavailable
120
Gauge Support
705007095
Unavailable
121
LH Inner Fender Bracket
705007140
Unavailable
122
RH Inner Fender Bracket
705007141
Unavailable
123
LH Support
705007277
Unavailable
124
RH Support
705007278
Unavailable
125
Protective Plate Kit
715002374
Unavailable
126
LH RADIATOR SUPPORT - Call your local BRP dealership
705007878
Unavailable
127
RH Radiator Support
705007879
Unavailable
128
Not Available As Spare Parts
XXX
Unavailable
129
Yellow Hood Kit
708301154
Unavailable
131
Push Nut
732610072
Unavailable
132
Black LH Front Fender Kit | Includes 2 to 2b, Black
715002301
Unavailable
132
Black LH Front Fender Kit | Model-International
715002303
Unavailable
132
Black RH Front Fender Kit | Includes 3 to 3a, Black
715001514
Unavailable
132
BLACK RH FRONT FENDER ASS'Y - Call your local BRP dealership | Model-International
715002311
Unavailable
134
Black, Torx Screw M6 X 35
250000646
Unavailable
135
Not Available As Spare Parts
XXX
Unavailable
136
Black LH Rear Fender Kit | Includes 6 to 6c, Black
715001798
Unavailable
136
Black LH Rear Fender Kit | Model-XMR Black International
715002312
Unavailable
136
Black RH Rear Fender Kit | Model-XMR Black International
715002315
Unavailable
138
Not Available As Spare Parts
XXX
Unavailable
139
LH Rear Bracket | XT
705008164
Unavailable
140
RH Rear Bracket | XT
705008165
Unavailable
141
Not Available As Spare Parts
XXX
Unavailable
142
Not Available As Spare Parts
XXX
Unavailable
143
Luggage Rack Kit
715001852
Unavailable
