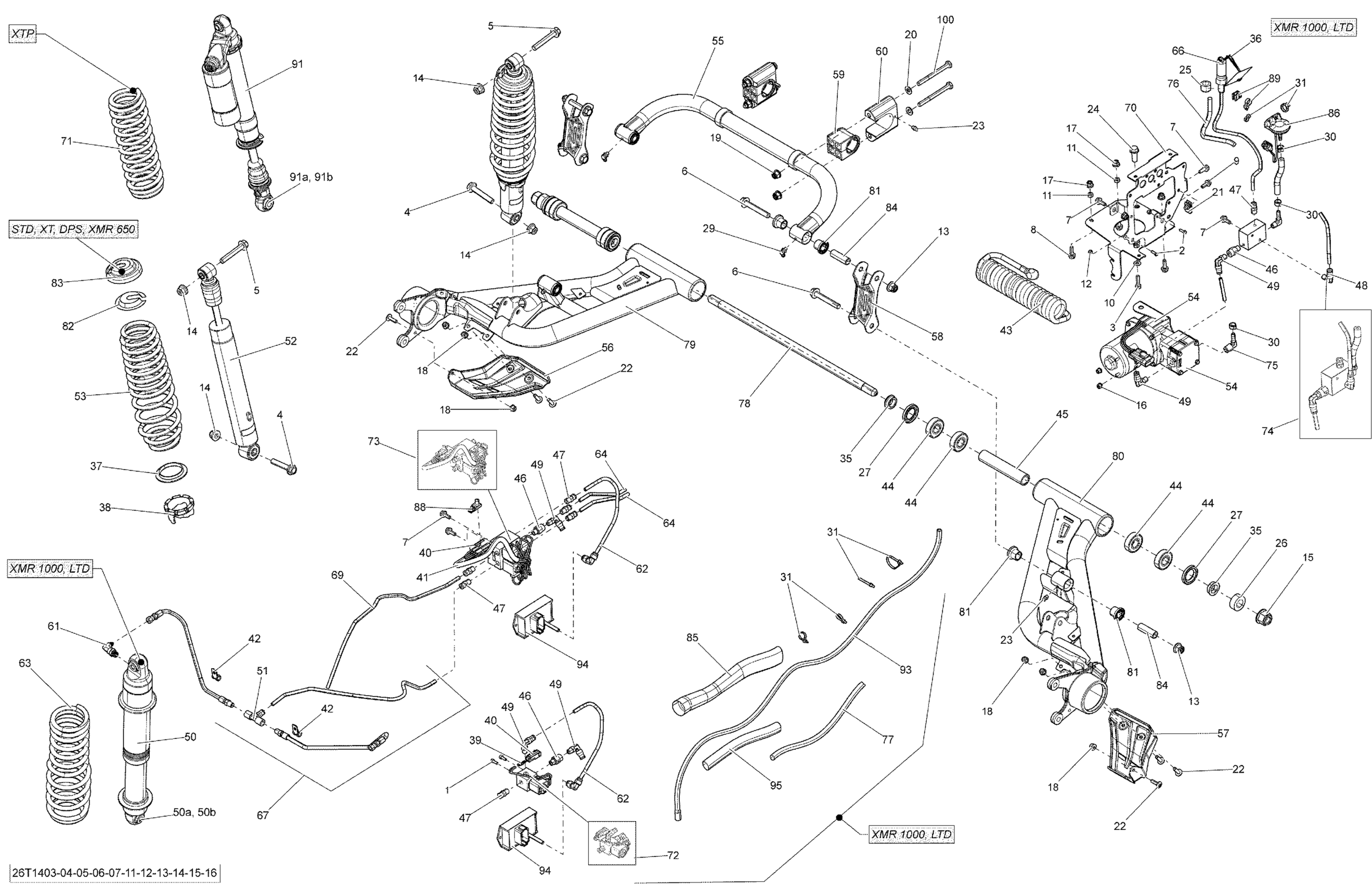

Can-Am Outlander 650EFI XMR, 2014 08- Rear Suspension Diagram
#
1
Not Available As Spare Parts
XXX
Unavailable
2
Not Available As Spare Parts
XXX
Unavailable
3
Not Available As Spare Parts
XXX
Unavailable
4
Hex. Flange Screw M10 X 55
207605546
Unavailable
5
Hex. Flange Screw M10 X 6
207606046
Unavailable
6
Hex. Flange Screw M10 X 65
207606536
Unavailable
7
Not Available As Spare Parts
XXX
Unavailable
8
Not Available As Spare Parts
XXX
Unavailable
9
Not Available As Spare Parts
XXX
Unavailable
10
Not Available As Spare Parts
XXX
Unavailable
11
Not Available As Spare Parts
XXX
Unavailable
12
Not Available As Spare Parts
XXX
Unavailable
13
Hex. Flange Elastic Nut M10
233201414
Unavailable
14
Hex. Flange Elastic Nut M10
233201436
Unavailable
15
Hex. Flange Elastic Nut M16
233211466
Unavailable
16
Not Available As Spare Parts
XXX
Unavailable
17
Not Available As Spare Parts
XXX
Unavailable
18
Hex. Flange Elastic Nut M6
233261494
Unavailable
19
Hex. Flange Elastic Nut M8
233281434
Unavailable
20
Flat Washer M8
234081430
Unavailable
21
Not Available As Spare Parts
XXX
Unavailable
22
Torx Screw M6 X 20
250000722
Unavailable
23
Grease Fitting
250000315
Unavailable
24
Not Available As Spare Parts
XXX
Unavailable
25
Not Available As Spare Parts
XXX
Unavailable
26
Flat Washer M17
250200112
Unavailable
27
Seal
293200144
Unavailable
29
Grease Fitting 90°
293550056
Unavailable
30
Not Available As Spare Parts
XXX
Unavailable
31
Not Available As Spare Parts
XXX
Unavailable
35
Spacer
706001282
Unavailable
36
Not Available As Spare Parts
XXX
Unavailable
37
Spring Guide
503187500
Unavailable
38
Adjustment Cam
505073625
Unavailable
39
Not Available As Spare Parts
XXX
Unavailable
40
Not Available As Spare Parts
XXX
Unavailable
41
Not Available As Spare Parts
XXX
Unavailable
42
Not Available As Spare Parts
XXX
Unavailable
43
Not Available As Spare Parts
XXX
Unavailable
44
Ball Bearing
293350145
Unavailable
45
Spacer
706002259
Unavailable
46
Not Available As Spare Parts
XXX
Unavailable
47
Not Available As Spare Parts
XXX
Unavailable
48
Not Available As Spare Parts
XXX
Unavailable
49
Not Available As Spare Parts
XXX
Unavailable
50
Not Available As Spare Parts
XXX
Unavailable
50a
Not Available As Spare Parts
XXX
Unavailable
50b
Not Available As Spare Parts
XXX
Unavailable
51
Not Available As Spare Parts
XXX
Unavailable
52
Rear Shock
706000958
Unavailable
53
SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership
706001518
Unavailable
54
Not Available As Spare Parts
XXX
Unavailable
55
Swaybar
706000988
Unavailable
56
LH PROTECTOR - Call your local BRP dealership
706001009
Unavailable
57
RH PROTECTOR - Call your local BRP dealership
706001010
Unavailable
58
Sway Bar Linkage
706001020
Unavailable
59
Stabilizer Bar Bushing
706004640
Unavailable
60
Bushing Holder
706001099
Unavailable
61
Not Available As Spare Parts
XXX
Unavailable
62
Not Available As Spare Parts
XXX
Unavailable
63
Not Available As Spare Parts
XXX
Unavailable
64
Not Available As Spare Parts
XXX
Unavailable
66
Not Available As Spare Parts
XXX
Unavailable
67
Not Available As Spare Parts
XXX
Unavailable
69
Not Available As Spare Parts
XXX
Unavailable
70
Not Available As Spare Parts
XXX
Unavailable
71
Not Available As Spare Parts
XXX
Unavailable
72
Not Available As Spare Parts
XXX
Unavailable
73
Not Available As Spare Parts
XXX
Unavailable
74
Not Available As Spare Parts
XXX
Unavailable
75
Not Available As Spare Parts
XXX
Unavailable
76
Not Available As Spare Parts
XXX
Unavailable
77
Not Available As Spare Parts
XXX
Unavailable
78
Axial Pivot M16
706001664
Unavailable
79
Black LH Swing Arm
706001860
Unavailable
80
Black RH Swing Arm
706001861
Unavailable
81
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
82
Cap
706200785
Unavailable
83
Spring Stopper
706200881
Unavailable
84
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
85
Not Available As Spare Parts
XXX
Unavailable
86
Not Available As Spare Parts
XXX
Unavailable
88
Not Available As Spare Parts
XXX
Unavailable
89
Not Available As Spare Parts
XXX
Unavailable
91
Not Available As Spare Parts
XXX
Unavailable
91a
Not Available As Spare Parts
XXX
Unavailable
91b
Not Available As Spare Parts
XXX
Unavailable
93
Not Available As Spare Parts
XXX
Unavailable
94
Not Available As Spare Parts
XXX
Unavailable
95
Not Available As Spare Parts
XXX
Unavailable
100
Hex. Screw M8 X 85
250001035
Unavailable
