- Outlander 650EFI XMR, 2014
07- Steering

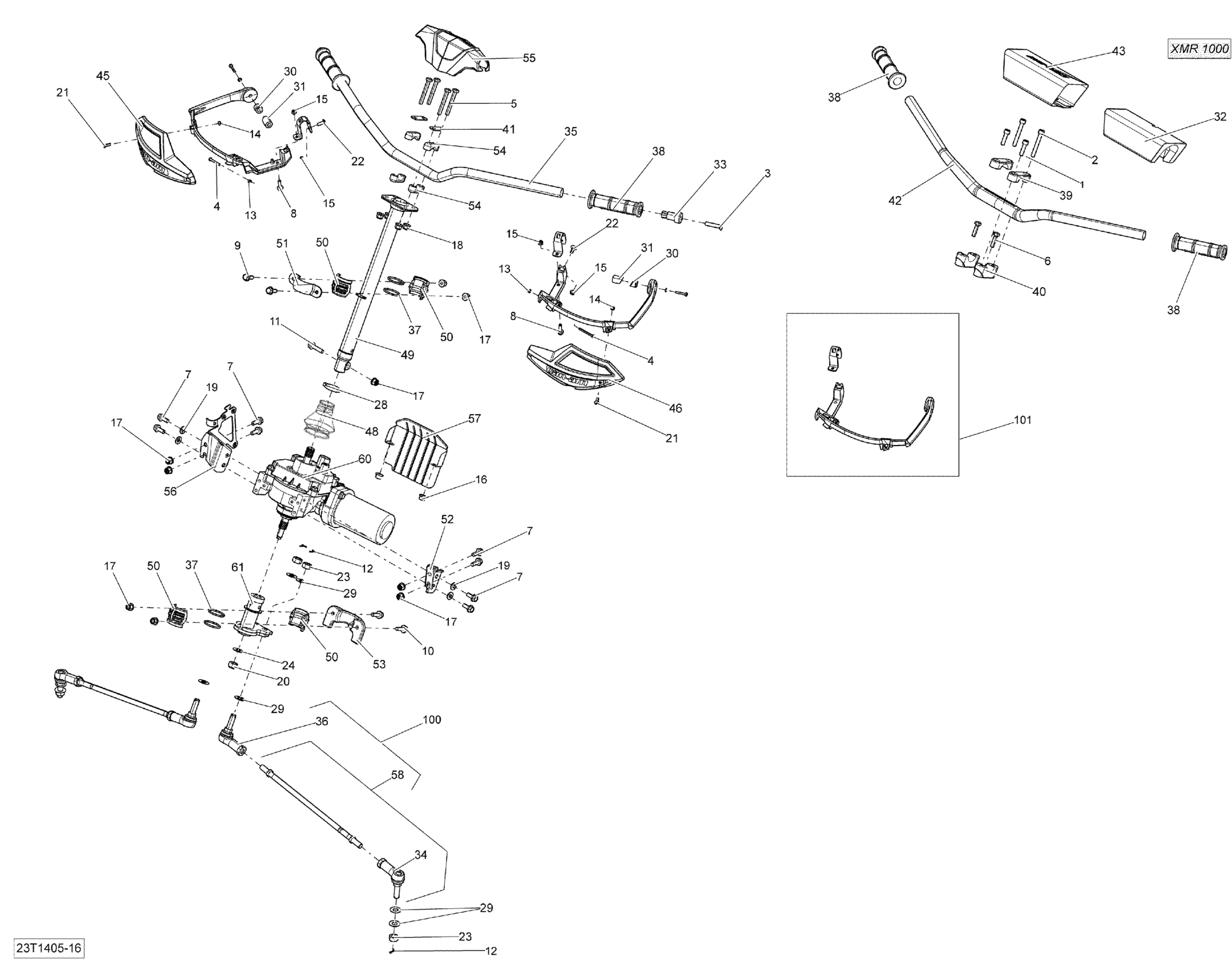

Can-Am Outlander 650EFI XMR, 2014 07- Steering Diagram
#
1
Not Available As Spare Parts
XXX
Unavailable
2
Not Available As Spare Parts
XXX
Unavailable
3
Socket Head Screw | X
205384034
Unavailable
4
Socket Head Screw M4 X 40 | X
205444086
Unavailable
5
Hex. Screw M8 X 60
207086046
Unavailable
6
Not Available As Spare Parts
XXX
Unavailable
7
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
8
Hex. Flange Screw M6 X 20
207662044
Unavailable
9
Hex. Flange Screw M8 X 20
207682044
Unavailable
10
Hex. Flange Screw M8 X 25
207682544
Unavailable
11
Hex. Flange Screw M8 X 35
207683544
Unavailable
12
Cotter Pin
211400013
Unavailable
13
Elastic Stop Nut M4
232541414
Unavailable
14
Hex. Elastic Nut M5 | X
232551600
Unavailable
15
Hex. Elastic Stop Nut M6
232561600
Unavailable
16
Hex. Flange Nut M8
233081416
Unavailable
17
Hex. Flange Elastic Nut M8
233281414
Unavailable
18
Hex. Elastic Flange Nut M8
233281416
Unavailable
19
Conical Spring Washer M8
234281474
Unavailable
20
Hex. Flange Elastic Nut M12
250000047
Unavailable
21
Torx Screw M5 X 14
250000742
Unavailable
22
Torx Screw M6 X 16
250000223
Unavailable
23
Nut M12
250100099
Unavailable
24
Hardened Washer
706200281
Unavailable
28
Tie-Rap 180 mm
414115200
Unavailable
29
Hardened Washer
706200281
Unavailable
30
Small Bracket | DS 650 X
709400161
Unavailable
31
Large Bracket | DS 650 X
709400162
Unavailable
32
Not Available As Spare Parts
XXX
Unavailable
33
End Piece
709400449
Unavailable
34
LH Ball Joint
709402303
Unavailable
35
Black, Handle Bar
709401240
Unavailable
36
RH Ball Joint
709402302
Unavailable
37
Not Available As Spare Parts
XXX
Unavailable
38
Handle Grip
709400493
Unavailable
39
Not Available As Spare Parts
XXX
Unavailable
40
Not Available As Spare Parts
XXX
Unavailable
41
Stiffner
709400509
Unavailable
42
Not Available As Spare Parts
XXX
Unavailable
43
Not Available As Spare Parts
XXX
Unavailable
45
Deep Black RH Air Deflector | Camo Model
709401303
Unavailable
46
Deep Black LH Air Deflector | Camo Model
709401304
Unavailable
48
Bellows
709400674
Unavailable
49
Kit Tube-Main.
703501137
Unavailable
50
Spherical Half Bushing
709400783
Unavailable
51
Upper Column Attachment
709400827
Unavailable
52
Power Steering Module Bracket
709400848
Unavailable
53
Column Attachment
709401428
Unavailable
54
Steering Support
709400919
Unavailable
55
Cover
709400939
Unavailable
56
RH STEERING BRACKET - Call your local BRP dealership
709400994
Unavailable
57
HEAT DEFLECTOR - Call your local BRP dealership
709401005
Unavailable
58
Tie Rod Ass`y | Includes 15 to 17
703501038
Unavailable
60
Power Steering
709401608
Unavailable
61
Pitman Kit
703500812
Unavailable
100
Tie Rod Ass`y | Includes 15 to 17
703501038
Unavailable
101
Air Deflector Support Kit | X
715001378
Unavailable
