07- Drive System, Front

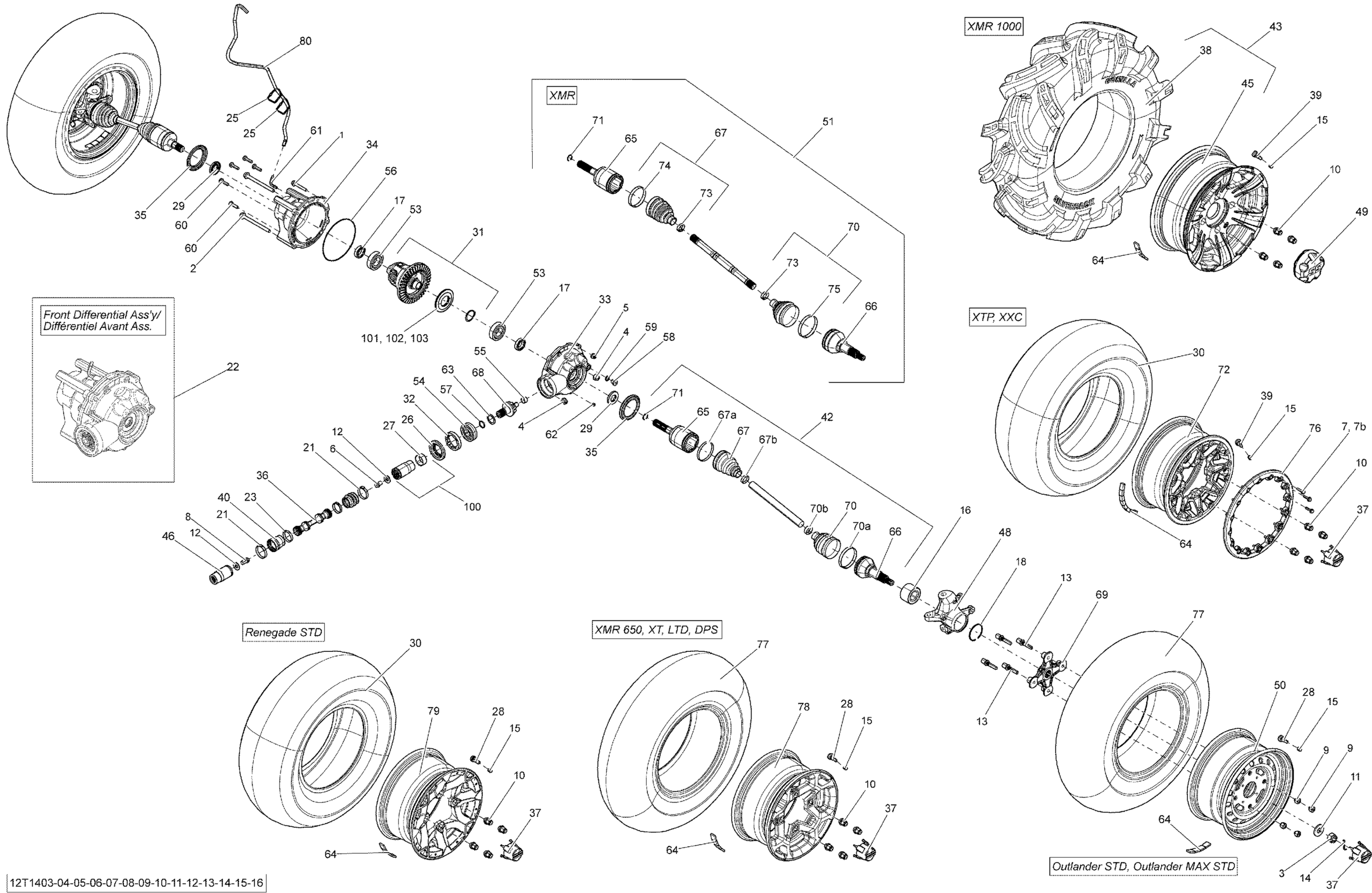

Can-Am Outlander 650EFI XMR, 2014 07- Drive System, Front Diagram
#
1
Hex. Flange Screw M8 X 55
207685544
Unavailable
2
Hex. Flange Screw M10 X 125
230602546
Unavailable
3
Hex. Flange Castellated Nut M18
232291413
Unavailable
4
Hex. Flange Elastic Nut M10
233201436
Unavailable
5
Hex. Flange Elastic Nut M8
233281414
Unavailable
6
HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership
250000378
Unavailable
7
Not Available As Spare Parts
XXX
Unavailable
7b
Not Available As Spare Parts
XXX
Unavailable
8
Hex Flange Screw M12 X 20
250001042
Unavailable
9
Not Available As Spare Parts
XXX
Unavailable
10
Black, Wheel Nut M10 X 1.25
250100184
Unavailable
11
Conical Spring Washer M18
250200171
Unavailable
12
Flat Washer M12
250200102
Unavailable
13
Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4
250300643
Unavailable
14
Cotter Pin
250400036
Unavailable
15
Valve Cap
293000110
Unavailable
16
Ball Bearing
293350150
Unavailable
17
Ball Bearing | 4X4
293350044
Unavailable
18
Circlip
293370019
Unavailable
21
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
22
Front Differential | XT, XT-P, Includes 9 to 29
703500908
Unavailable
23
Oetiker Gear Clamp
293650199
Unavailable
25
Tie-Rap 180 mm
414115200
Unavailable
26
Oil Seal | 4X4
705401481
Unavailable
27
Wear Ring | 4X4
705400036
Unavailable
28
Rim Valve With Cap
705400193
Unavailable
29
Gasket | 4X4
705401618
Unavailable
30
Not Available As Spare Parts
XXX
Unavailable
31
DIFFERENTIAL KIT - Call your local BRP dealership
703500872
Unavailable
32
Nut | 4X4
705401603
Unavailable
33
FRONT COVER - Call your local BRP dealership
705400761
Unavailable
34
FRONT COVER - Call your local BRP dealership
705400762
Unavailable
35
Wear Sleeve
705400780
Unavailable
36
Propeller Shaft | Includes 1 to 2
705400913
Unavailable
37
Wheel Cap
705400928
Unavailable
38
Not Available As Spare Parts
XXX
Unavailable
39
Rim Valve With Cap
705400193
Unavailable
40
Rubber Boot
705401093
Unavailable
42
Not Available As Spare Parts
XXX
Unavailable
43
Not Available As Spare Parts
XXX
Unavailable
45
Not Available As Spare Parts
XXX
Unavailable
46
Front Bushing Shaft Kit | 4X4
703500678
Unavailable
48
LH Knuckle
705403307
Unavailable
48
RH Knuckle
705403308
Unavailable
49
Not Available As Spare Parts
XXX
Unavailable
50
Not Available As Spare Parts
XXX
Unavailable
51
Performance CV Axle - Front Right
705401703
Unavailable
51
Performance CV Axle - Front Left
705401704
Unavailable
53
Ball Bearing | 4X4
705401606
Unavailable
54
Ball Bearing | 4X4
705500260
Unavailable
55
Needle Bearing | 4X4
705500261
Unavailable
56
Seal | 4X4
705500265
Unavailable
57
O-Ring | 4X4
705500267
Unavailable
58
Fill Level Plug | 4X4
705500504
Unavailable
59
Copper Washer | 4X4
705500506
Unavailable
60
Screw | 4X4
705401601
Unavailable
61
VENT VALVE - Call your local BRP dealership | 4X4
705500893
Unavailable
62
Drain Plug | 4X4
705500894
Unavailable
63
Pinion Gear Shim
705501162
Unavailable
64
Not Available As Spare Parts
XXX
Unavailable
65
RH Plunging CV Joint
715900395
Unavailable
65
LH Plunging CV Joint
715900396
Unavailable
66
CV Joint
705401407
Unavailable
67
Boot Kit, Différential Side
705401355
Unavailable
67a
Not Available As Spare Parts
XXX
Unavailable
67b
Not Available As Spare Parts
XXX
Unavailable
68
10 TEETH PINION - Call your local BRP dealership
705501588
Unavailable
69
Wheel Hub Ass'y
705501716
Unavailable
70
Boot Kit, Wheel Side
705401354
Unavailable
70a
Not Available As Spare Parts
XXX
Unavailable
70b
Not Available As Spare Parts
XXX
Unavailable
71
Circlip Joint | Not shown
705401349
Unavailable
72
Not Available As Spare Parts
XXX
Unavailable
73
Oetiker Clamp, Small
715900261
Unavailable
74
Oetiker Clamp, Large
715900262
Unavailable
75
Oetiker Clamp, Large
715900260
Unavailable
76
Not Available As Spare Parts
XXX
Unavailable
77
TIRE_28X8R12 F - Call your local BRP dealership
705401391
Unavailable
78
Black, Rim | XT
705401420
Unavailable
79
Not Available As Spare Parts
XXX
Unavailable
80
Polyurethane Hose 10000Mm Long
219704410
Unavailable
100
Front Bushing Shaft Kit | 4X4
703500678
Unavailable
101
Shim | 4X4
705401604
Unavailable
102
Shim | 4X4
705401604
Unavailable
103
Pinion Gear Shim 1.67 mm
705502061
Unavailable
