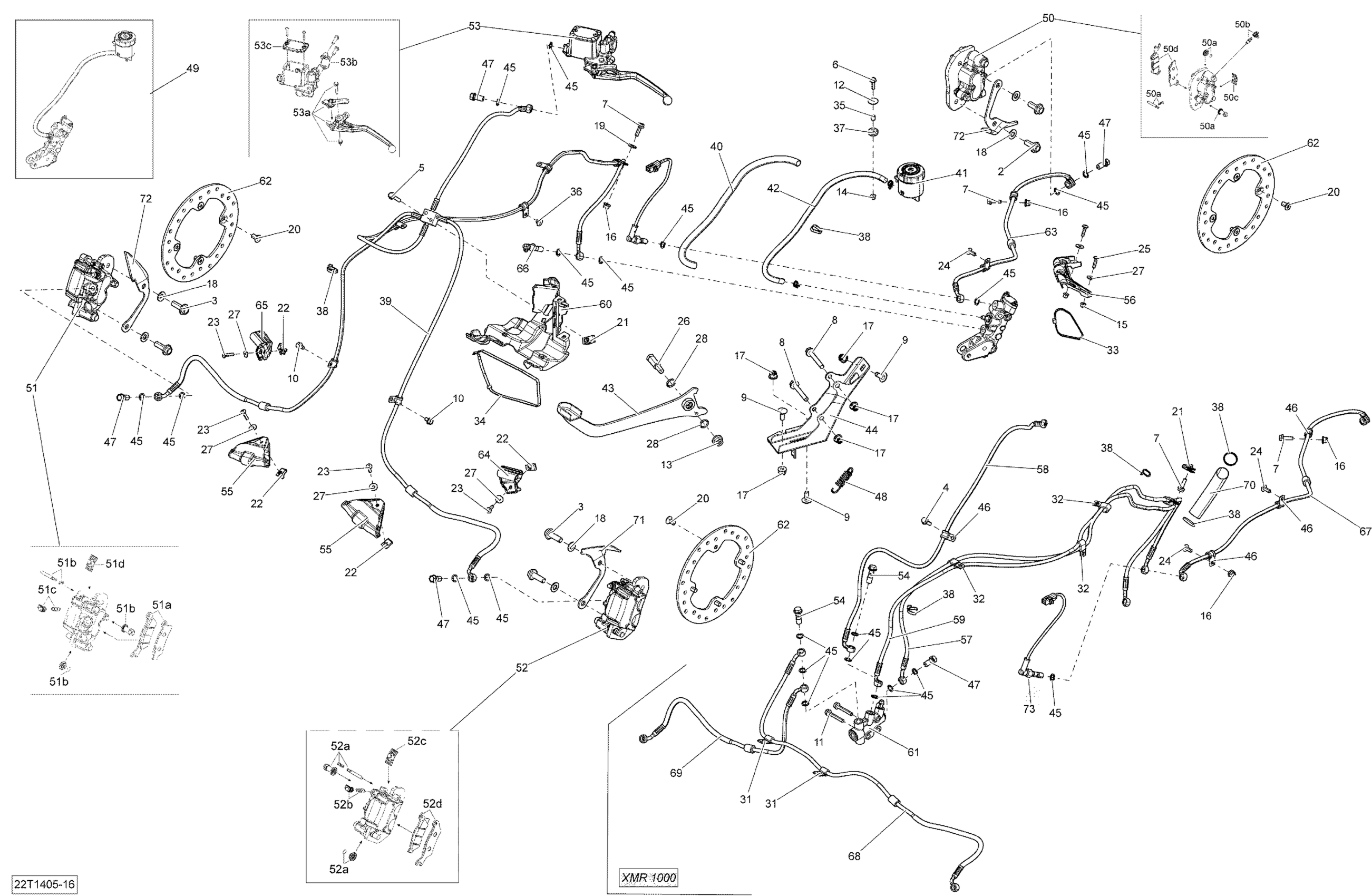

Can-Am Outlander 650EFI XMR, 2014 06- Brakes Diagram
#
2
Hex. Flange Screw M10 X 25
207502546
Unavailable
3
Hex. Flange Screw M10 X 30, Scotch Grip
207503046
Unavailable
4
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
5
Hex. Flange Screw M6 X 30, Scotch Grip
207563044
Unavailable
6
Hex.Flange Screw M5 X 20
207652044
Unavailable
7
Hex. Flange Screw M6 X 20
207662044
Unavailable
8
Hex. Flange Screw M8 X 55
207685544
Unavailable
9
Carriage Bolt, M8 X 20
207782044
Unavailable
10
Hex. Flange Screw M6 X 10
210261040
Unavailable
11
Not Available As Spare Parts
XXX
Unavailable
12
Flat Washer
224060201
Unavailable
13
Hex. Flange Elastic Nut M10
233201436
Unavailable
14
Hex. Flange Elastic Nut M5
233251414
Unavailable
15
Elastic Flange Nut M5
233251494
Unavailable
16
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
17
Hex. Flange Elastic Nut M8
233281414
Unavailable
18
Flat Washer 10 mm
234001410
Unavailable
19
Flat Washer 6 mm
234062410
Unavailable
20
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
21
Panel Nut M6 X 1.0
250100198
Unavailable
22
Panel Nut M5 X 0.8
250000958
Unavailable
23
Torx Screw M5 X 20
250000724
Unavailable
24
Torx Screw M6 X 16
250000755
Unavailable
25
Torx Screw M5 X 20
250000792
Unavailable
26
Shoulder Screw M10
250000513
Unavailable
27
Washer M5
250200025
Unavailable
28
O-Ring
293300144
Unavailable
31
Not Available As Spare Parts
XXX
Unavailable
32
Not Available As Spare Parts
XXX
Unavailable
33
Tie Wrap 368 mm
293750008
Unavailable
34
Tie Rap, 533 mm
293750047
Unavailable
35
Bushing
293900112
Unavailable
36
Pop Rivet 3/16"
390406500
Unavailable
37
Grommet
414036300
Unavailable
38
Tie-Rap 180 mm
414115200
Unavailable
39
LH RH Front Hose
705601519
Unavailable
40
Not Available As Spare Parts
XXX
Unavailable
41
Oil Tank
705601020
Unavailable
42
Oil Housing Hose
705601019
Unavailable
43
Deep Black, Brake Pedal
705602163
Unavailable
44
Brake Pedal Bracket
705202000
Unavailable
45
Copper Washer
705601628
Unavailable
46
Clamp
293650256
Unavailable
47
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
48
Brake Pedal Spring
705600792
Unavailable
49
Rear Master Cylinder | Includes 21 to 23
705601273
Unavailable
50
RH Rear Brake Caliper | Includes 41 to 45
705602190
Unavailable
50a
Pin Set
705601016
Unavailable
50b
Bleeding Screw
705601017
Unavailable
50c
Retaining Spring
705601018
Unavailable
50d
RH Organic Brake Pad Kit
705601014
Unavailable
51
RH Front Caliper Ass'y | Includes 1 to 5
705600861
Unavailable
51a
RH Organic Brake Pad Kit
705601014
Unavailable
51b
Pin Set
705601016
Unavailable
51c
Bleeding Screw
705601017
Unavailable
51d
Retaining Spring
705601018
Unavailable
52
LH Front Caliper Ass'y | Includes 6 to 10
705600862
Unavailable
52a
Pin Set
705601016
Unavailable
52b
Bleeding Screw
705601017
Unavailable
52c
Retaining Spring
705601018
Unavailable
52d
LH Organic Brake Pad Kit
705601015
Unavailable
53
LH Front Master Cylinder | Includes 11 to 14
705601430
Unavailable
53a
Lever Set
705601013
Unavailable
53b
Clamp And Screw Kit
507032477
Unavailable
53c
Cap Set
219800096
Unavailable
54
Not Available As Spare Parts
XXX
Unavailable
55
Hose Guard
705601893
Unavailable
56
REAR HOSE PROTECTOR - Call your local BRP dealership
705600963
Unavailable
57
Not Available As Spare Parts
XXX
Unavailable
58
Not Available As Spare Parts
XXX
Unavailable
59
Not Available As Spare Parts
XXX
Unavailable
60
Front Hose Bracket
705600983
Unavailable
61
Not Available As Spare Parts
XXX
Unavailable
62
Disc Brake
705600999
Unavailable
63
Brake Line Ass'y
705601002
Unavailable
64
LH Hose Bracket
705601048
Unavailable
65
RH Hose Bracket
705601049
Unavailable
66
Bleeding Screw
705601051
Unavailable
67
Not Available As Spare Parts
XXX
Unavailable
68
Not Available As Spare Parts
XXX
Unavailable
69
Not Available As Spare Parts
XXX
Unavailable
70
Not Available As Spare Parts
XXX
Unavailable
71
LH Deflector
705601214
Unavailable
72
RH Deflector
705601215
Unavailable
73
Brake Switch
705601250
Unavailable
