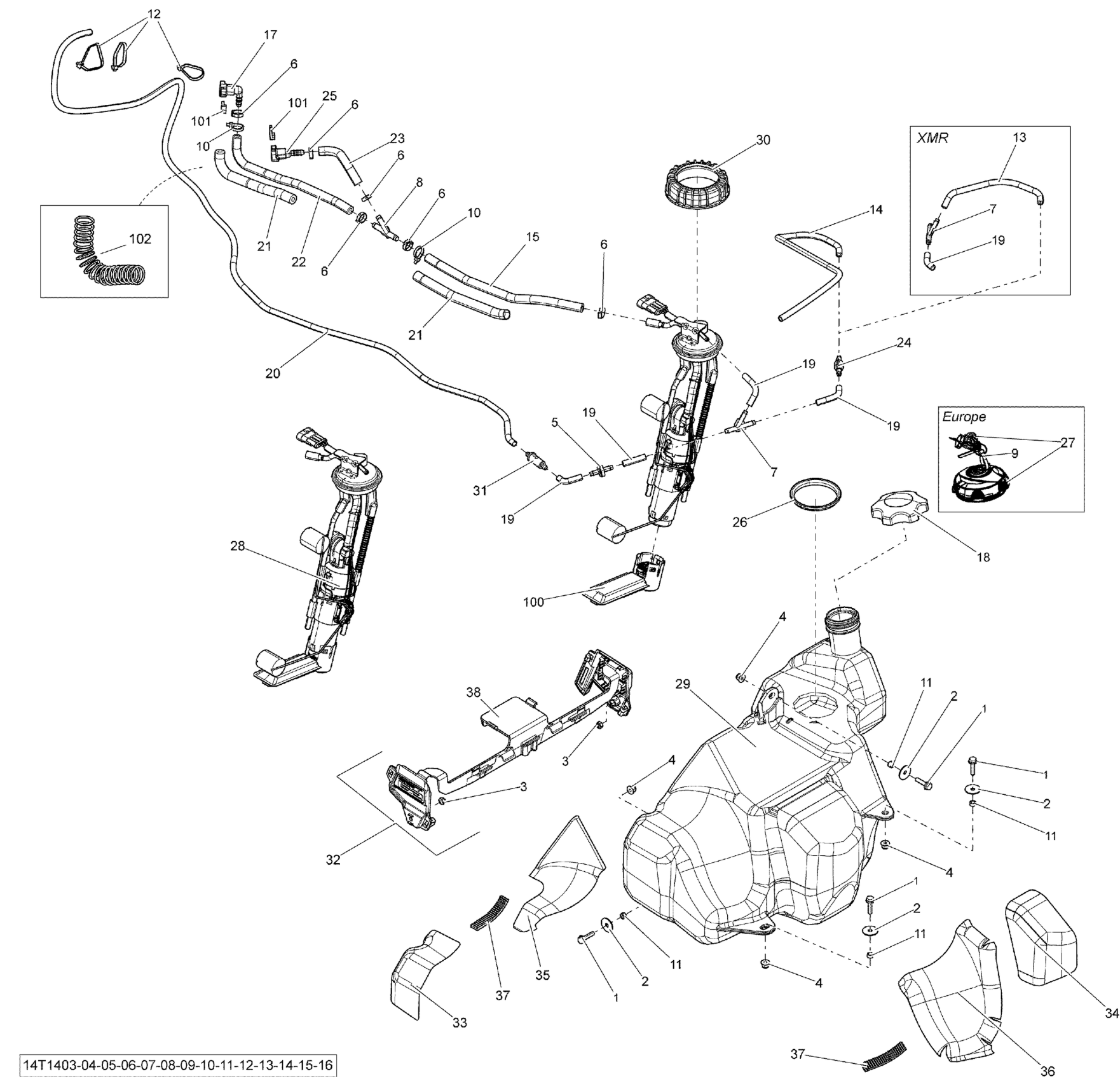

Can-Am Outlander 650EFI XMR, 2014 Fuel System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 25

207662544

$0.64

2

Washer

224060251

$0.58

3

Hex. Elastic Stop Nut M6

232561600

$1.15

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

5

Check Valve

275500398

$10.99

6

Crimp Clamp, 15.3-706R

293650047

$3.29

7

Y-Fitting

293710059

$9.69

8

Y-Fitting, 5/16''

293710136

$6.49

9

Tie Wrap 94 mm | 4X4

293750001

$1.03

10

Tie Wrap 142 mm

293750002

$1.25

11

Bushing | DS 650 X

293900104

$5.50

12

Tie-Rap 180 mm

414115200

$0.11

13

Polyurethane Hose 10000Mm Long

219704410

$56.99

14

Was 709000163 Fuel Line

219704440

$28.99

15

Was 709000163 Fuel Line

219704440

$28.99

17

Quick Fitting 90° Ass'y

415128965

$10.99

18

Fuel Tank Cap

513033025

$24.49

19

Polyurethane Hose 10000Mm Long

219704410

$56.99

20

Polyurethane Hose 10000Mm Long

219704410

$56.99

21

Tubing 16 Mm 1000Mm Long

219704408

$7.49

22

Was 709000163 Fuel Line

219704440

$28.99

23

Was 709000163 Fuel Line

219704440

$28.99

24

Check Valve

513033469

$31.99

25

Female Quick Fitting Ass'y

709000125

$15.49

26

Seal

709000208

$14.99

27

Locking Cap Tank | Europe

860200387

$58.49

28

Fuel Pump | Includes 10a to 10b

709001517

$340.99

29

Fuel Tank Ass'y | Includes 1 to 2

709000799

Unavailable

30

Fuel Pump Module Nut

709000328

$13.75

31

Filter

709000330

$7.79

32

Hose Support Ass'y

709000359

$14.31

33

Heat Reflective Sheet

709000381

$6.99

34

Heat Reflective Sheet

709001071

$10.49

35

Heat Reflective Sheet

709000387

$5.09

36

Heat Reflective Sheet

709000388

$6.39

37

RUBBER PAD - Call your local BRP dealership

293830129

Unavailable

38

Hose Support Ass'y

709000359

$14.31

100

Fuel Pre-Filter Kit

709000389

$79.49

101

Locking Clip

513033135

$5.89
