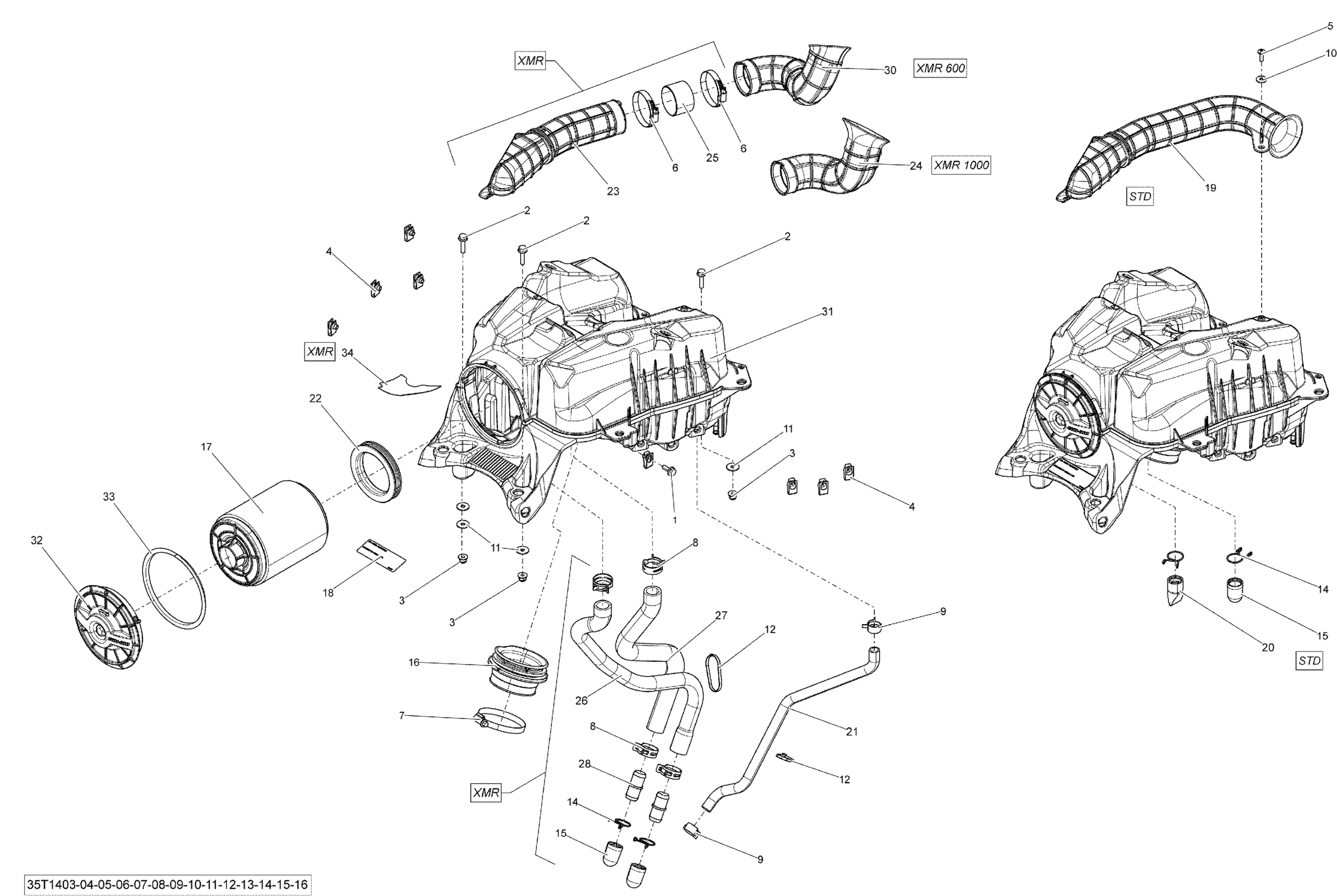

Can-Am Outlander 650EFI XMR, 2014 Air Intake Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.74

2

Hex. Flange Screw M6 X 25

207662534

$2.11

3

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4

Panel Nut M6 X 1.0

250100198

$2.11

5

Not Available As Spare Parts

XXX

Unavailable

6

Norma Clamp

293650077

$7.41

7

Norma Clamp

293650091

$11.12

8

Norma Spring Clamp

293650109

$4.12

9

Norma Clamp

293650110

$4.54

10

Not Available As Spare Parts

XXX

Unavailable

11

Flat Washer

250200082

$0.42

12

Tie-Rap 180 mm

414115200

$0.11

14

Retainer Clip

707800278

$13.99

15

Drain Tube

707800080

$8.29

16

Intake Adaptor

707800333

$19.99

17

Air Filter

707800371

$40.99

18

Air Filter Maintenance Decal

707800373

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Vent Hose

707800453

$25.99

22

Air Filter Adaptor

707800470

$19.99

23

Air Intake Hose

707800501

$55.99

24

Not Available As Spare Parts

XXX

Unavailable

25

Ring

707800504

$53.99

26

Formed Hose

707800510

$36.99

27

Formed Hose

707800511

$36.99

28

Straight Fitting

270001073

$11.12

30

Air Intake Front

707800528

$38.99

31

Intake Silencer

707800531

Unavailable

32

Intake Silencer Cap Ass'y

715002174

$17.49

33

Gasket

293300175

$13.99

34

Heat Shield

707002106

$10.49
