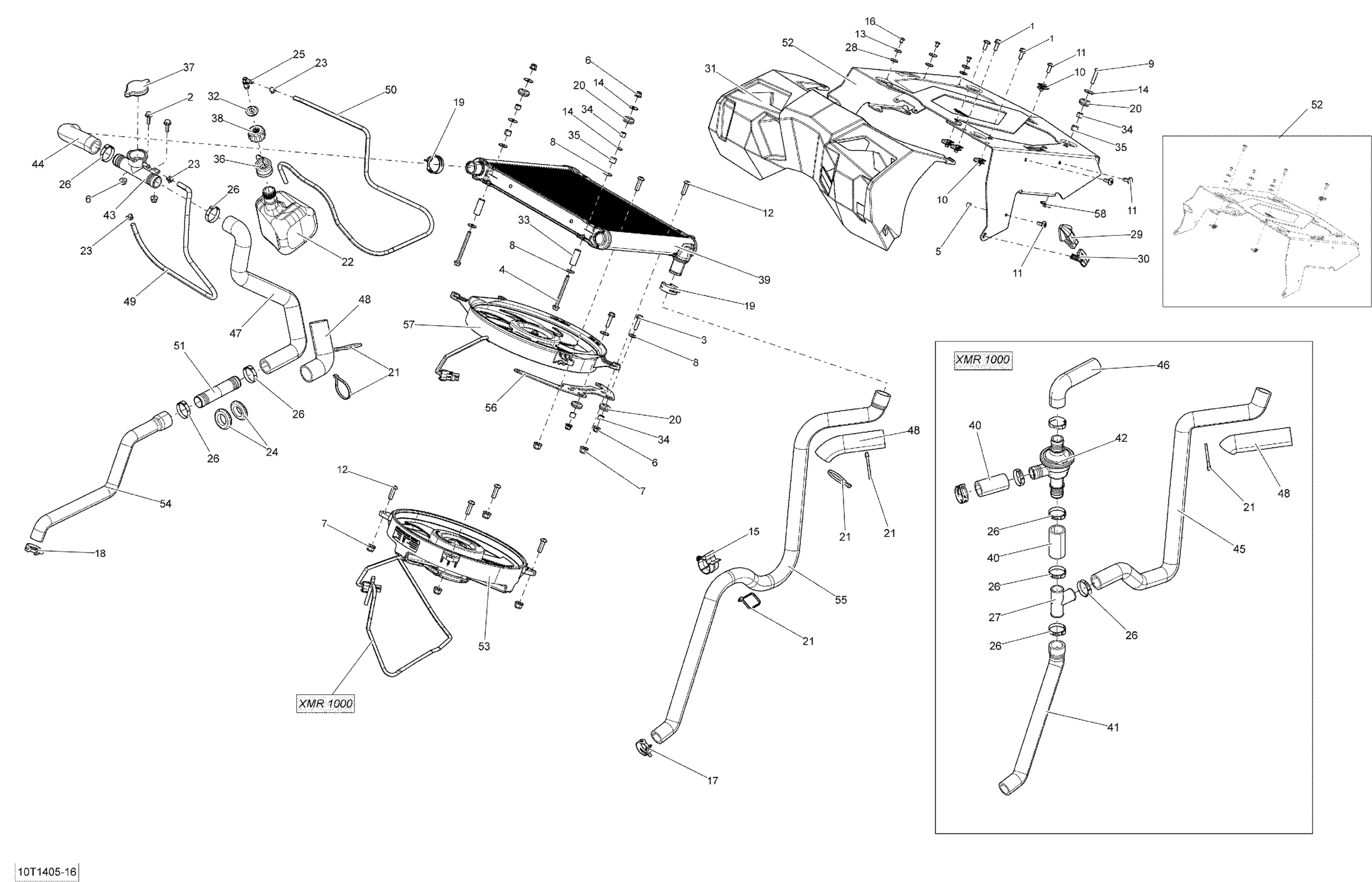

Can-Am Outlander 650EFI XMR, 2014 Cooling System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

2

Hex. Flange Screw M6 X 20

207662034

$2.11

3

Hex. Flange Screw M6 X 25

207662544

$0.64

4

Hex. Flange Screw M6 X 70

207667044

$0.85

5

Elastic Stop Nut M6

232561414

$0.55

6

Flange Elastic Nut M6

233261434

$4.44

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Flat Washer M6, Stainless

234062600

$0.77

9

Torx Screw M6 X 30

235563054

$4.44

10

Panel Nut M6 X 1.0

250100198

$2.11

11

Torx Screw M6 X 16

250000223

$2.11

12

Torx Screw M8 X 25, Scotch Grip

250000283

$6.25

13

Rubber Washer 5 mm

250200024

$2.19

14

Flat Washer

250200040

$1.90

15

Retainer

275500590

$9.69

16

Rivet 3/16"

293150102

$0.70

17

Norma Spring Clamp

293650108

$4.12

18

Norma Spring Clamp

293650109

$4.12

19

Norma Spring Clamp

293650166

$4.44

20

Grommet

293720062

$5.39

21

Tie-Rap 180 mm

414115200

$0.11

22

Coolant Tank Ass'y

709200624

$27.99

23

Spring Clamp

414554800

$0.88

24

Grommet

293720096

$11.49

25

Male Connector

414580700

$4.12

26

Gear Clamp

509000162

$7.29

27

Not Available As Spare Parts

XXX

Unavailable

28

Washer

517124300

$0.19

29

Black Latch Kit | Includes 390 to 400

860200239

$16.88

30

Panel Latch

517303981

$12.99

31

Protection Cover Kit

703100399

$88.99

32

Grommet

705003264

$4.09

33

Bushing

705202499

$6.67

34

Spacer

707000058

$13.49

35

Bushing

708001129

$11.99

36

Hose Anchor

709200036

$11.12

37

Radiator Pressure Cap

709200207

$25.49

38

Cap

709200586

$11.11

39

Radiator

709200286

$476.99

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Filler Neck

709200422

$18.49

44

Hose

709200891

$14.31

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

47

Outlet Hose

709200892

$35.99

48

Tubing 35 MM 1000MM Long

219704428

$10.99

49

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

50

Polyurethane Hose 10000Mm Long

219704410

$56.99

51

Nipple Tube 1"

709200448

$20.99

52

ASS. SUPPORT - Call your local BRP dealership | Includes 30a to 30f

715002316

Unavailable

53

Not Available As Spare Parts

XXX

Unavailable

54

Outlet Hose

709200484

$34.99

55

OUTLET HOSE ENGINE SIDE - Call your local BRP dealership

709200485

Unavailable

56

Aupport_Fan Ecoat

709201349

$27.49

57

Fan Ass'y

709200567

$284.99

58

CLIP NUT M6 X 1 - Call your local BRP dealership

715900148

Unavailable
