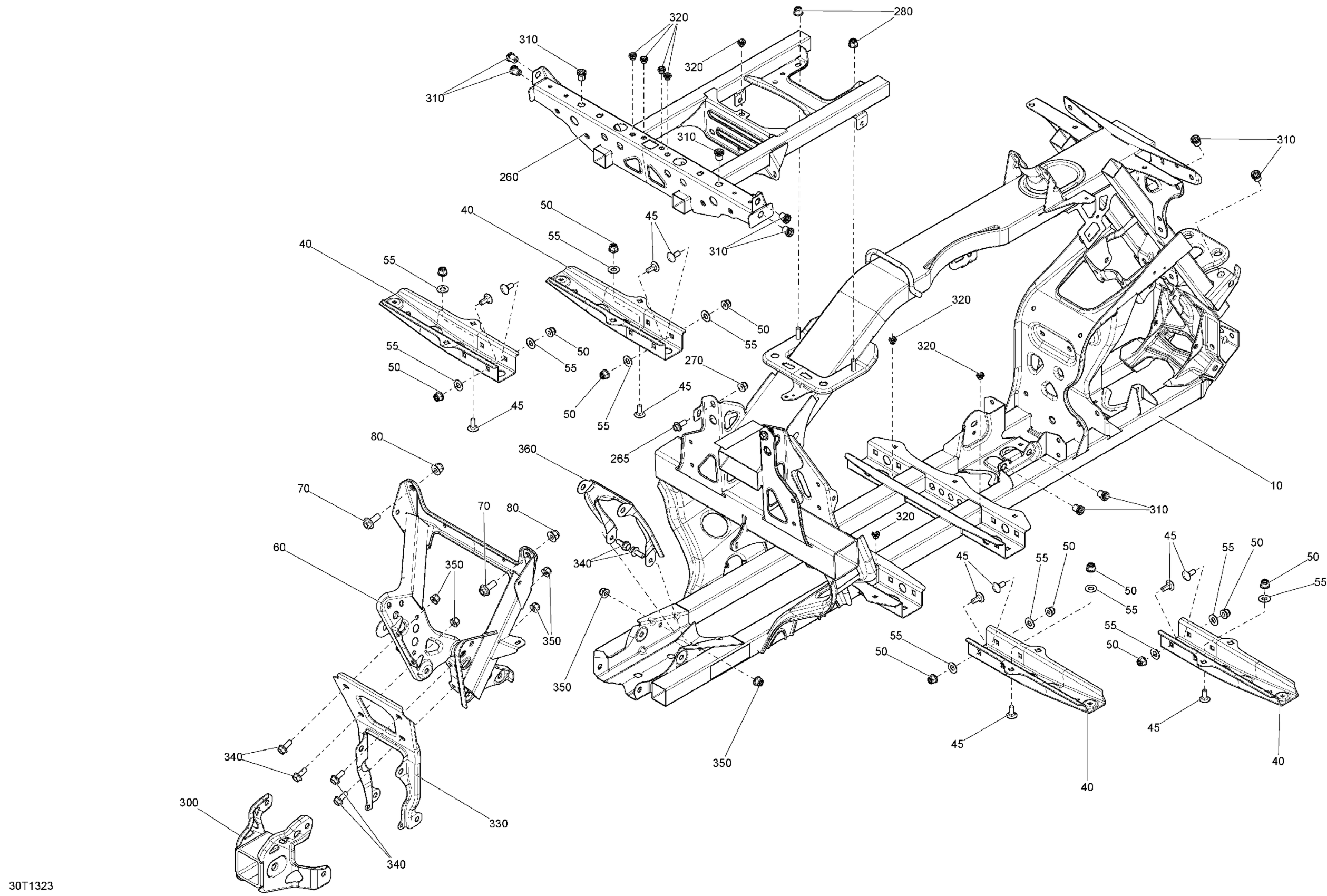

Can-Am Outlander 650EFI XMR, 2013 09- Frame Diagram
#
Description
Price
10
FRAME, BLACK - Call your local BRP dealership
705203598
Unavailable
40
SUPPORT KIT - Call your local BRP dealership
703500852
Unavailable
45
Carriage Bolt, M8 X 20
207782044
Unavailable
50
Hex. Flange Elastic Nut M8
233281414
Unavailable
55
Flat Washer 10 mm
234001410
Unavailable
60
Rear Pillar
705210818
Unavailable
70
Hex. Flange Screw M10 X 25
207602546
Unavailable
80
Hex. Flange Elastic Nut M10
233201436
Unavailable
260
WELDED EXTENSION, BLACK - Call your local BRP dealership
705202291
Unavailable
265
Hex. Flange Screw M10 X 25
207602546
Unavailable
270
Hex. Flange Elastic Nut M10
233201436
Unavailable
280
Hex. Flange Elastic Nut M8
233281414
Unavailable
300
Trailer Hitch
715005186
Unavailable
310
Insert Half Hex Body M8 x 1.25
293450307
Unavailable
320
Threaded Insert M6 X 1.0
250100242
Unavailable
330
Rear Support
705203301
Unavailable
340
Hex. Flange Screw M8 X 20
207682046
Unavailable
350
Hex. Elastic Flange Nut M8
233281416
Unavailable
360
FRONT LINK - Call your local BRP dealership
705202900
Unavailable
