09- Body And Accessories

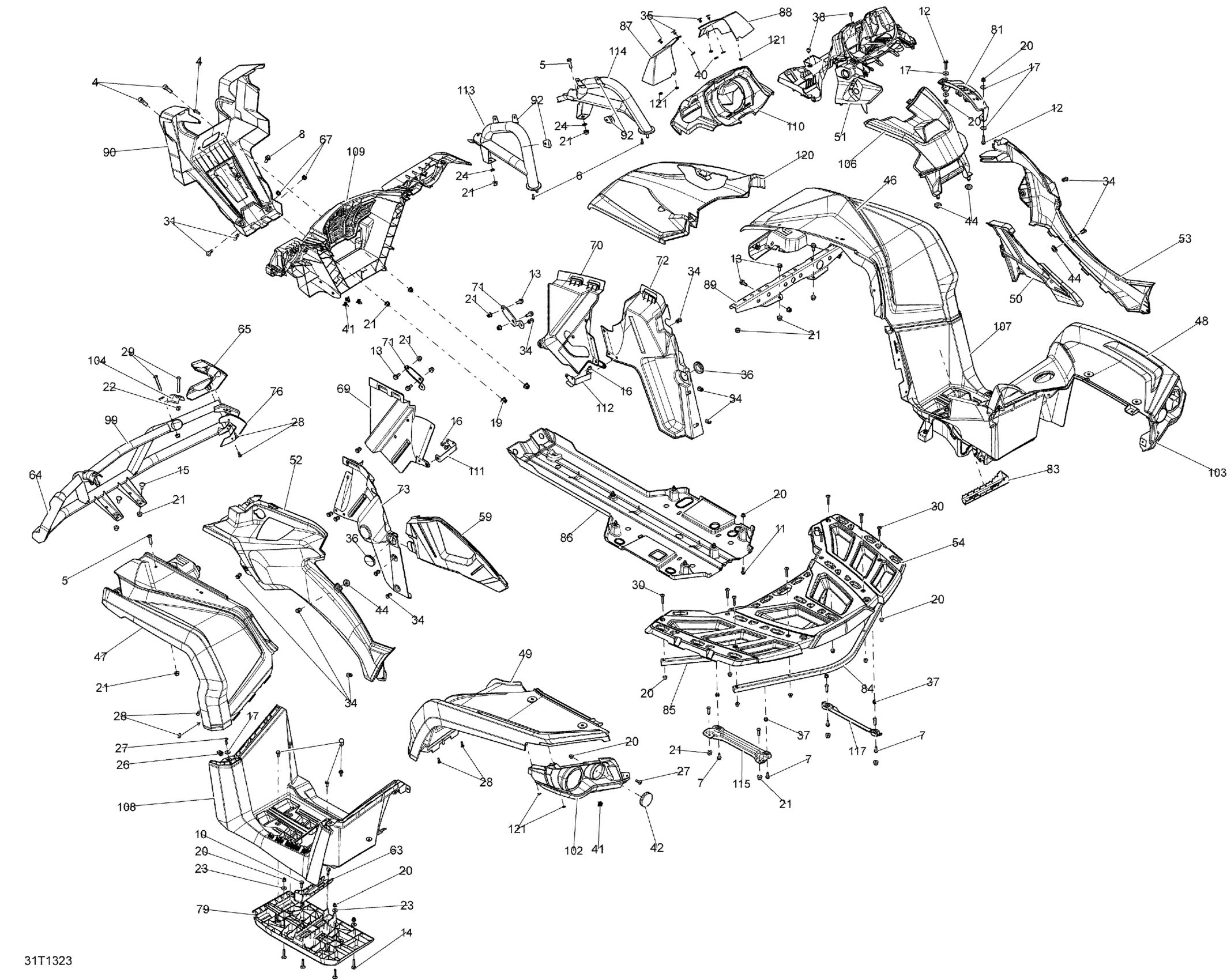

Can-Am Outlander 650EFI XMR, 2013 09- Body And Accessories Diagram
#
4
Socket Screw M10 x 30 | XT
205003044
Unavailable
4
Hex. Screw M8 X 20
236282084
Unavailable
5
Hex. Cap Screw M8 X 30
207183054
Unavailable
6
Hex. Flange Screw, Scotch Grip
207551634
Unavailable
7
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
8
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
9
Hex. Flange Screw M6 X 16
207661654
Unavailable
10
Hex. Flange Screw M6 X 20
207662034
Unavailable
11
Hex. Flange Screw M6 X 20
207662084
Unavailable
12
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
13
Hex. Flange Screw M8 X 20
207682044
Unavailable
14
Carriage Bolt M6 X 35
207763554
Unavailable
15
Carriage Bolt, M8 X 20
207782044
Unavailable
16
Hex. Flange Screw M6 X 10
210261040
Unavailable
17
Flat Washer
224061201
Unavailable
19
Hex. Flange Elastic Nut M10
233201434
Unavailable
19
Hex. Flange Elastic Nut M8
233281434
Unavailable
20
Flange Elastic Nut M6
233261434
Unavailable
21
Hex. Flange Elastic Nut M8
233281434
Unavailable
22
Elastic Flange Nut M8
233281464
Unavailable
23
Flat Washer 6 mm
234062410
Unavailable
24
Stainless Steel Flat Washer 8 mm
234081670
Unavailable
26
Panel Nut M6 X 1.0
250100198
Unavailable
27
Torx Screw M6 X 20
250000722
Unavailable
28
Torx Screw K50 X 16
250000720
Unavailable
29
Torx Screw M8 X 55
250000535
Unavailable
30
Torx Screw M6 X 35
250000541
Unavailable
31
Torx Screw M8 X 30
250000886
Unavailable
34
Tuflok Plastic Rivet
293150230
Unavailable
35
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
36
Rubber Cover
293250242
Unavailable
37
Threaded Insert M6 X 1.0
250100242
Unavailable
38
Rubber Bumper
293830005
Unavailable
40
Washer
517124300
Unavailable
41
Edge Clip
517302785
Unavailable
42
Red Reflector
705011221
Unavailable
44
Grommet
705003264
Unavailable
46
Black RH Front Fender Kit | Includes 3 to 3a, Black
715001514
Unavailable
47
Black LH Front Fender Kit | Includes 2 to 2b, Black
715002301
Unavailable
48
Black RH Rear Fender Kit | Includes 7 to 7a, Black North America
705005221
Unavailable
48
RH Rear Fender Kit, Black | Includes 7 to 7a, Black
715001818
Unavailable
49
Black LH Rear Fender Kit | Includes 6 to 6c, Black
715001798
Unavailable
50
Engine Cover
705003444
Unavailable
51
Dash Support Kit
715001552
Unavailable
52
Yellow, LH Lateral Panel | Yellow
705003446
Unavailable
53
Yellow, RH Lateral Panel | Yellow
705009019
Unavailable
54
Luggage Rack Kit
715001852
Unavailable
59
Deflector_Body Panel Kit
715007008
Unavailable
63
LH Footrest
705004352
Unavailable
64
Cap (Front LH) (Rear RH) | XT
705004409
Unavailable
65
Cap (Front RH) (Rear LH) | XT
705004410
Unavailable
67
Ring
705004497
Unavailable
69
LH Front Inner Fender
705011465
Unavailable
70
RH Front Inner Fender
705011463
Unavailable
71
Lower Fender Support
705004565
Unavailable
72
RH Rear Inner Fender
705011462
Unavailable
73
LH Rear Inner Fender
705013111
Unavailable
76
Bracket Cover | XT
705004987
Unavailable
79
LH Structural Footboard
705011540
Unavailable
79
RH Structural Footboard
705011542
Unavailable
81
Shifter Gate | 800 North America, 800 International
705011546
Unavailable
83
RH Footrest
705005395
Unavailable
84
Sectional Bent Tube
705016640
Unavailable
85
Bent Sectional Tube
705016092
Unavailable
86
Protective Plate Kit
715002374
Unavailable
87
LH Air Deflector
705006134
Unavailable
88
RH Air Deflector
705006135
Unavailable
89
Front Bumper Center Support
705006220
Unavailable
90
Front Guard Plate | North America, International
705006299
Unavailable
92
Not Available As Spare Part - Friction Washer
Unavailable
99
Deep Black, Front Bumper
705014128
Unavailable
102
LH Rear Facia | North America, International
705006643
Unavailable
103
RH Rear Facia | North America, International
705006650
Unavailable
104
Black Upper Bracket
705006691
Unavailable
106
Dash Kit
715006098
Unavailable
107
RH Step
705007039
Unavailable
108
LH Step
705007040
Unavailable
109
Fascia
705012822
Unavailable
110
Gauge Support
705007095
Unavailable
111
LH Inner Fender Bracket
705007140
Unavailable
112
RH Inner Fender Bracket
705007141
Unavailable
113
LH RADIATOR SUPPORT - Call your local BRP dealership
705007878
Unavailable
114
RH Radiator Support
705007879
Unavailable
115
LH Support
705007277
Unavailable
117
RH Support
705007278
Unavailable
120
Yellow Hood Kit
708301154
Unavailable
121
Push Nut
732610072
Unavailable
