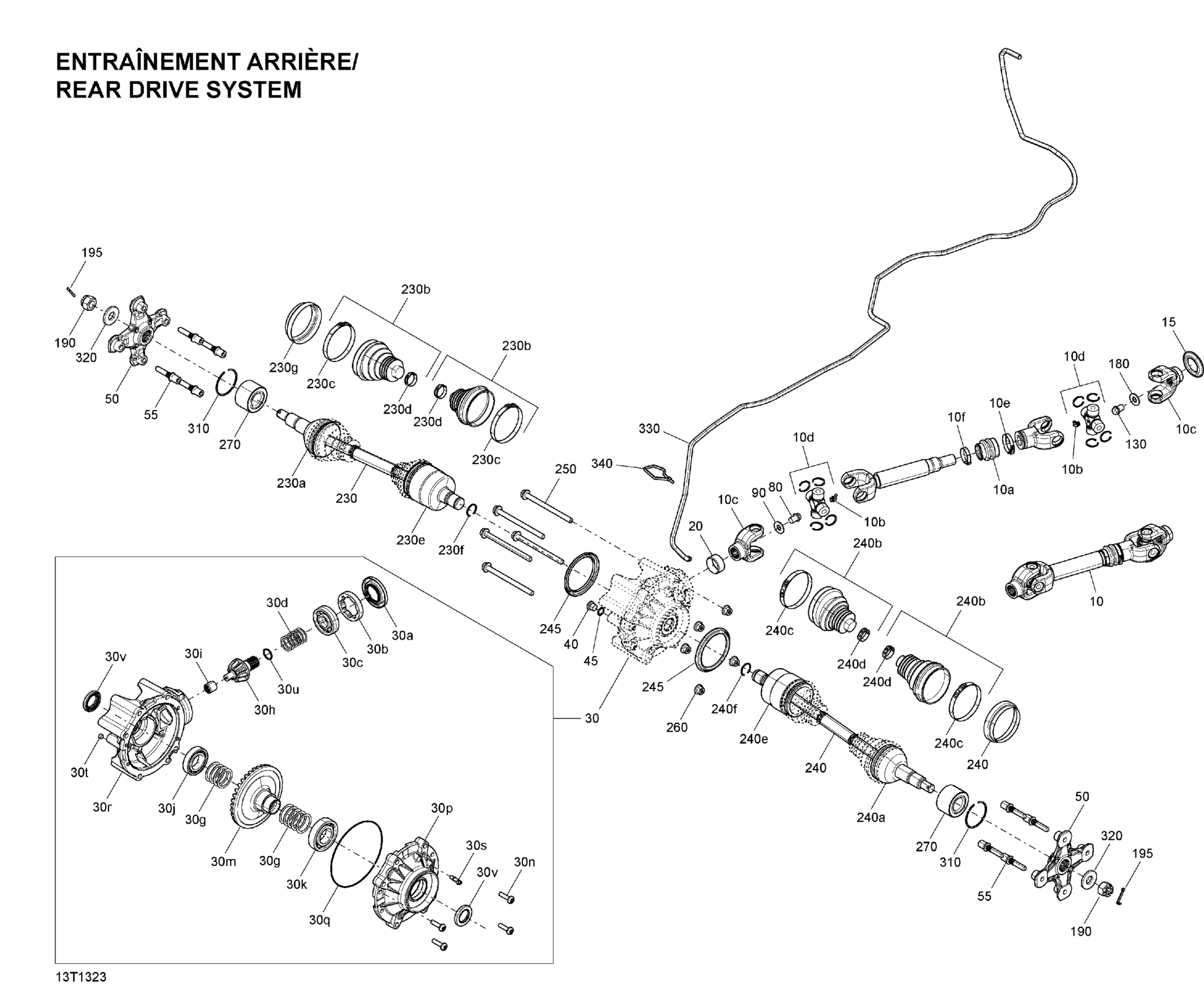

Can-Am Outlander 650EFI XMR, 2013 Drive System, Rear Diagram

#

Description
Price

10

Shaft Ass'y Kit | Incldues 1 to 5

703500986

$307.49

10a

Rubber Boot

715900118

$14.30

10b

Grease Fitting

715900184

$5.24

10c

Fixe Yoke

715900101

$29.49

10d

Universal Joint

715900326

$68.99

10e

Oetiker Gear Clamp 36.1MM

509000045

$8.29

10f

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

15

Protector

705501123

$7.55

20

Wear Ring | 4X4

705400036

$26.49

30

Rear Differential Ass'y | Includes 12 to 31

705501419

Unavailable

30a

Oil Seal | 4X4

705401481

$19.49

30b

Nut

705502059

$32.99

30c

Ball Bearing | 4X4

705500260

$31.99

30d

Pinion Gear Shim .022"

705500075

Unavailable

30d

Pinion Gear Shim 1.67 mm

705502061

$18.99

30d

Pinion Gear Shim

705501162

$16.49

30g

Differential Shim 0.02 mm

705502060

$13.76

30h

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99

30i

Needle Bearing

705501408

$69.99

30j

Ball Bearing

705502737

$48.49

30k

Ball Bearing

705502738

$59.49

30m

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$459.99

30n

Screw | 4X4

705401601

$10.49

30p

REAR DIFFERENTIAL COVER - Call your local BRP dealership

705501507

Unavailable

30q

Seal | 4X4

705500265

$18.76

30r

PINION REAR COVER - Call your local BRP dealership

705501420

Unavailable

30s

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

30t

Drain Plug | 4X4

705500894

$11.49

30u

O-Ring | 4X4

705500267

$7.65

30v

Oil Seal

705501996

$21.99

40

Fill Level Plug | 4X4

705500504

$10.01

45

Copper Washer | 4X4

705500506

$0.45

50

Wheel Hub Ass'y

705501716

$105.99

55

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

80

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

90

Flat Washer M12

250200102

$2.11

130

Hex Flange Screw M12 X 16

250001039

$2.11

180

Flat Washer M12

250200102

$2.11

190

Hex. Flange Castellated Nut M18

232291413

$7.98

195

Cotter Pin

250400036

$2.11

230

LH Rear - Premium CV Axle | Includes 58a to 63a

705501485

$243.99

230a

CV Joint

705501776

$259.49

230b

Boot Kit

705501864

$42.49

230c

Oetiker Clamp, 82.1 mm

715900241

$10.33

230d

Oetiker Clamp, 27.3 mm

715900242

$10.33

230e

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

230f

Circlip

705501781

$6.50

230g

Joint Protector

705501842

$8.85

240

RH Rear - Premium CV Axle | Includes 64a to 69a

705501486

$243.99

240a

CV Joint

705501776

$259.49

240b

Boot Kit

705501864

$42.49

240c

Oetiker Clamp, 82.1 mm

715900241

$10.33

240d

Oetiker Clamp, 27.3 mm

715900242

$10.33

240e

PLUNGING JOINT - Call your local BRP dealership

705501780

Unavailable

240f

Circlip

705501781

$6.50

240g

Joint Protector

705501842

$8.85

245

Wear Ring

705501124

$7.90

250

Hex. Flange Screw M10 X 135

250001041

$5.59

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.68

320

Conical Spring Washer M18

250200171

$7.65

330

Polyurethane Hose 10000Mm Long

219704410

$56.99

340

Tie Wrap 368 mm

293750008

$1.04
