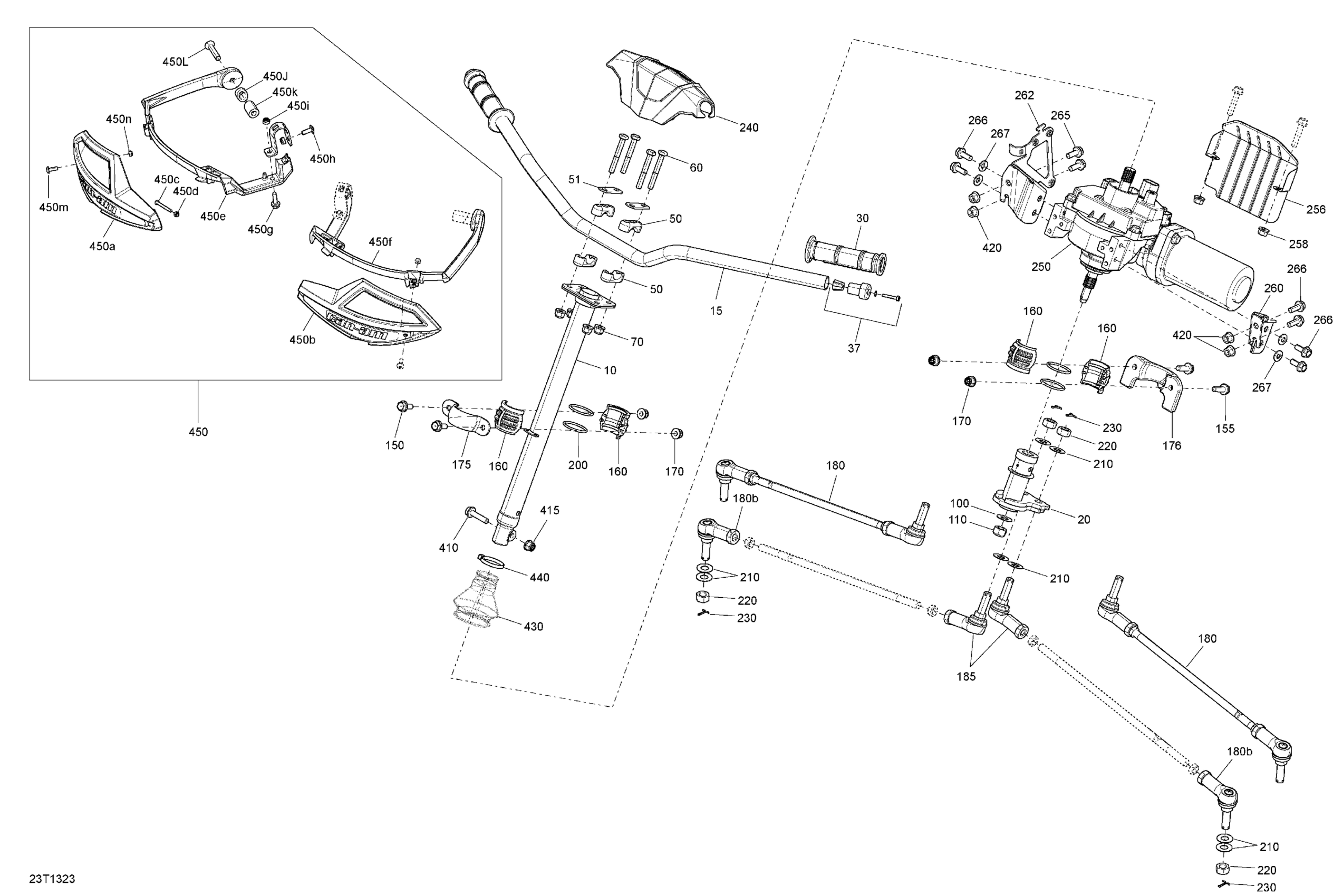

Can-Am Outlander 650EFI XMR, 2013 Steering Diagram

#

Description
Price

10

Kit Tube-Main.

703501137

$184.99

15

Black, Handle Bar

709401240

$69.99

20

Pitman Kit

703500812

$159.99

30

Handle Grip

709400493

$14.83

37

End Piece

709400449

$8.49

50

Steering Support

709400919

$22.49

51

Stiffner

709400509

$4.69

60

Hex. Screw M8 X 60

207086046

$2.85

70

Hex. Elastic Flange Nut M8

233281416

$1.48

100

Hardened Washer

706200281

$2.85

110

Hex. Flange Elastic Nut M12

250000047

$1.90

150

Hex. Flange Screw M8 X 20

207682044

$1.15

155

Hex. Flange Screw M8 X 25

207682544

$1.35

160

Spherical Half Bushing

709400783

$7.65

170

Hex. Flange Elastic Nut M8

233281414

$1.47

175

Upper Column Attachment

709400827

$1.09

176

Column Attachment

709401428

$38.99

180

Tie Rod Ass`y | Includes 15 to 17

703501038

$96.49

180b

LH Ball Joint

709402303

$36.99

185

RH Ball Joint

709402302

$36.99

200

O-Ring

293300068

$7.65

210

Hardened Washer

706200281

$2.85

220

Nut M12

250100099

$2.09

230

Cotter Pin

211400013

$0.37

240

Cover

709400939

$24.99

250

Power Steering

709401608

$1,010.49

256

HEAT DEFLECTOR - Call your local BRP dealership

709401005

Unavailable

258

Hex. Flange Nut M8

233081416

$1.15

260

Power Steering Module Bracket

709400848

$16.49

262

RH STEERING BRACKET - Call your local BRP dealership

709400994

Unavailable

265

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

267

Conical Spring Washer M8

234281474

$1.48

410

Hex. Flange Screw M8 X 35

207683544

$1.69

415

Hex. Flange Elastic Nut M8

233281414

$1.47

420

Hex. Flange Elastic Nut M8

233281414

$1.47

430

Bellows

709400674

$18.99

440

Tie-Rap 180 mm

414115200

$0.11

450

Not Available As Spare Part - Friction Washer

Unavailable

450a

RH AIR DEFLECTOR - Call your local BRP dealership

709400530

Unavailable

450b

LH AIR DEFLECTOR - Call your local BRP dealership

709400531

Unavailable

450c

Socket Head Screw M4 X 40 | X

205444086

$1.69

450d

Elastic Stop Nut M4

232541414

$0.58

450d

Air Deflector Support Kit | X

715001378

$138.49

450e

Air Deflector Support Kit | X

715001378

$138.49

450f

Air Deflector Support Kit | X

715001378

$138.49

450g

Hex. Flange Screw M6 X 20

207662044

$2.00

450h

Torx Screw M6 X 16

250000223

$2.11

450i

Hex. Elastic Stop Nut M6

232561600

$1.15

450j

Small Bracket | DS 650 X

709400161

$21.99

450k

Large Bracket | DS 650 X

709400162

$20.99

450l

Socket Head Screw | X

205384034

$6.49

450m

Torx Screw M5 X 14

250000742

$1.47

450n

Hex. Elastic Nut M5 | X

232551600

$1.15
