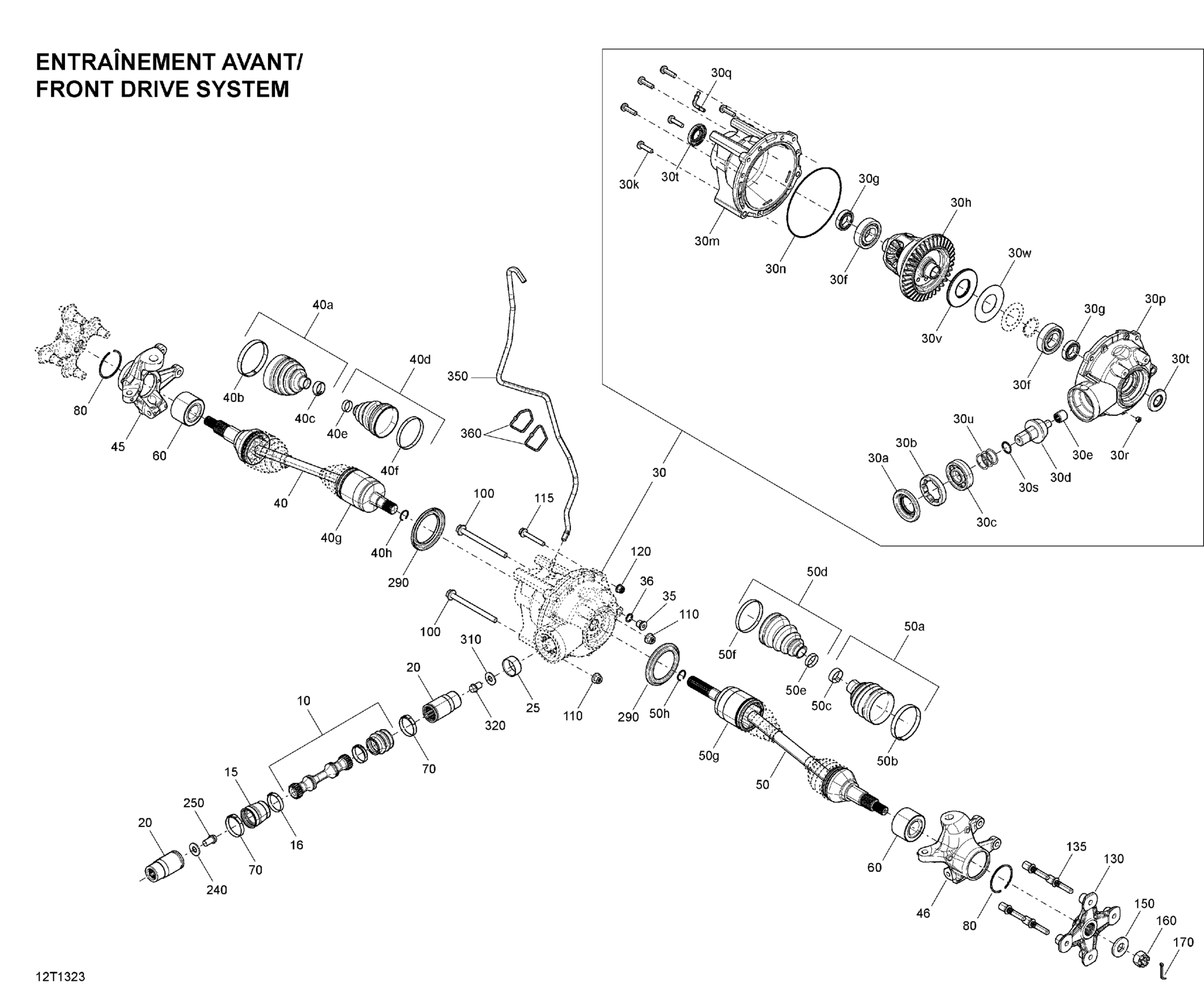

Can-Am Outlander 650EFI XMR, 2013 Drive System, Front Diagram

#

Description
Price

10

Propeller Shaft | Includes 1 to 2

705400913

$211.99

10a

Rubber Boot

715900118

$14.30

10b

Oetiker Gear Clamp 36.1MM

509000045

$8.29

10c

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

15

Rubber Boot

705401093

$5.00

16

Oetiker Gear Clamp

293650199

$9.69

20

Front Bushing Shaft Kit | 4X4

703500678

$114.99

25

Wear Ring | 4X4

705400036

$26.49

30

Front Differential | XT, XT-P, Includes 9 to 29

703500908

$1,789.99

30a

Oil Seal | 4X4

705401481

$19.49

30b

Nut | 4X4

705401603

$35.99

30c

Ball Bearing | 4X4

705500260

$31.99

30d

10 TEETH PINION - Call your local BRP dealership

705501588

Unavailable

30e

Needle Bearing | 4X4

705500261

$19.99

30f

Ball Bearing | 4X4

705401606

$51.99

30g

Ball Bearing | 4X4

293350044

$31.99

30h

DIFFERENTIAL KIT - Call your local BRP dealership

703500872

Unavailable

30k

Screw | 4X4

705401601

$10.49

30m

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

30n

Seal | 4X4

705500265

$18.76

30p

FRONT COVER - Call your local BRP dealership

705400761

Unavailable

30q

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

30r

Drain Plug | 4X4

705500894

$11.49

30s

O-Ring | 4X4

705500267

$7.65

30t

Gasket | 4X4

705401618

$18.49

30u

Pinion Gear Shim 1.67 mm

705502061

$18.99

30u

Pinion Gear Shim .022"

705500075

Unavailable

30u

Pinion Gear Shim

705501162

$16.49

30v

Shim | 4X4

705401604

$57.99

30w

Shim | 4X4

705401604

$57.99

35

Fill Level Plug | 4X4

705500504

$10.01

36

Copper Washer | 4X4

705500506

$0.45

40

Performance CV Axle - Front Left

705401704

$275.49

40a

Boot Kit, Wheel Side

705401354

$42.49

40b

Oetiker Clamp, Large

715900260

$10.33

40c

Oetiker Clamp, Small

715900261

$5.29

40d

Boot Kit, Différential Side

705401355

$42.49

40e

Oetiker Clamp, Small

715900261

$5.29

40f

Oetiker Clamp, Large

715900262

$10.33

40g

LH Plunging CV Joint

715900396

$259.49

40h

Circlip Joint | Not shown

705401349

$6.50

45

LH Knuckle

705403307

$179.99

46

RH Knuckle

705403308

$179.99

50

Performance CV Axle - Front Right

705401703

$275.49

50a

Boot Kit, Wheel Side

705401354

$42.49

50b

Oetiker Clamp, Large

715900260

$10.33

50c

Oetiker Clamp, Small

715900261

$5.29

50d

Boot Kit, Différential Side

705401355

$42.49

50e

Oetiker Clamp, Small

715900261

$5.29

50f

Oetiker Clamp, Large

715900262

$10.33

50g

RH Plunging CV Joint

715900395

$259.49

50h

Circlip Joint | Not shown

705401349

$6.50

60

Ball Bearing

293350150

$52.99

70

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

80

Circlip

293370019

$4.68

100

Hex. Flange Screw M10 X 125

230602546

$7.41

110

Hex. Flange Elastic Nut M10

233201436

$2.11

115

Hex. Flange Screw M8 X 55

207685544

$5.39

120

Hex. Flange Elastic Nut M8

233281414

$1.47

130

Wheel Hub Ass'y

705501716

$105.99

135

Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4

250300643

$5.03

150

Conical Spring Washer M18

250200171

$7.65

160

Hex. Flange Castellated Nut M18

232291413

$7.98

170

Cotter Pin

250400036

$2.11

240

Flat Washer M12

250200102

$2.11

250

Hex Flange Screw M12 X 20

250001042

$1.90

290

Wear Sleeve

705400780

$7.90

310

Flat Washer M12

250200102

$2.11

320

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

350

Polyurethane Hose 10000Mm Long

219704410

$56.99

360

Tie-Rap 180 mm

414115200

$0.11
